HYDRAULIC SYSTEM
L3301, L3901, L4701, WSM
8-S23
Bushings
1. Remove the bushings (3) and (4).
(When reassembling)
• When press-fitting new bushings (3), (4) with a press-fitting tool
(see page G-91) observe the dimensions described in the
figure.
• Apply transmission fluid to the hydraulic cylinder boss and
bushing.
• Press- fit the bushing so that each seam face upward.
9Y1211012HYS0022US0

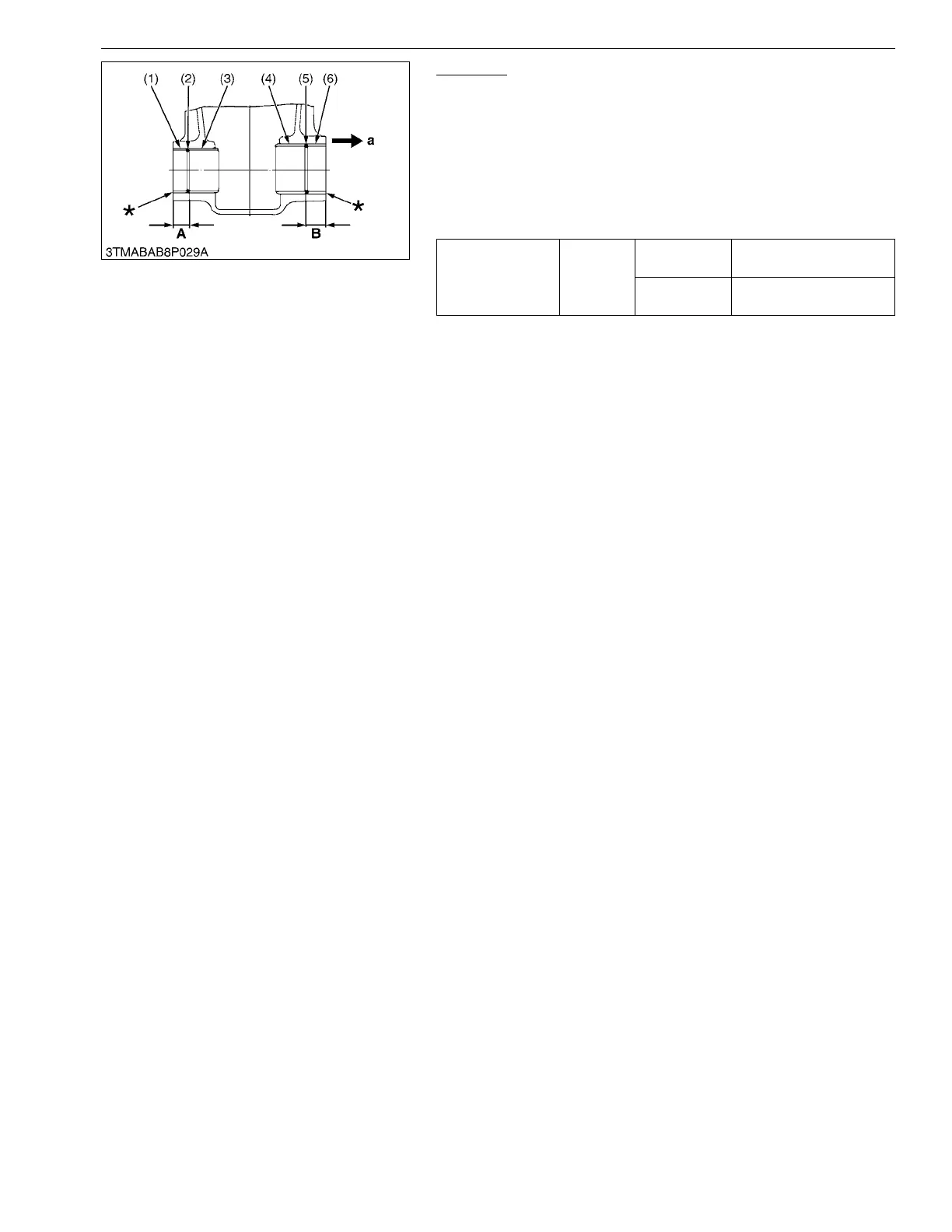

Press-fit location of
bushings
Factory
specifica-
tion
A
(Left side)
16.8 to 17.2 mm
0.662 to 0.677 in.
B
(Right side)
11.3 to 11.7 mm
0.445 to 0.460 in.
(1) Collar (Left)
(2) O-ring
(3) Bushing (Left)
(4) Bushing
(5) O-ring
(6) Collar (Right)
a: Right Side *Flush the End of
Collar with the End of Hydraulic
Cylinder Body.
To Next Page
