Addendum 8-8 Xerox DocuPrint P8ex Service Manual
6 Push the SIMM down until it snaps into place (Figure 4).
Make sure both metal clips on the connector are fastened and the two pins on the connector are
pushed through the holes on the SIMM (Figure 4).

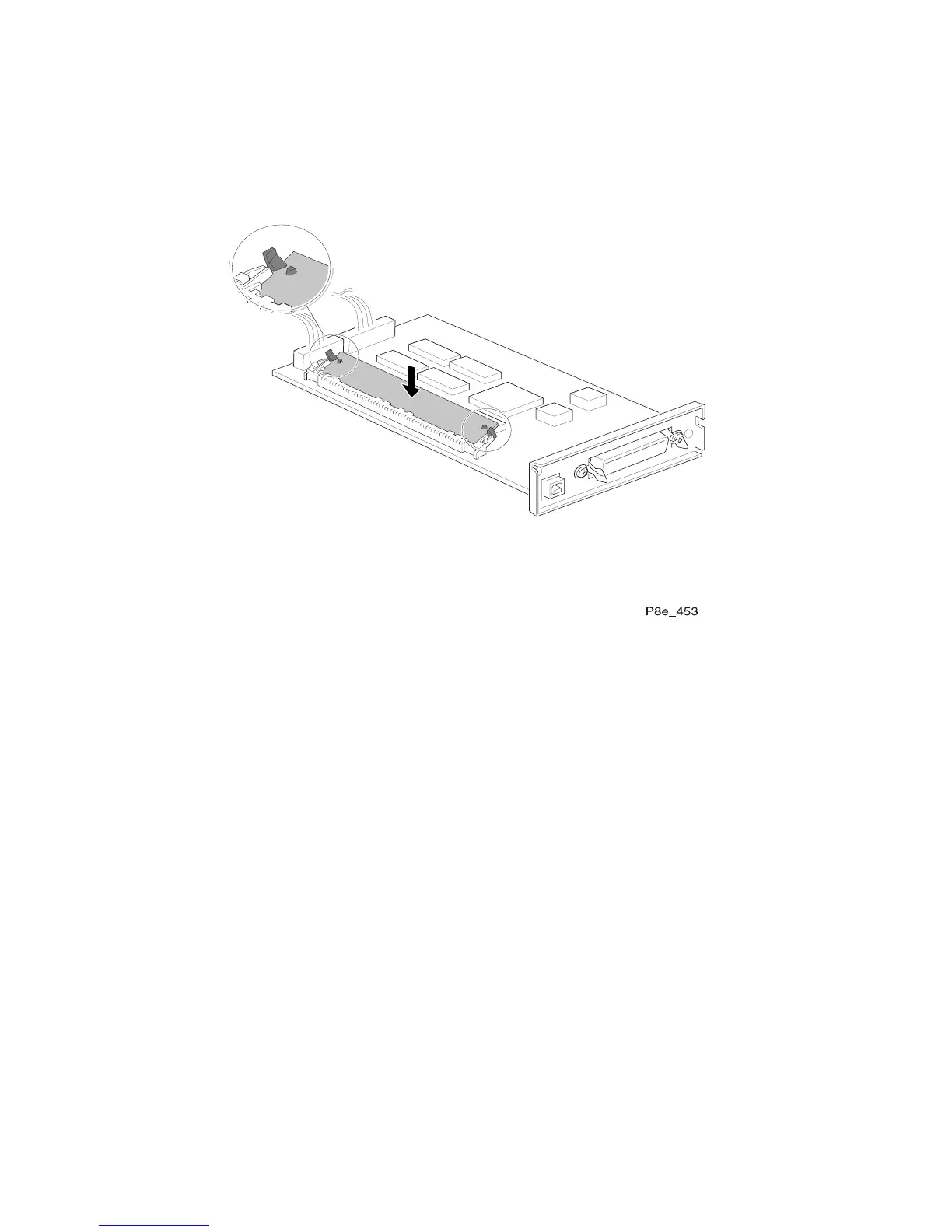

Figure 4. Installing the SIMM
