REP 1.4
Repairs and Adjustments
5. Remove power supply unit 1 and HVPS assembly, Figure 1.

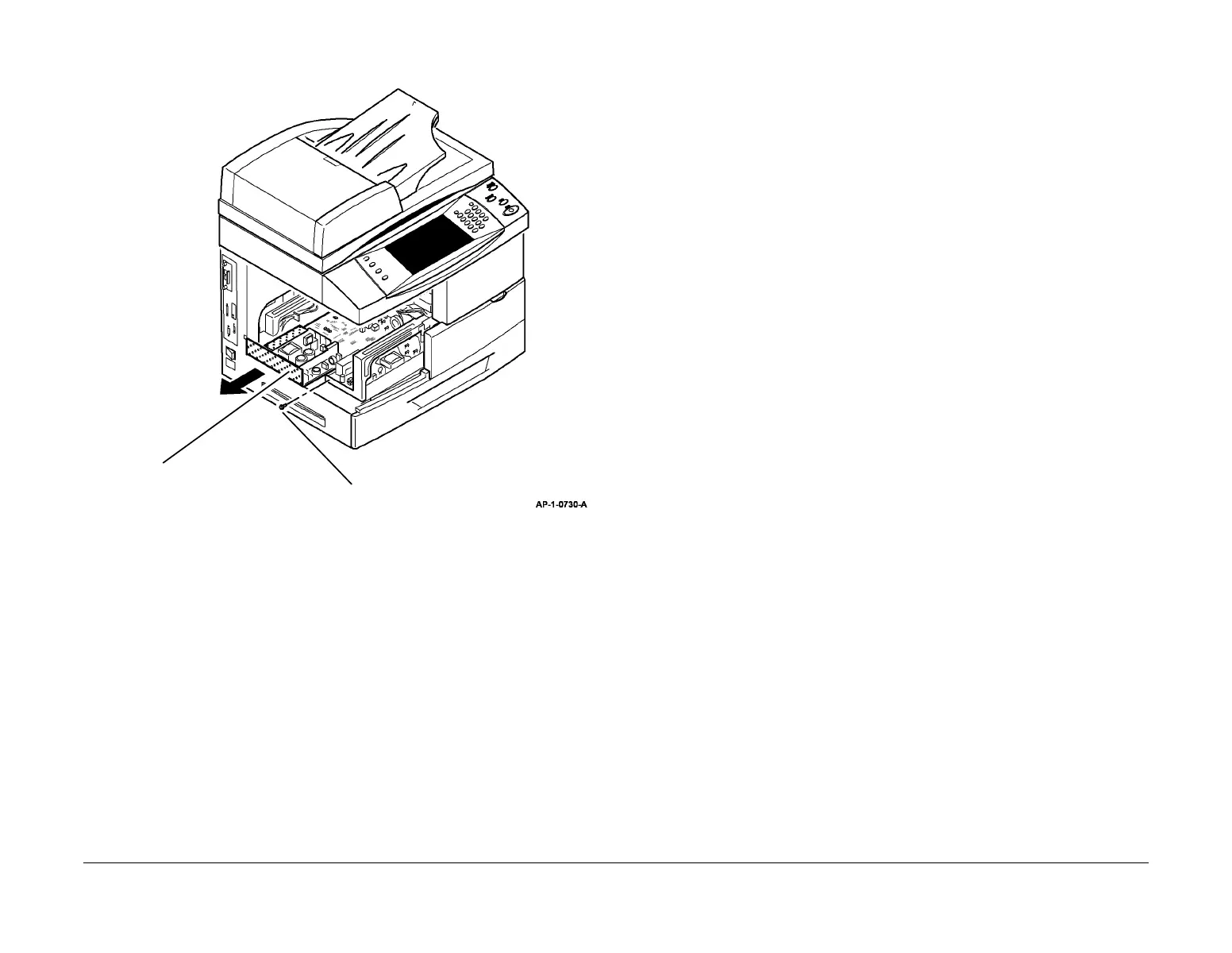

Figure 1 Assembly removal
6. Remove power supply unit 1 from the support cage, PL 1.15 Item 3.
7. Remove the HVPS from the support cage, PL 1.15 Item 2.
Replacement
Replacement is the reverse of the removal procedure.
2
Remove power supply unit
1 and HVPS assembly.
1
Remove 1 screw.
