Xerox WorkCentre 4265 Service Manual

January 2016
WorkCentre 4150/4250/4260/4265WorkCentre 4150/4250/4260WorkCentre
PL 5.55
Parts List

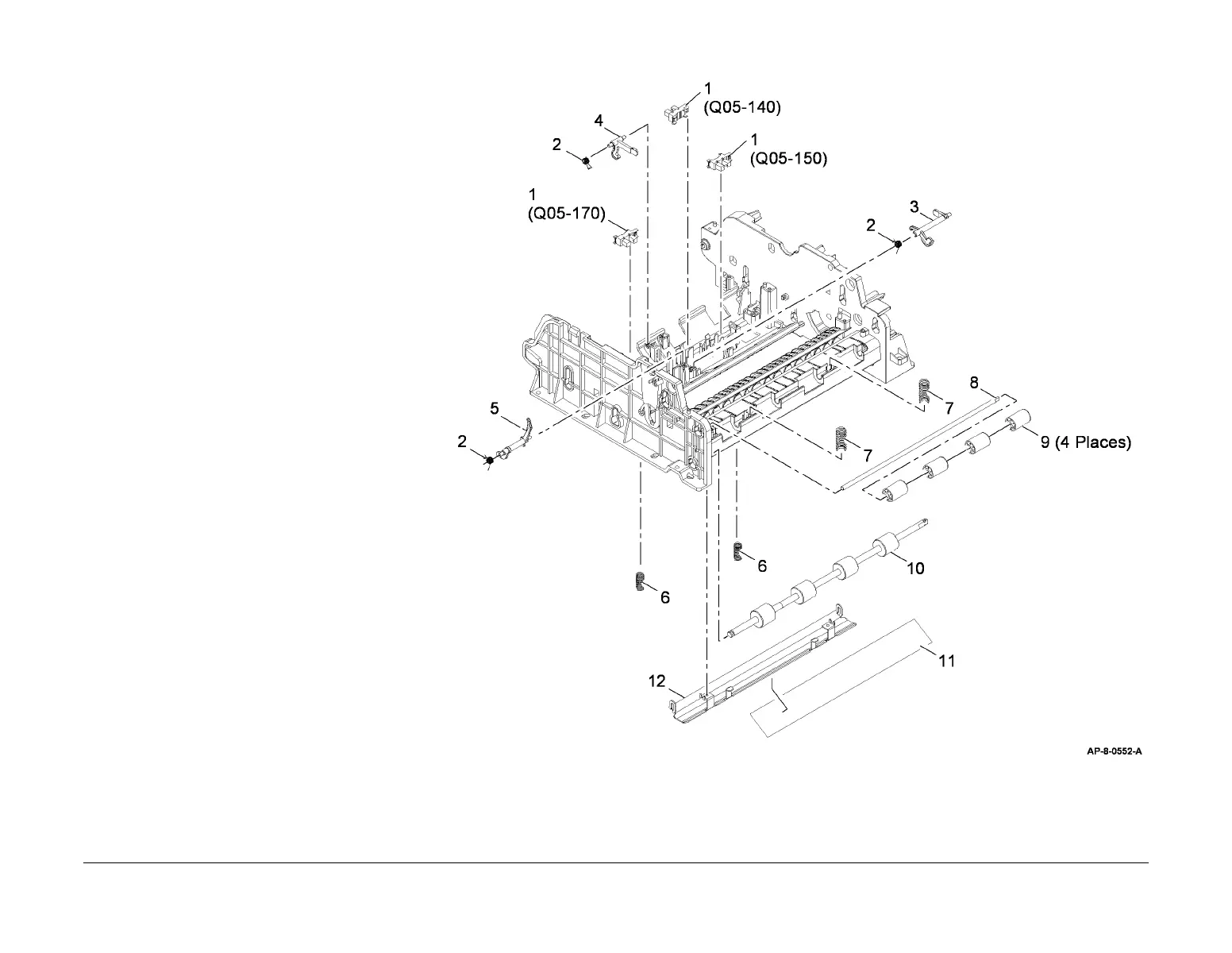

PL 5.55 DADF Assembly (7 of 7)
(4250/4260)
Item Part Description
1 130N01274 Duplex sensor (Q05-170), Scan
sensor (Q05-140), Gate sensor
(Q05-150)
2 – Actuator spring (P/O PL 5.30 Item
26)
3 – Gate sensor actuator (P/O PL 5.30
Item 26)
4 – Scan sensor actuator (P/O PL 5.30
Item 26)
5 – Duplex sensor actuator (P/O PL
5.30 Item 26)
6 – Exit roll spring (P/O PL 5.30 Item
26)
7 – Exit idler spring (P/O PL 5.30 Item
26)
8 – Exit idler shaft (P/O PL 5.30 Item
26)
9 – Upper exit roll idler (P/O PL 5.30
Item 26)
10 – Lower exit roll (P/O PL 5.30 Item
26)
11 – Cover (P/O PL 5.30 Item 26)
12 – Strip (P/O PL 5.30 Item 26)
