Xerox WorkCentre 4265 Service Manual

January 2016
WorkCentre 4150/4250/4260/4265WorkCentre 4150/4250/4260WorkCentre

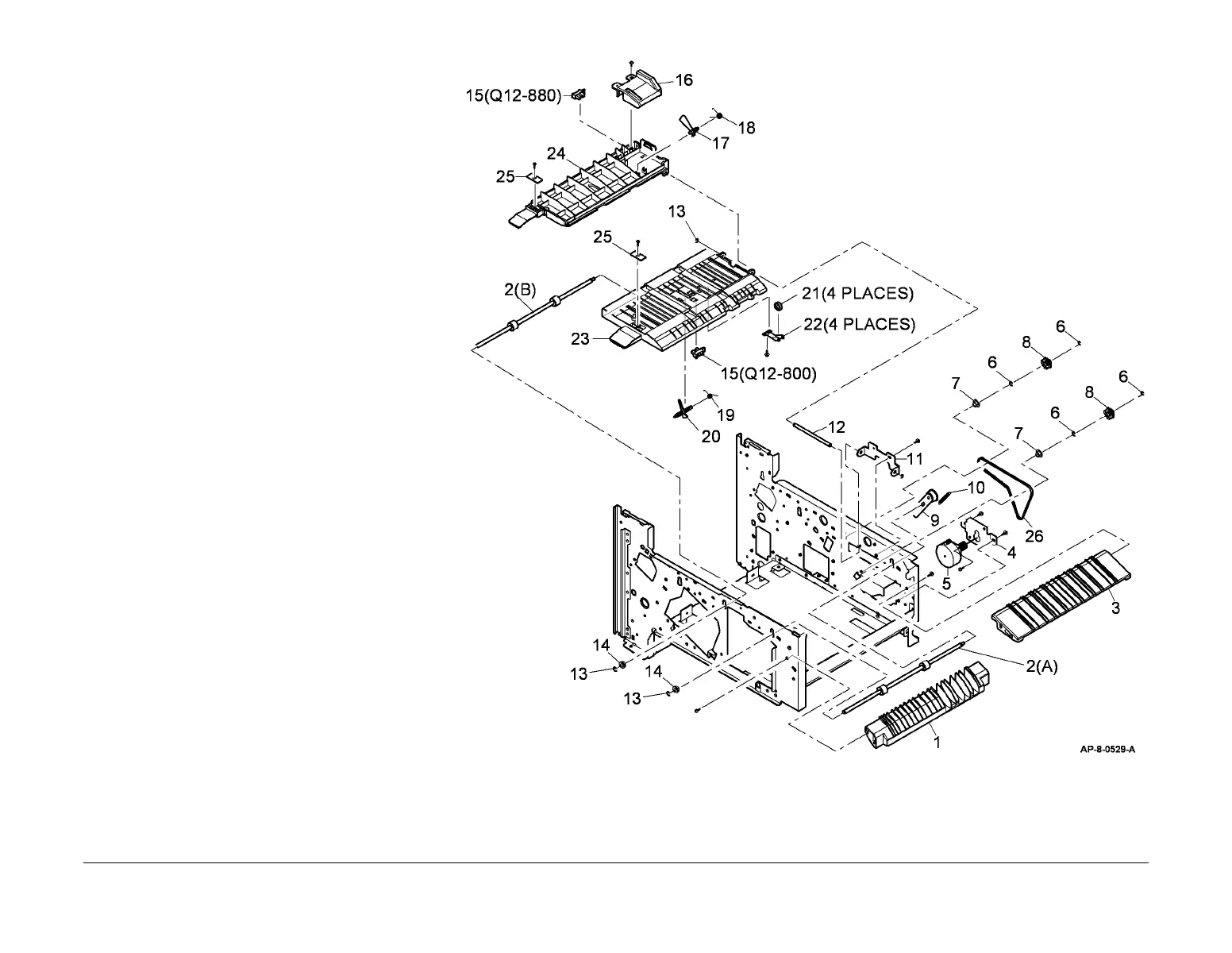

PL 12.15
Parts List
PL 12.15 Duplex and Entry
Components
Item Part Description
1 – Lower entry guide (P/O PL 12.50
Item 1)
2 022N02383 Entry roll (2A), Transport roll (2B)
(P/O PL 12.50 Item 1)
(4250/4260/4265)
3 – Upper entrance guide (P/O PL
12.50 Item 1)
4 – Entry motor bracket (P/O PL 12.50
Item 1)
5 127N07484 Entrance motor (MOT12-100)
6 – E-Clip (Not Spared)
7 – Bearing (P/O PL 12.50 Item 1)
8 020N00821 Pulley
9 – Belt tensioner (P/O PL 12.50 Item
1)
10 – Spring (P/O PL 12.50 Item 1)
11 – Hinge bracket (P/O PL 12.50 Item
1)
12 – Hinge shaft (P/O PL 12.50 Item 1)
13 – E-Clip (Not Spared)
14 – Bearing (P/O PL 12.50 Item 1)
15 130N01274 Duplex paper sensor (Q12-880),
Finisher entrance sensor
(Q12-800)
16 – Actuator cover (P/O PL 12.50 Item
1)
17 – Duplex actuator (P/O PL 12.50 Item
1)
18 – Spring (Duplex) (P/O PL 12.50
Item 1)
19 – Spring (Entry) (P/O PL 12.50 Item
1)
20 – Entry actuator (P/O PL 12.50 Item
1)
21 – Idler (P/O PL 12.50 Item 1)
22 – Leaf spring (P/O PL 12.50 Item 1)
23 – Document entry guide (P/O PL
12.50 Item 1)
24 – Duplex guide (P/O PL 12.50 Item 1)
25 – Magnet catch plate (P/O PL 12.50
Item 1)
26 023N01155 Drive belt

Xerox WorkCentre 4265 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax, Email
Print Resolution (Max)	Up to 1200 x 1200 dpi
Memory (Standard)	2 GB
Memory (Maximum)	2 GB
Connectivity	10/100/1000Base-T Ethernet, USB 2.0
Paper Output	250 sheets
Scan Resolution (Optical)	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Media Sizes Supported	Legal, Letter
Mobile Printing	Apple AirPrint
Duplex Printing	Automatic
Display	7-inch color touchscreen
