Xerox WorkCentre 4265 Service Manual

January 2016
WorkCentre 4150/4250/4260WorkCentre 4150/4250/4260/4265WorkCentre
PL 7.30
Parts List

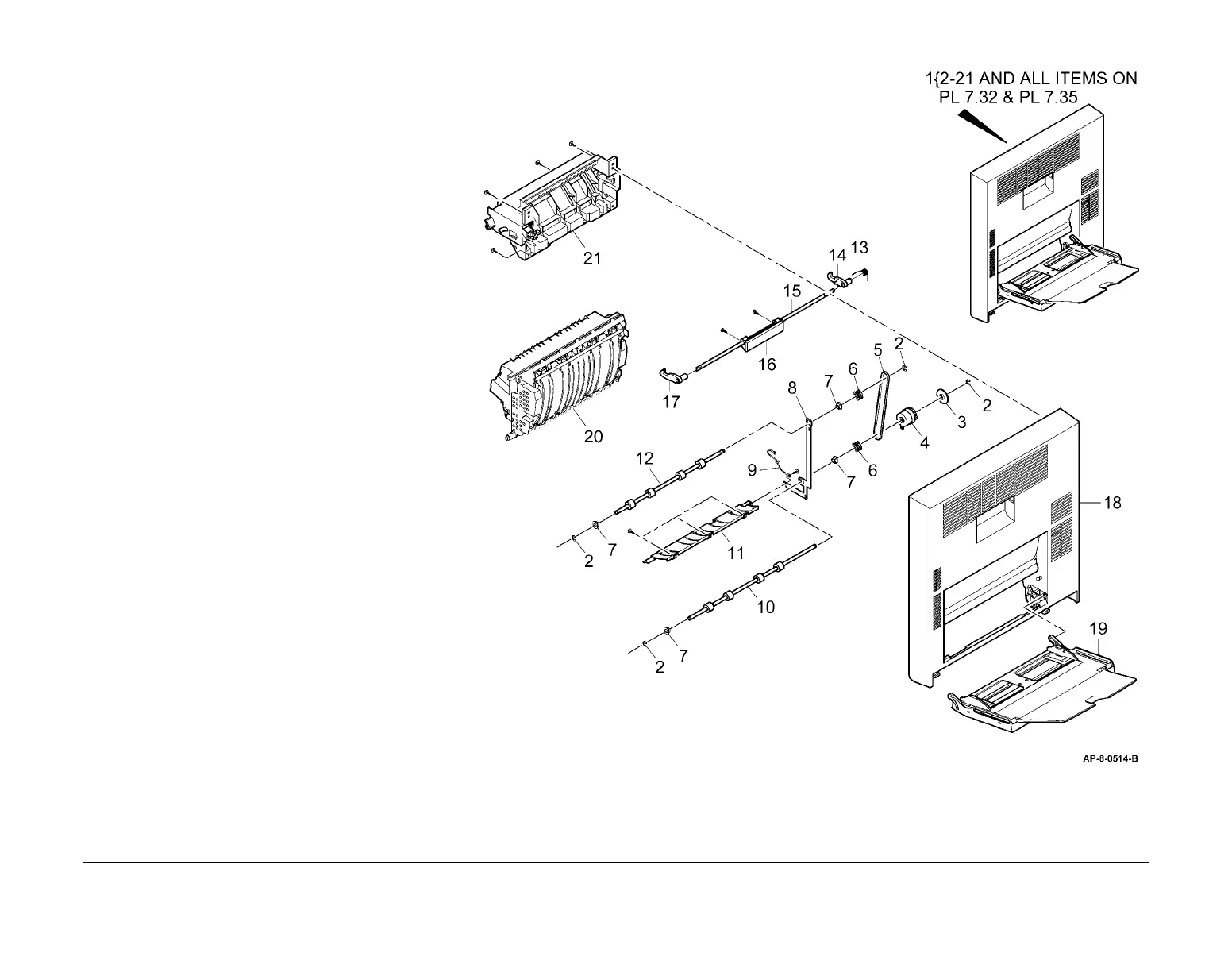

PL 7.30 Side Cover Assembly (1 of 3)
Item Part Description
1 002N02875 Side cover assembly
(4250/4260/4265) (REP 8.1)
– 002N02561 Side cover assembly (4150) (REP
8.1)
2 – E-Clip (Not Spared)
3– Collar (P/O PL 7.30 Item 1)
4 005N01088 Duplex feed clutch (CL08-860)
(4150)
– 005N01116 Duplex feed clutch (CL08-860)
(4250/4260/4265)
5 007N01530 Belt
6 020N00829 Duplex pulley
7 016N00294 Bearing
8 – Ground strip (P/O PL 7.30 Item 1)
9 – Ground harness (P/O PL 7.30 Item
1)
10 022N02274 Duplex feed roll 2
11 – Duplex guide (P/O PL 7.30 Item 1)
12 022N02275 Duplex feed roll 1
13 009N01366 Latch spring
14 003N01017 Rear latch
15 – Shaft (P/O PL 7.30 Item 1)
16 – Handle (P/O PL 7.30 Item 1)
17 003N01016 Latch front
18 – Side cover (P/O PL 7.30 Item 1)
19 – Bypass tray (REF: PL 7.40 Item 1)
20 – Duplex assembly (REF: PL 7.35
Item 1)
21 – Duplex side guide assembly (REF:
PL 7.32 Item 18, PL 7.32 Item 19)
NOTE: 1. If replacing the Front Door on the 4150, order new
configuration Front Door, PL28.10, Item 2. 2. If only the
Duplex Exit Gate is damaged on the Duplex Gude Assy,
order PL7.32, Item 7, and remove the Extension Fingers.

Xerox WorkCentre 4265 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax, Email
Print Resolution (Max)	Up to 1200 x 1200 dpi
Memory (Standard)	2 GB
Memory (Maximum)	2 GB
Connectivity	10/100/1000Base-T Ethernet, USB 2.0
Paper Output	250 sheets
Scan Resolution (Optical)	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Media Sizes Supported	Legal, Letter
Mobile Printing	Apple AirPrint
Duplex Printing	Automatic
Display	7-inch color touchscreen
