Xerox WorkCentre 4265 Service Manual

January 2016
WorkCentre 4150/4250/4260/4265WorkCentre 4150/4250/4260WorkCentre
PL 5.10
Parts List

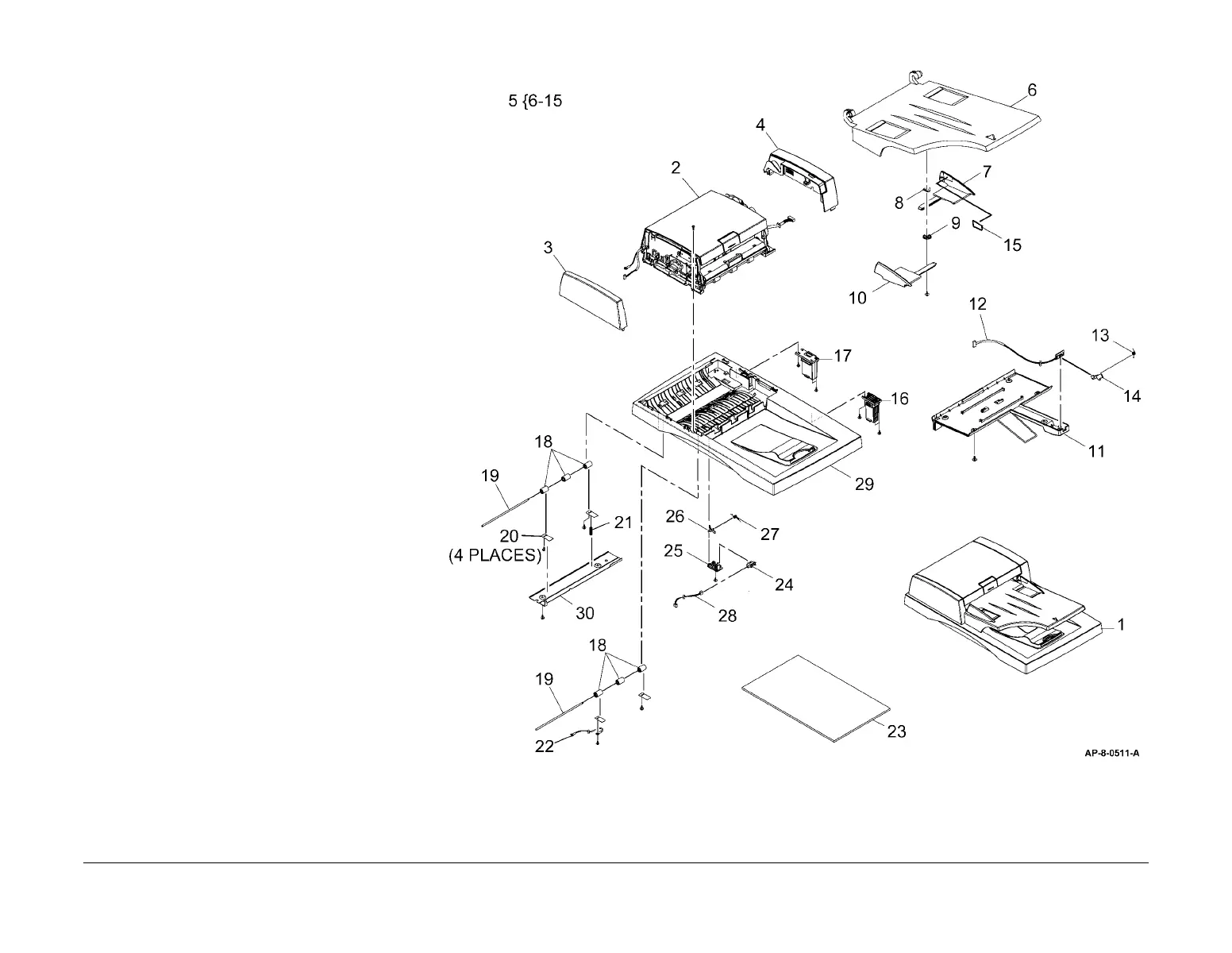

PL 5.10 DADF Assembly (1 of 4)
(4150)
Item Part Description
1 002N02558 DADF assembly (REP 5.1), (ADJ
5.1)
2 022N02280 Document transport assembly
(REP 5.1)
3 – Front cover (P/O PL 5.10 Item 1)
(REP 5.1)
4 – Rear cover (P/O PL 5.10 Item 1)
(REP 5.1)
5 050N00494 Input tray assembly (REP 5.1)
6 – Stacker tray (P/O PL 5.10 Item 5)
7 – Document guide left (P/O PL 5.10
Item 5)
8– Washer (P/O PL 5.10 Item 5)
9 007N01525 Pinion gear
10 – Document guide right (P/O PL 5.10
Item 5)
11 – Lower cover (P/O PL 5.10 Item 5)
12 140N62867 Paper length sensor (Q05-120)
13 – Spring (P/O PL 5.10 Item 5)
14 – Actuator (P/O PL 5.10 Item 5)
15 091N80242 Max fill label
16 003N00967 Right counterbalance
17 003N01004 Left counterbalance
18 – Idle roll (P/O PL 5.10 Item 1)
19 – Idle shaft (P/O PL 5.10 Item 1)
20 – Retaining plate (P/O PL 5.10 Item
1)
21 – Spring (P/O PL 5.10 Item 1)
22 – Ground harness (P/O PL 5.10 Item
1)
23 025N00081 Document pad
24 130N01274 Gate sensor (Q05-150)
25 – Actuator cradle (P/O PL 5.10 Item
1)
26 – Actuator (P/O PL 5.10 Item 1)
27 – Spring (P/O PL 5.10 Item 1)
28 – Sensor harness (P/O PL 5.10 Item
1)
29 – Platen cover (P/O PL 5.10 Item 1)
30 – Idler cover (P/O PL 5.10 Item 1)

Xerox WorkCentre 4265 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax, Email
Print Resolution (Max)	Up to 1200 x 1200 dpi
Memory (Standard)	2 GB
Memory (Maximum)	2 GB
Connectivity	10/100/1000Base-T Ethernet, USB 2.0
Paper Output	250 sheets
Scan Resolution (Optical)	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Media Sizes Supported	Legal, Letter
Mobile Printing	Apple AirPrint
Duplex Printing	Automatic
Display	7-inch color touchscreen
