4-168
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 12.3, REP 12.4
Repairs and Adjustments
10. Remove the Exit Roll (Figure 2).

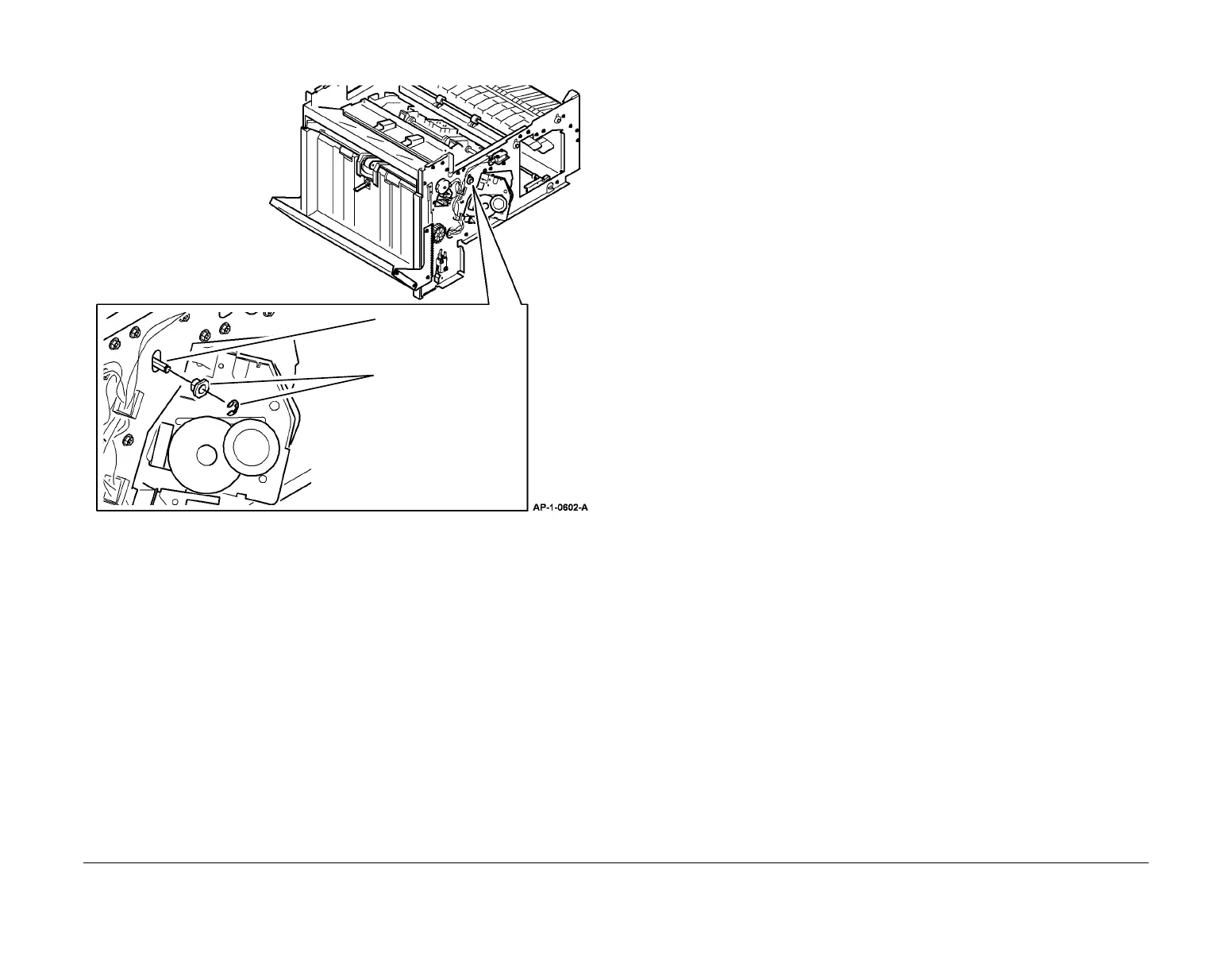

Figure 2 Removing the Exit Roll
11. If necessary, remove the Paper Detector Sensor, PL 12.20 Item 25.
Replacement
Replacement is the reverse of the removal procedure.
REP 12.4 Finisher Covers
Parts List on PL 12.10
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
1. Remove the Finisher, REP 12.1.
2. Remove the Staple Cartridge, PL 12.35 Item 4.
3. Remove the Top Infill Cover, PL 12.10 Item 5.
1
Remove the E-clip
then the nylon bearing.
2
Remove the Exit Roll.
