Xerox WorkCentre 4265 Service Manual

January 2016
WorkCentre 4150/4250/4260WorkCentre 4150/4250/4260/4265WorkCentre
PL 10.15
Parts List

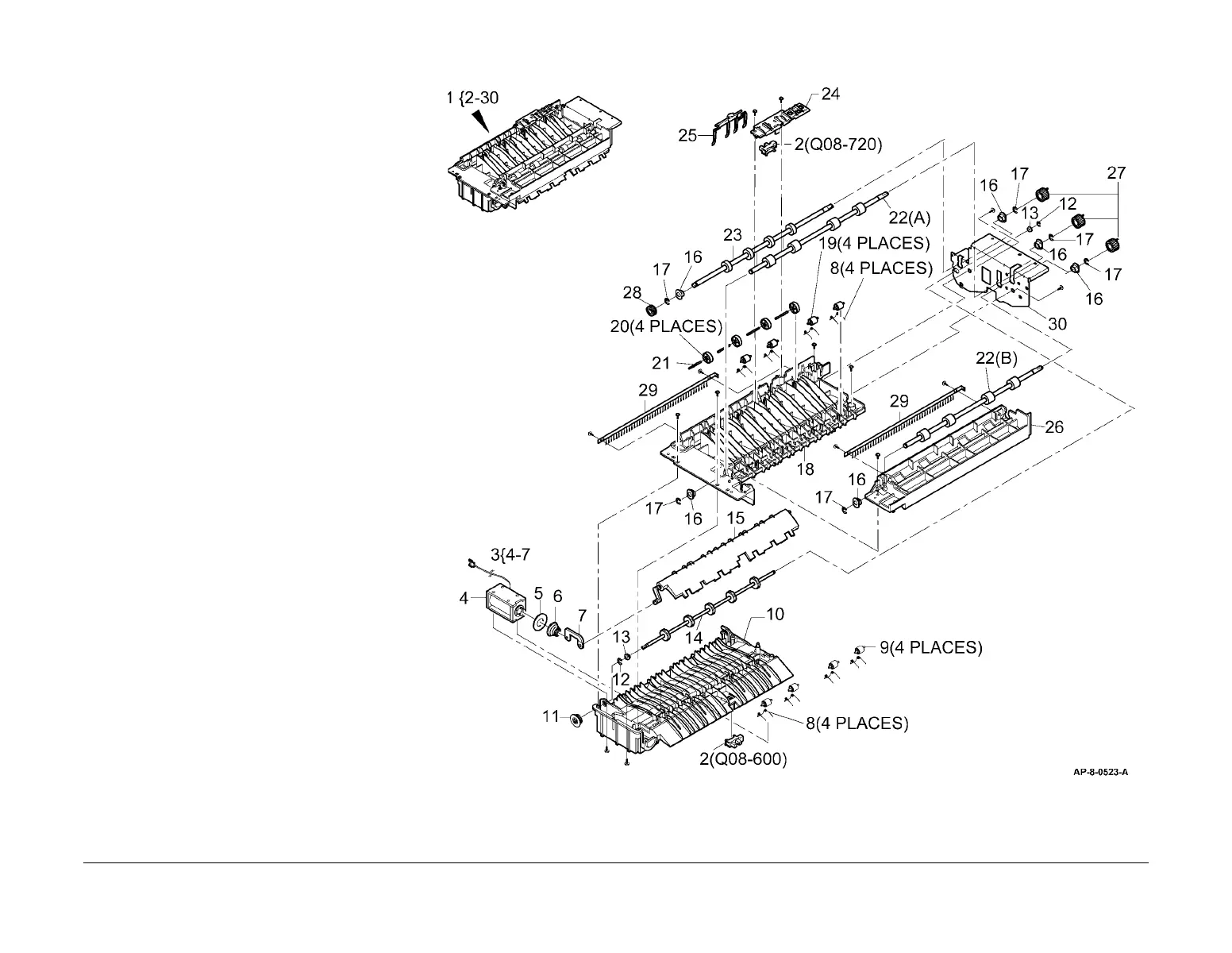

PL 10.15 Exit Assembly
Item Part Description
1 002N02802 Exit assembly (4250/4260/4265)
– 002N02554 Exit assembly (4150) (REP 10.2)
2 130N01601 Out bin full sensor (Q08-720), Exit
sensor (Q08-600) (Alternate)
– 130N01574 Out bin full sensor (Q08-720), Exit
sensor (Q08-600) (Alternate)
– 130N01274 Out bin full sensor (Q08-720), Exit
sensor (Q08-600)
3 121N01130 Duplex gate solenoid assembly
(REP 10.3)
4 – Duplex gate solenoid (SOL 08-870)
(P/O PL 10.15 Item 3)
5 095N00382 Washer
6 – Spring (P/O PL 10.15 Item 3)
7 – Actuator (P/O PL 10.15 Item 3)
8 – Spring (P/O PL 10.15 Item 1)
9 – Duplex roll idler (P/O PL 10.15 Item
1)
10 – Lower exit guide (P/O PL 10.15
Item 1)
11 007N01555 Gear
12 – E-Clip (Not Spared)
13 – Bush (P/O PL 10.15 Item 1)
14 – Lower exit roll (P/O PL 10.15 Item
1)
15 050N00499 Duplex gate (REP 10.3)
16 – Bush (P/O PL 10.15 Item 1)
17 – E-Clip (Not Spared)
18 – Upper exit guide (P/O PL 10.15
Item 1)
19 – Transport roll idler (P/O PL 10.15
Item 1)
20 022N02272 Duplex roll idler
21 – Pin (P/O PL 10.15 Item 1)
22 – Transport roll (22A), Duplex roll
(22B) (P/O PL 10.15 Item 1)
23 – Upper exit roller (P/O PL 10.15 Item
1)
24 – Sensor cover (P/O PL 10.15 Item 1)
25 017N00266 Actuator
26 – Exit guide (P/O PL 10.15 Item 1)
27 007N01559 Gear
28 007N01513 Gear
29 121N01179 Static eliminator
30 – Exit assembly bracket (Not Spared)
NOTE: Alternate part number for Item 2, Out bin Full Sensor
are:130N01601 and 130N01574.

Xerox WorkCentre 4265 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax, Email
Print Resolution (Max)	Up to 1200 x 1200 dpi
Memory (Standard)	2 GB
Memory (Maximum)	2 GB
Connectivity	10/100/1000Base-T Ethernet, USB 2.0
Paper Output	250 sheets
Scan Resolution (Optical)	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Media Sizes Supported	Legal, Letter
Mobile Printing	Apple AirPrint
Duplex Printing	Automatic
Display	7-inch color touchscreen
