Xerox WorkCentre 4265 Service Manual

January 2016
4-143
WorkCentre 4150/4250/4260WorkCentre WorkCentre 4150/4250/42604150/
REP 9.4, REP 9.5
Repairs and Adjustments
Replacement
Replacement is the reverse of the removal procedure.
REP 9.5 Toner Cartridge Connector (4250/4260/4265)
Parts List on PL 4.15
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
1. Remove the Main Drive Assembly (REP 4.3).
2. Remove the Toner Cartridge CRUM connector (Figure 1).

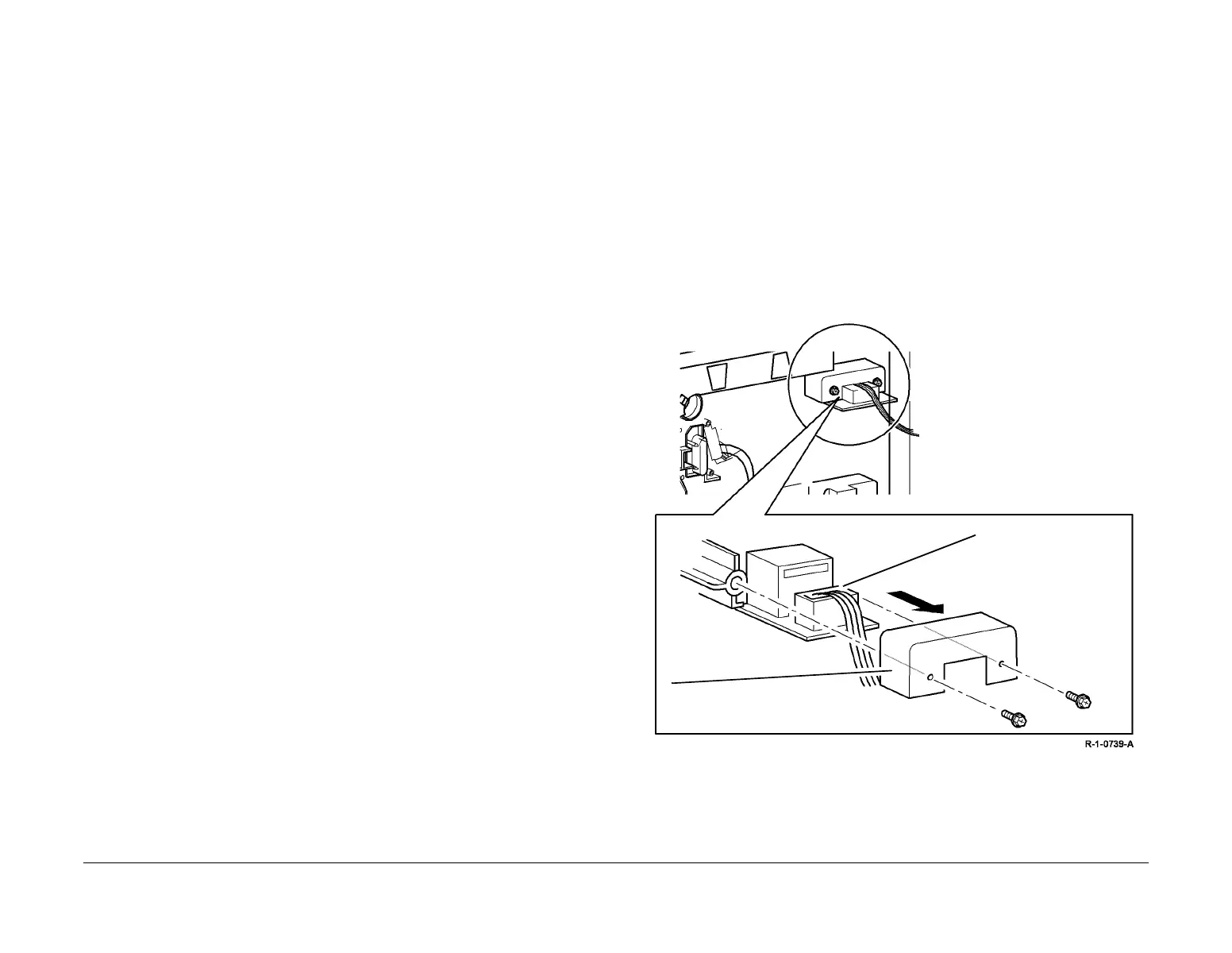

Figure 1 Removing the Toner Cartridge CRUM Connector
Replacement
Reinstallation is the reverse of the Removal procedure.
3
Remove the Toner Cartridge
CRUM connector.
2
Disconnect the
connector.
1
Remove 2 screws, then the
connector cover.

Xerox WorkCentre 4265 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax, Email
Print Resolution (Max)	Up to 1200 x 1200 dpi
Memory (Standard)	2 GB
Memory (Maximum)	2 GB
Connectivity	10/100/1000Base-T Ethernet, USB 2.0
Paper Output	250 sheets
Scan Resolution (Optical)	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Media Sizes Supported	Legal, Letter
Mobile Printing	Apple AirPrint
Duplex Printing	Automatic
Display	7-inch color touchscreen
