Xerox WorkCentre 4265 Service Manual

January 2016
WorkCentre 4150/4250/4260WorkCentre 4150/4250/4260/4265WorkCentre
PL 10.25
Parts List

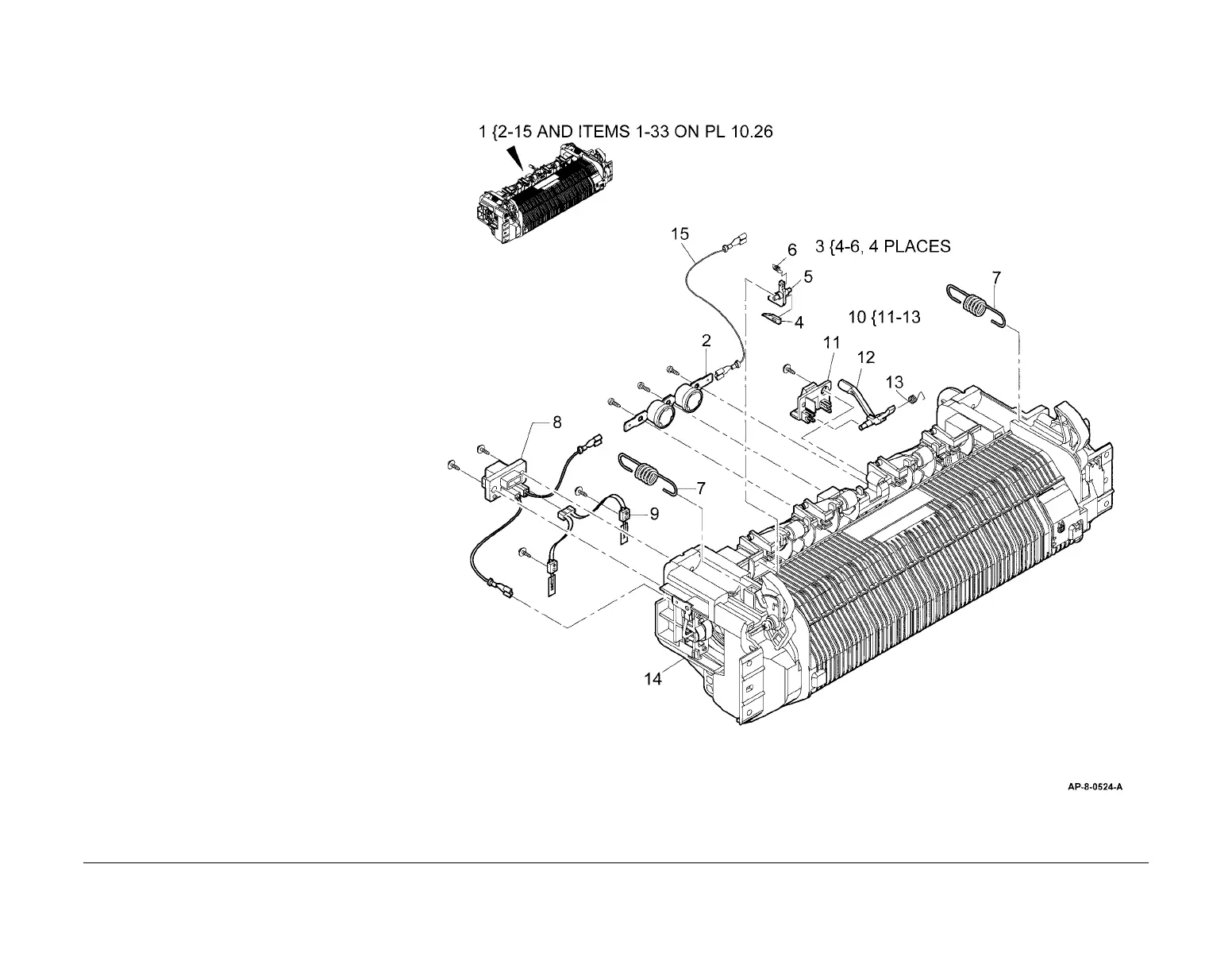

PL 10.25 Fuser (1 of 2) (4150)
Item Part Description
1 126N00321 Fuser assembly (See Note 1)
(REP 10.1)
2 130N01463 Thermostat assembly
3 031N00217 Stripper finger assembly
4 – Stripper finger (P/O PL 10.25 Item
3)
5 – Finger holder (P/O PL 10.25 Item 3)
6 – Spring (P/O PL 10.25 Item 3)
7 009N01595 Spring (REP 10.5)
8 152N11708 Connector
9 130N01462 Thermistor assembly
10 120N00534 Fuser exit sensor actuator
assembly
11 – Actuator cradle (P/O PL 10.25 Item
10)
12 – Exit sensor actuator (P/O PL 10.25
Item 10)
13 – Spring (P/O PL 10.25 Item 10)
14 – Fusing unit (P/O PL 10.25 Item 1)
15 152N11709 AC Fuser harness
NOTE: 1. HFSI. To reset the HFSI count, go to GP 16.
NOTE: 2. The fuser exit sensor is located on PL 10.15 Item
2.
