Xerox WorkCentre 4265 Service Manual

January 2016
4-201
WorkCentre 4150/4250/4260WorkCentre WorkCentre 4150/4250/42604150/
ADJ 8.1
Repairs and Adjustments
ADJ 8.1 Lead Edge Registration Adjustment
Purpose
To measure and adjust lead edge image to paper registration.
Check
NOTE: Both the Check and the Adjustment use an internal test pattern. Both are performed in
diagnostics.
Check the lead edge registration (top edge of portrait A4 or 8.5x11 inch). Perform the following:
1. Enter dC606 Internal Print Test Patterns.
2. Select test pattern 7.
3. Select Features. For simplex lead edge check, select 1 Sided. For duplex lead edge
check select, 2 Sided.
4. Select the tray. Select Start Test.
NOTE: Simplex copies exit face down. Duplex copies exit side 1 face down (side 2 face
up).
5. Measure the distance between the lead edge of the paper and the ABC line on the printed
test pattern, Figure 1.

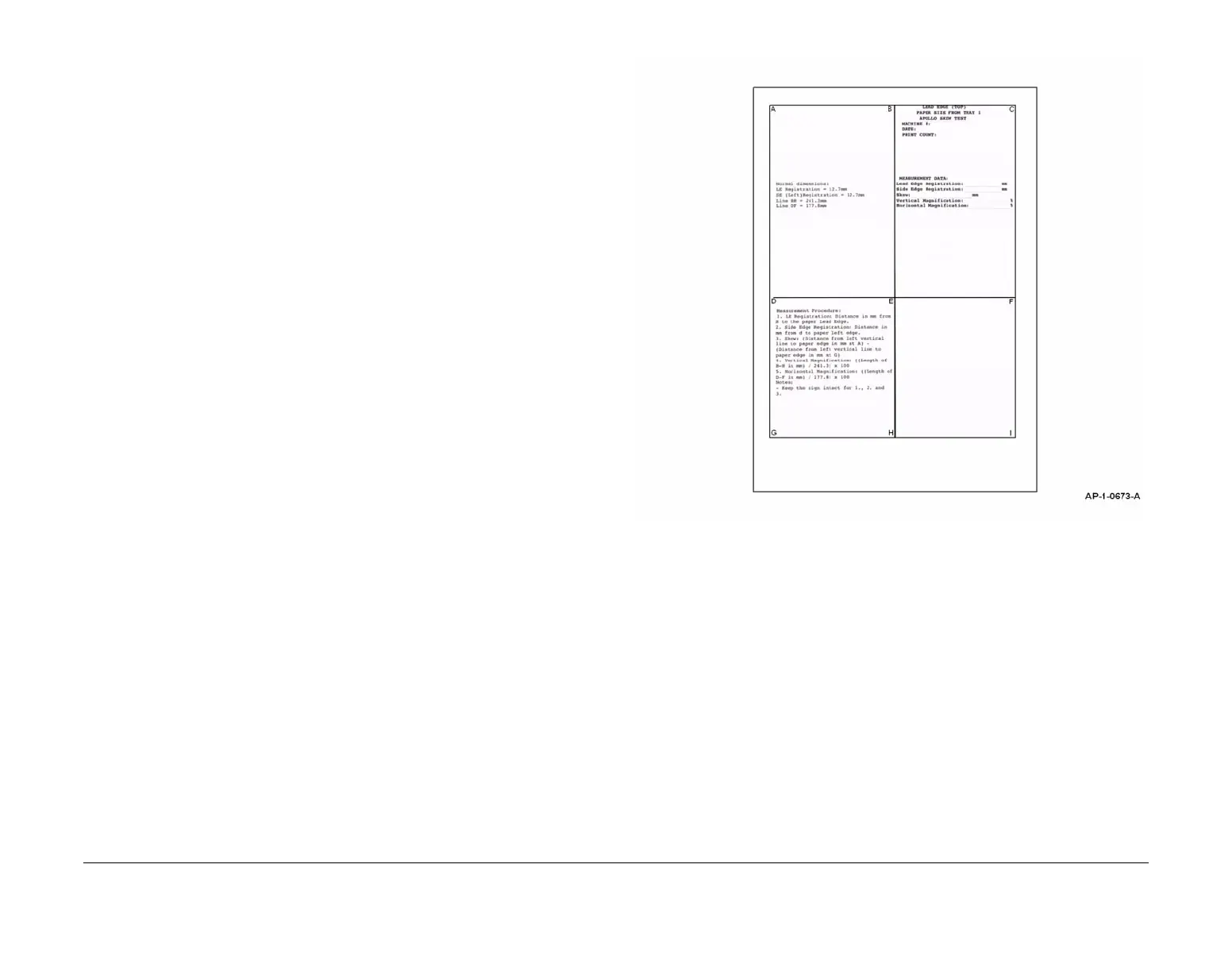

Figure 1 Test pattern 7
6. If the distance measured is not 12.7mm (0.5 inch) +/-0.3mm (0.01 inches), perform the
Adjustment.

Xerox WorkCentre 4265 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax, Email
Print Resolution (Max)	Up to 1200 x 1200 dpi
Memory (Standard)	2 GB
Memory (Maximum)	2 GB
Connectivity	10/100/1000Base-T Ethernet, USB 2.0
Paper Output	250 sheets
Scan Resolution (Optical)	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Media Sizes Supported	Legal, Letter
Mobile Printing	Apple AirPrint
Duplex Printing	Automatic
Display	7-inch color touchscreen
