Xerox WorkCentre 4265 Service Manual

January 2016
WorkCentre 4150/4250/4260/4265WorkCentre 4150/4250/4260WorkCentre
PL 4.20
Parts List

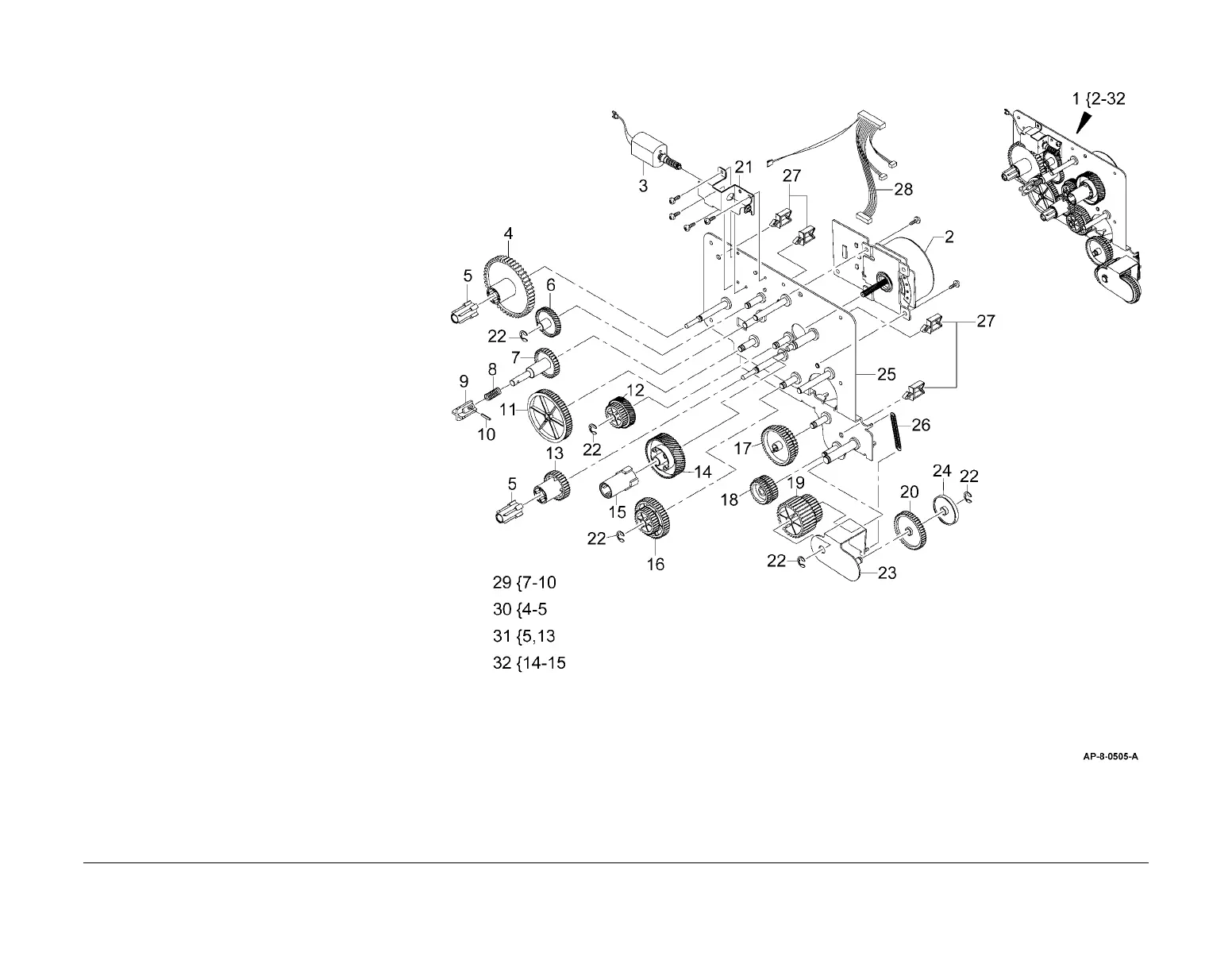

PL 4.20 Drives Assembly (4150)
Item Part Description
1 002N02556 Main drive assembly (REP 4.1)
2 127N07489 Main BLDC motor (MOT 04-100)
3 007N01515 Toner dispense motor (MOT
09-600) (REP 9.1)
4 – Agitator gear (P/O PL 4.20 Item 30)
5 – Coupling (P/O PL 4.20 Item 30, PL
4.20 Item 31)
6 007N01500 Idler gear
7 – Dispense idler gear (P/O PL 4.20
Item 29)
8 – Spring (P/O PL 4.20 Item 29)
9 – Toner coupling (P/O PL 4.20 Item
29)
10 – Pin (P/O PL 4.20 Item 29)
11 007N01501 Agitator Idler gear
12 007N01502 Registration Idler gear (A)
13 – Mixer gear (P/O PL 4.20 Item 31)
14 – Xerographic module base gear
(P/O PL 4.20 Item 32)
15 – Coupling (P/O PL 4.20 Item 32)
16 007N01505 Registration Idler gear (B)
17 007N01506 Pickup idler gear (A)
18 007N01507 Bypass idler gear (A)
19 007N01508 Bypass idler gear (B)
20 007N01509 Duplex idler gear
21 – Bracket (P/O PL 4.20 Item 1)
22 – E-Clip (Not Spared)
23 – Swing bracket (P/O PL 4.20 Item 1)
24 – Collar (P/O PL 4.20 Item 1)
25 – Main bracket (P/O PL 4.20 Item 1)
26 – Spring (P/O PL 4.20 Item 1)
27 – Cable clamp (Not Spared)
28 – Harness (P/O PL 4.20 Item 1)
29 007N01516 Toner dispense gear assembly
30 007N01499 Agitator gear assembly
31 007N01503 Mixer gear assembly
32 007N01558 Xerographic module base gear
assembly

Xerox WorkCentre 4265 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax, Email
Print Resolution (Max)	Up to 1200 x 1200 dpi
Memory (Standard)	2 GB
Memory (Maximum)	2 GB
Connectivity	10/100/1000Base-T Ethernet, USB 2.0
Paper Output	250 sheets
Scan Resolution (Optical)	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Media Sizes Supported	Legal, Letter
Mobile Printing	Apple AirPrint
Duplex Printing	Automatic
Display	7-inch color touchscreen
