Xerox WorkCentre 4265 Service Manual

January 2016
4-139
WorkCentre 4150/4250/4260WorkCentre WorkCentre 4150/4250/42604150/
REP 9.1
Repairs and Adjustments
REP 9.1 Toner Dispense Motor
Parts List on (4150) PL 4.20 and (4250/4260/4265) PL 4.25
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
NOTE: The 4150 and 4250/4260/4265 procedures are similar. The 4150 is shown in Figure 1.
1. Remove the main drive assembly, (4150) REP 4.1 or (4250/4260/4265) REP 4.3.
NOTE: The Toner Dispense Motor is located on the inside of the Main Drive Assembly.
2. Remove the toner dispense motor, Figure 1.

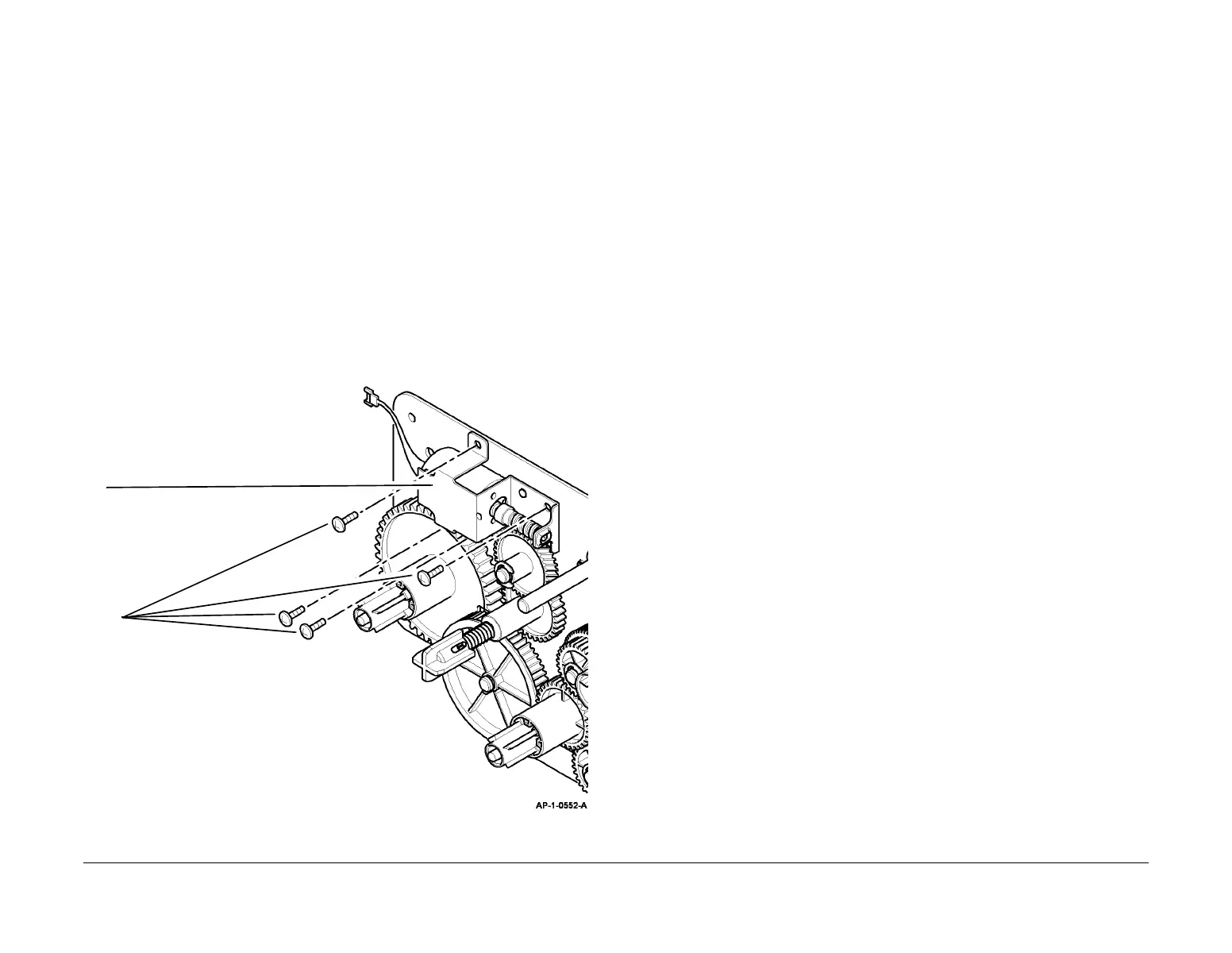

Figure 1 Toner dispense motor removal
Replacement
Replacement is the reverse of the removal procedure.
1
Remove 4 screws.
2
Remove the motor
and bracket.
3
Remove the motor from
the bracket.
