Xerox WorkCentre 4265 Service Manual

January 2016
WorkCentre 4150/4250/4260WorkCentre 4150/4250/4260/4265WorkCentre
PL 7.65
Parts List

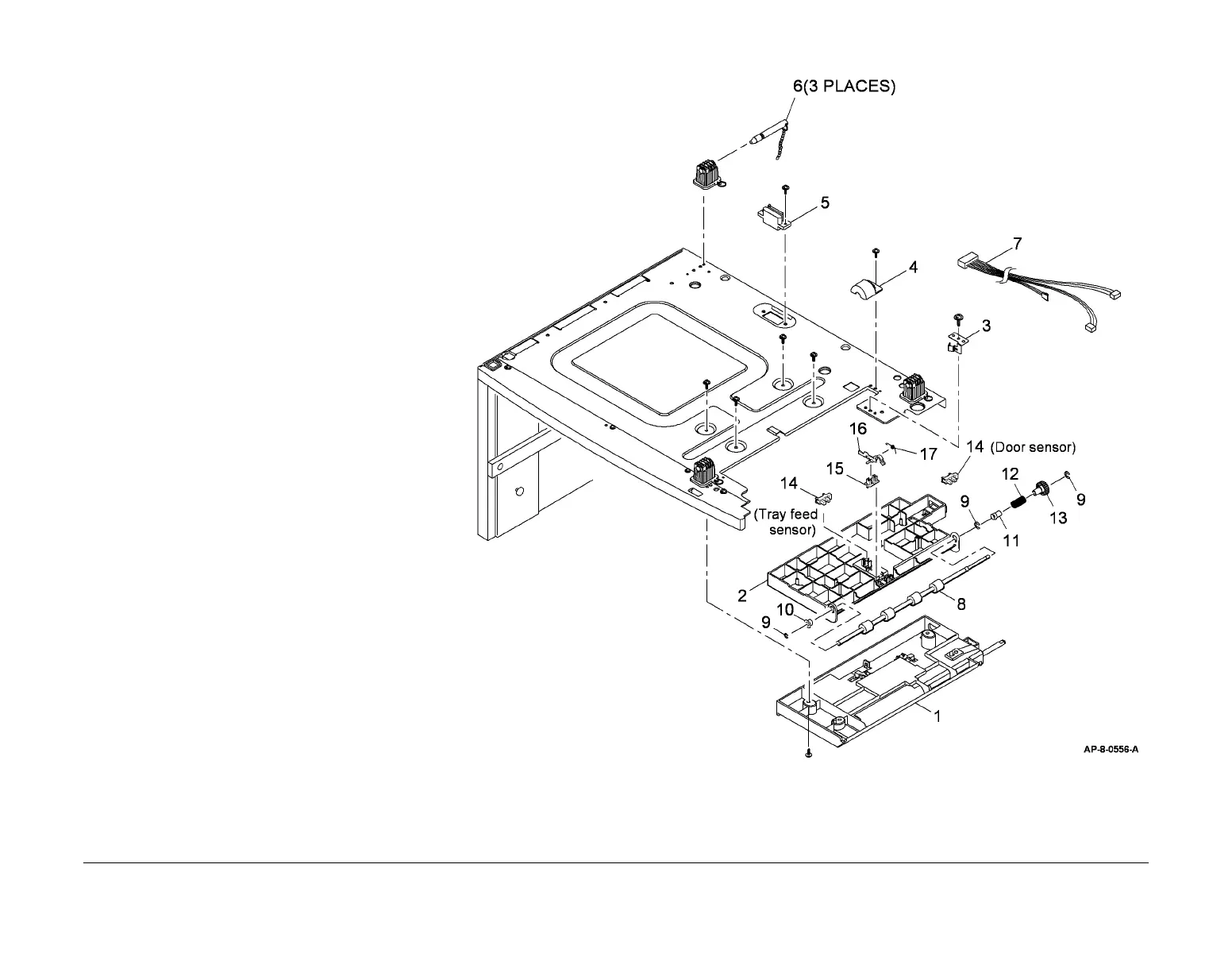

PL 7.65 HCF (5 of 5)
Item Part Description
1 – Tray feed assembly (REF: PL 8.10
Item 1)
2 – Paper transport housing
3 002N02580 Ground strip
4 – Gear cover (P/O PL 7.45 Item 1)
5 152N11714 Tray connector
6 – Locking pin (P/O PL 7.45 Item 1)
7 – Harness (P/O PL 7.45 Item 1)
8 – Transport roll (P/O PL 7.45 Item 1)
9 – E-clip (Not Spared)
10 – Bearing (P/O PL 7.45 Item 1)
11 – Bush holder (P/O PL 7.45 Item 1)
12 009N01605 Spring clutch
13 007N01529 Gear (REP 7.6)
14 130N01274 Tray feed sensor, door sensor (See
Note) (REP 7.6)
15 – Cradle (P/O PL 7.45 Item 1)
16 – Actuator (P/O PL 7.45 Item 1)
17 – Spring (P/O PL 7.45 Item 1)
NOTE: The tray feed sensor and the SCF door sensor
component control codes are common.
