Xerox WorkCentre 4265

January 2016
WorkCentre 4150/4250/4260/4265WorkCentre 4150/4250/4260WorkCentre
PL 7.17
Parts List

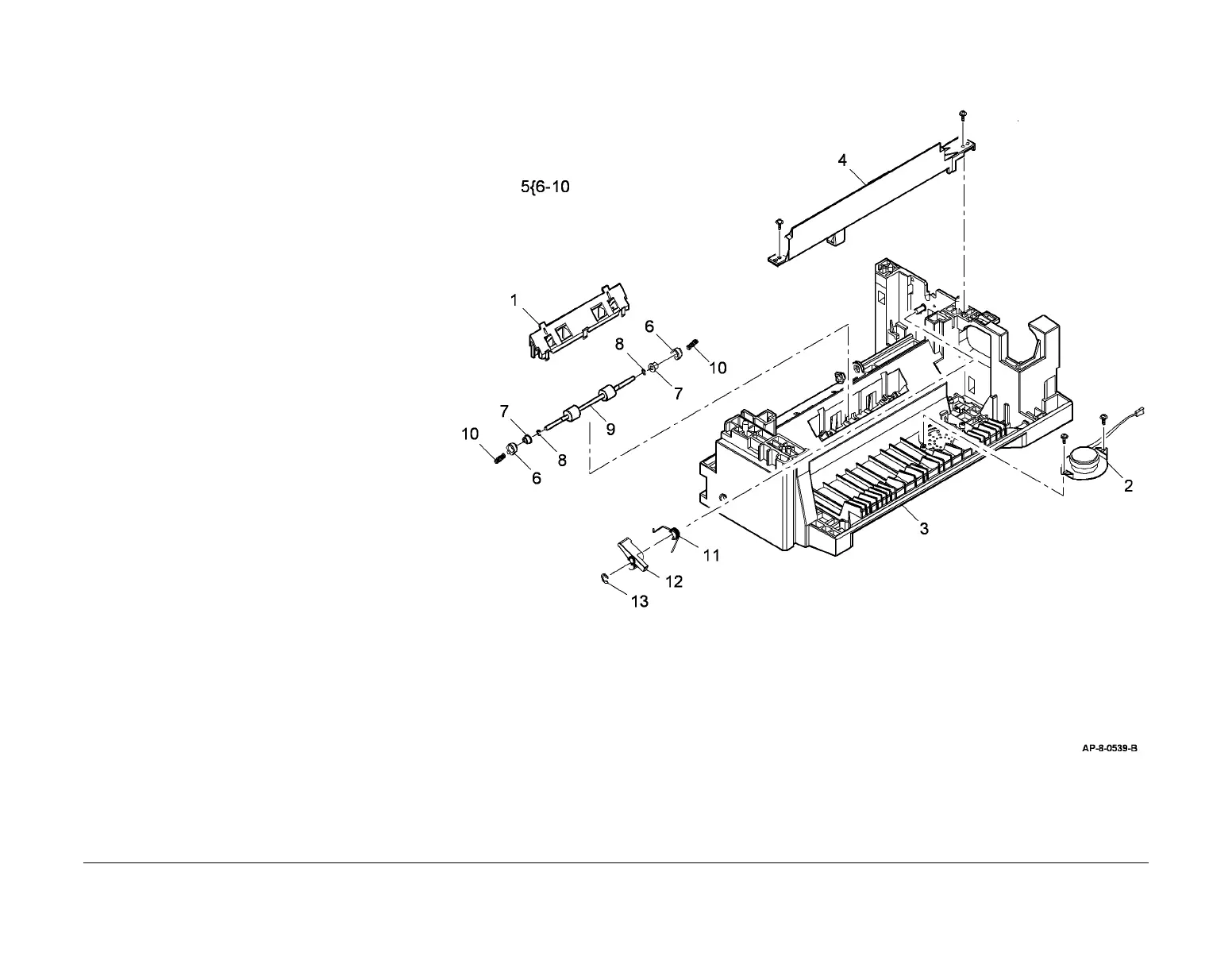

PL 7.17 Tray 1 Frame Assembly (2 of
2)
Item Part Description
1 038N00502 Guide (REP 8.7)
2 130N01550 Speaker (4250/4260/4265) (REP
8.4)
– 130N01213 Speaker (4150) (REP 8.4)
3 – Right hand base (Not Spared)
4 – Guide (Not Spared)
5 022N02279 Transport roll idler assembly (REP
8.7)
6 – Spring holder (P/O PL 7.17 Item 5)
7 – Bearing (P/O PL 7.17 Item 5)
8 – E-clip (Not Spared)
9 – Transport roll idler (P/O PL 7.17
Item 5)
10 – Spring (P/O PL 7.17 Item 5)
11 – Spring (Not Spared)
12 – Feedhead link arm (Not Spared)
13 – E-clip (Not Spared)
