Xerox WorkCentre 4265 Service Manual

January 2016
4-170
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 12.5
Repairs and Adjustments
REP 12.5 Front and Rear Jogger Assemblies
Parts List on PL 12.30
Purpose
This procedure is used to repair the following components:
NOTE: Only perform the steps that are necessary to repair the damaged component.
• Compiler Assembly, PL 12.20 Item 33.
• Front Jogger Assembly, PL 12.30 Item 27.
• Rear Jogger Assembly, PL 12.30 Item 28.
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
1. Remove the Exit Roll (REP 12.3).
2. Prepare to remove the Compiler Assembly (Figure 1).

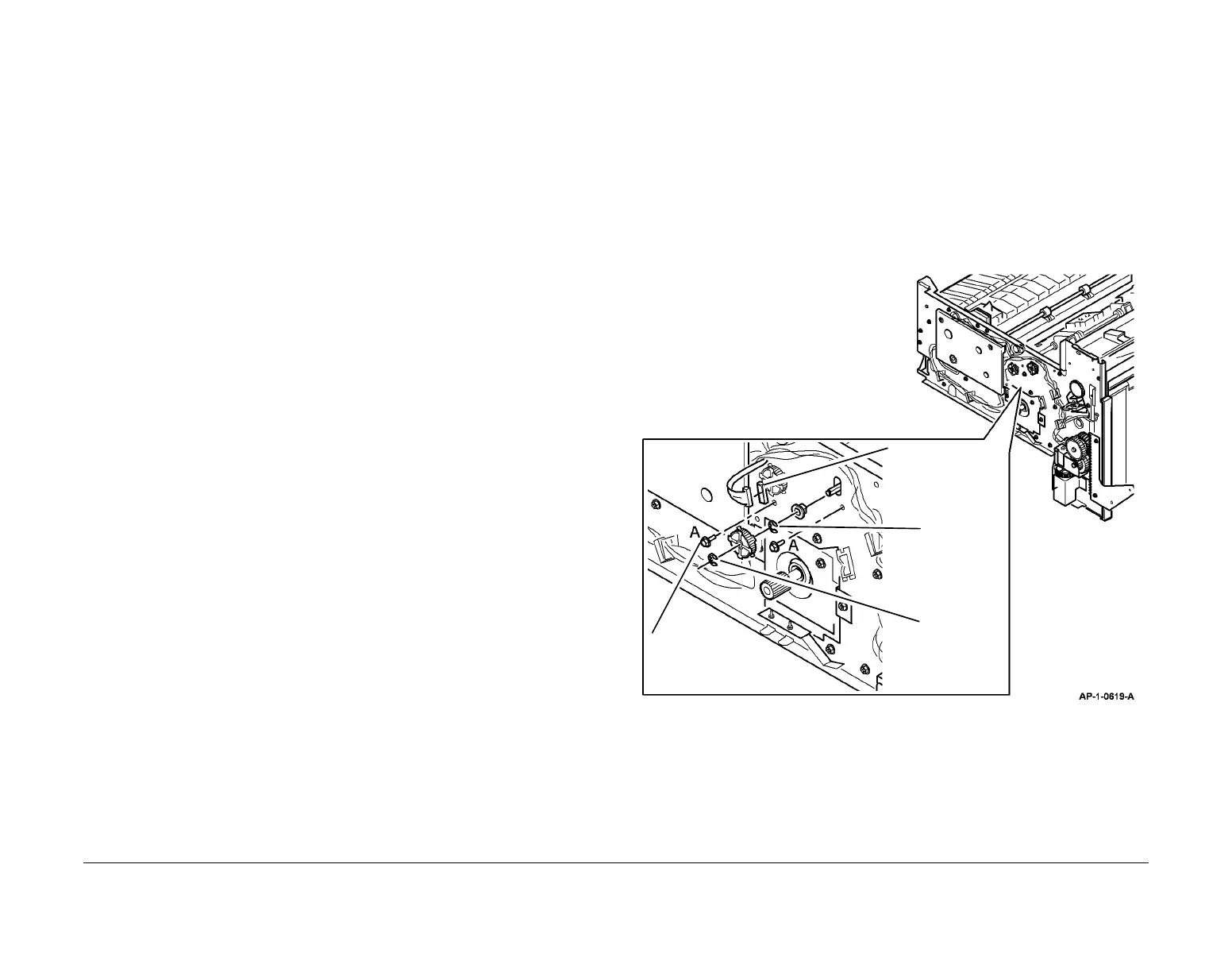

Figure 1 Preparing to Remove the Compiler Assembly
1
Remove 2 screws
marked A.
2
Remove the
E-clip, then
the pulley.
3
Remove the
E-clip, then
the bearing.
4
Disconnect the
bulkhead connector.
