Xerox WorkCentre 4265 Service Manual

January 2016
WorkCentre 4150/4250/4260/4265WorkCentre 4150/4250/4260WorkCentre
PL 7.32
Parts List

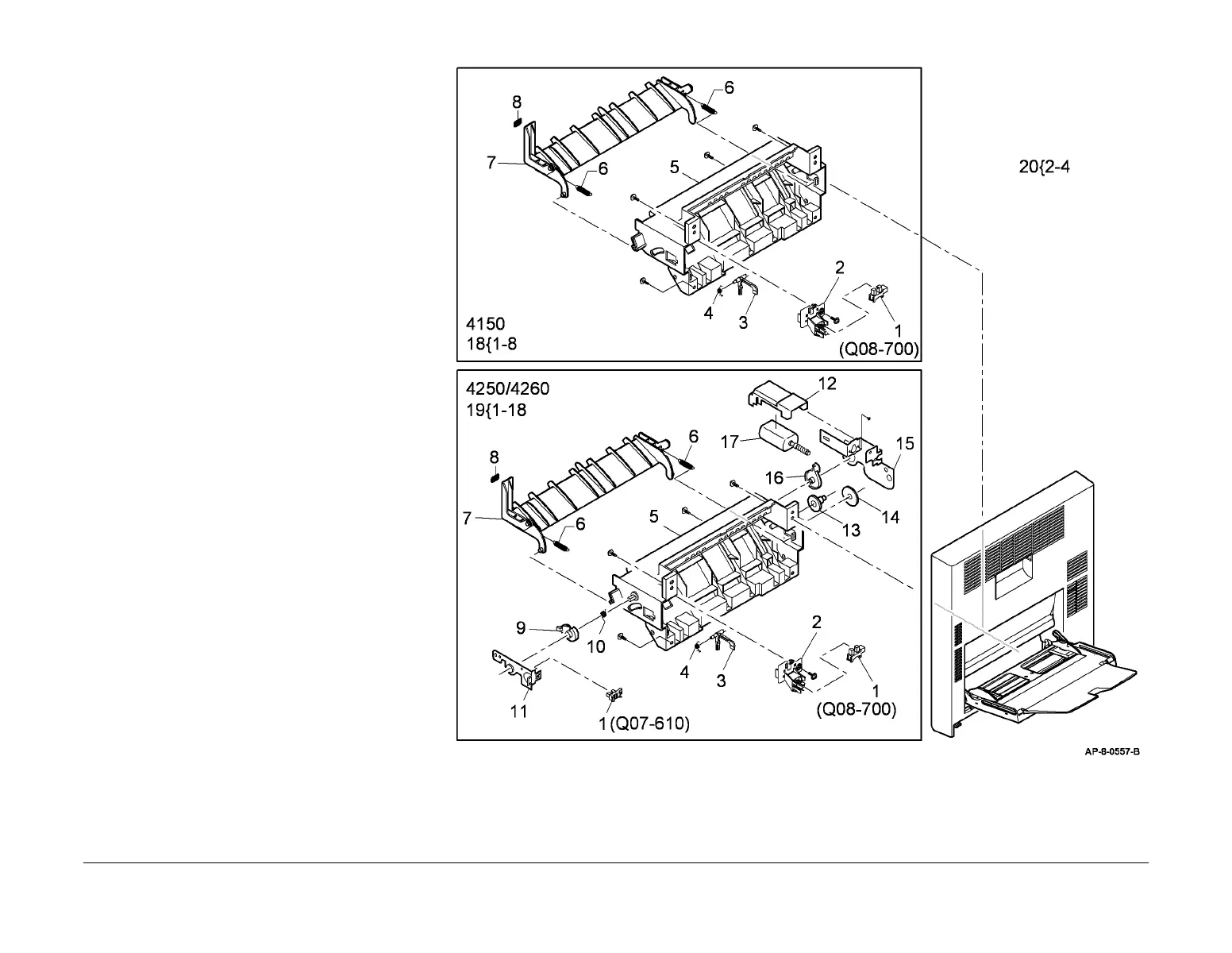

PL 7.32 Side Cover Assembly (2 of 3)
Item Part Description
1 130N01601 PHOTO-INTERRUPTER (4265)
– 130N01274 Duplex jam 1 sensor (Q08-700),
Envelope sensor (Q07-610)
2 120N00528 Sensor holder
3 – Duplex jam 1 sensor actuator (P/O
PL 7.32 Item 20)
4 009N01597 Spring
5 – Duplex side guide (P/O PL 7.32
Item 18, PL 7.32 Item 19)
6 009N01598 Spring
7 032N00518 Duplex exit guide (P/O PL 7.32
Item 18, PL 7.32 Item 19)
8 – Label (P/O PL 7.32 Item 18, PL
7.32 Item 19)
9 – Front cam (P/O PL 7.32 Item 19)
(4250/4260)
10 – Spring (P/O PL 7.32 Item 19)
(4250/4260)
11 – Front bracket (P/O PL 7.32 Item 19)
(4250/4260)
12 – Fuser release motor cover (P/O PL
7.32 Item 19) (4250/4260)
13 – Drive gear (P/O PL 7.32 Item 19)
(4250/4260)
14 – Transfer gear (P/O PL 7.32 Item
19)
15 – Rear bracket (P/O PL 7.32 Item 19)
(4250/4260)
16 – Rear cam (P/O PL 7.32 Item 19)
(4250/4260)
17 – Envelope motor (MOT07-600)
(P/O PL 7.32 Item 19) (4250/4260)
18 – Duplex side guide assembly (P/O
PL 7.30 Item 1) (4150)
19 – Duplex side guide assembly (P/O
PL 7.30 Item 1) (4250/4260)
20 120N00500 Actuator assembly

Xerox WorkCentre 4265 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax, Email
Print Resolution (Max)	Up to 1200 x 1200 dpi
Memory (Standard)	2 GB
Memory (Maximum)	2 GB
Connectivity	10/100/1000Base-T Ethernet, USB 2.0
Paper Output	250 sheets
Scan Resolution (Optical)	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Media Sizes Supported	Legal, Letter
Mobile Printing	Apple AirPrint
Duplex Printing	Automatic
Display	7-inch color touchscreen
