Xerox WorkCentre 4265 Service Manual

January 2016
WorkCentre 4150/4250/4260/4265WorkCentre 4150/4250/4260WorkCentre
PL 10.20
Parts List

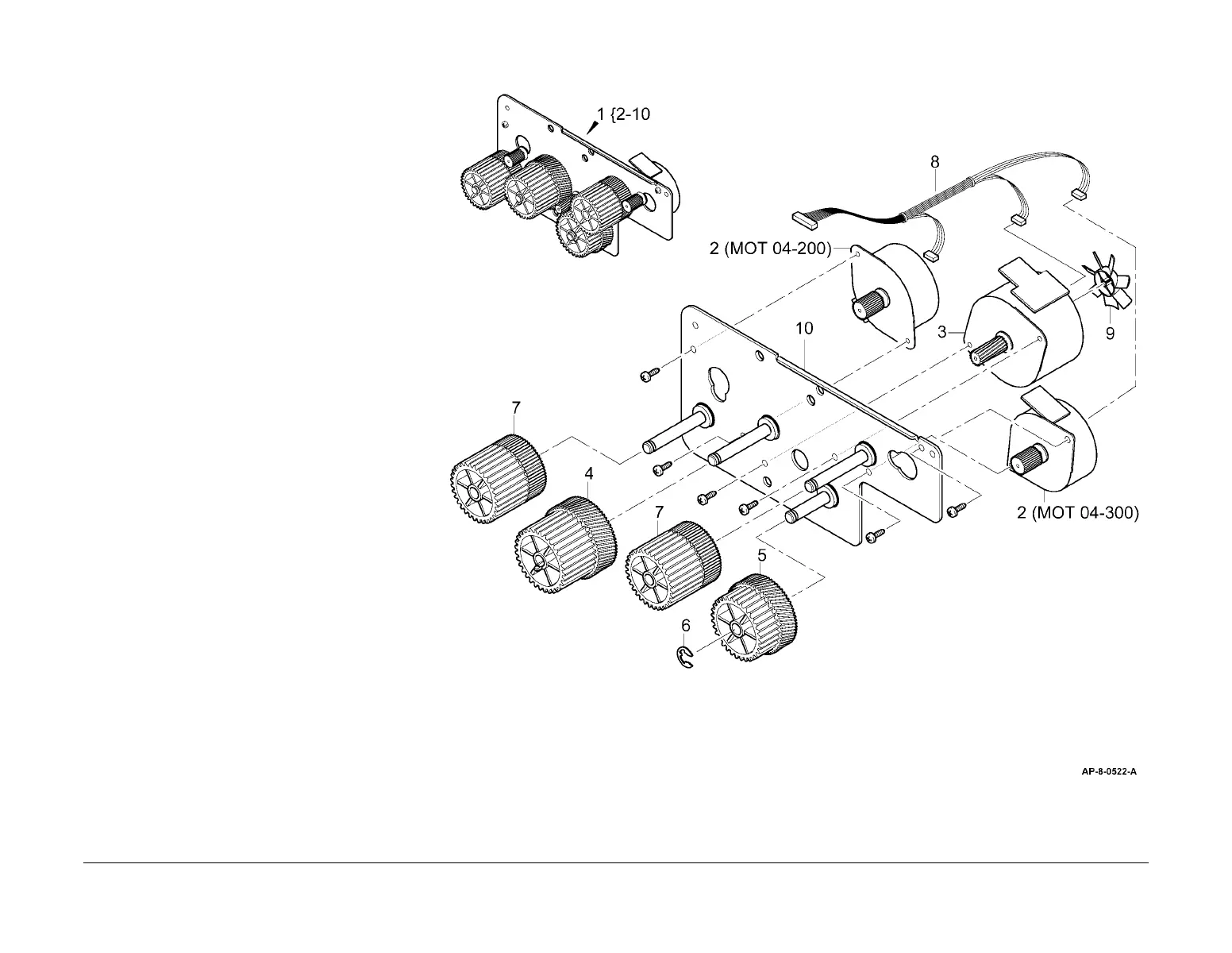

PL 10.20 Exit Drive
Item Part Description
1 002N02555 Exit drive assembly (4150) (REP
10.4)
– 002N02803 Exit drive assembly
(4250/4260/4265) (REP 10.4)
2 127N07586 Exit motor (MOT 04-200), Duplex
motor (MOT 04-300)
(4250/4260/4265)
– 127N07490 Exit motor (MOT 04-200), Duplex
motor (MOT 04-300) (4150)
3 127N07585 Fuser motor (MOT 10-400)
(4250/4260/4265)
– 127N01443 Fuser motor (MOT 10-400) (4150)
4 007N01510 Exit idler gear (A) (4150/4265)
– 007N01620 Exit idler gear (A) (4250/4260)
5 007N01511 Fuser idler gear (A)
6 – E-Clip (Not Spared)
7 007N01621 Exit idler gear (C)
(4250/4260/4265)
– 007N01512 Exit idler gear (C) (4150)
8 152N11763 Motor harness (4250/4260)
– 002N02575 Motor harness (4150)
9 – Fan blade (P/O PL 10.20 Item 1)
10 – Mounting plate (P/O PL 10.20 Item
1)
