Xerox WorkCentre 4265 Service Manual

January 2016
WorkCentre 4150/4250/4260WorkCentre 4150/4250/4260/4265WorkCentre
PL 1.20
Parts List

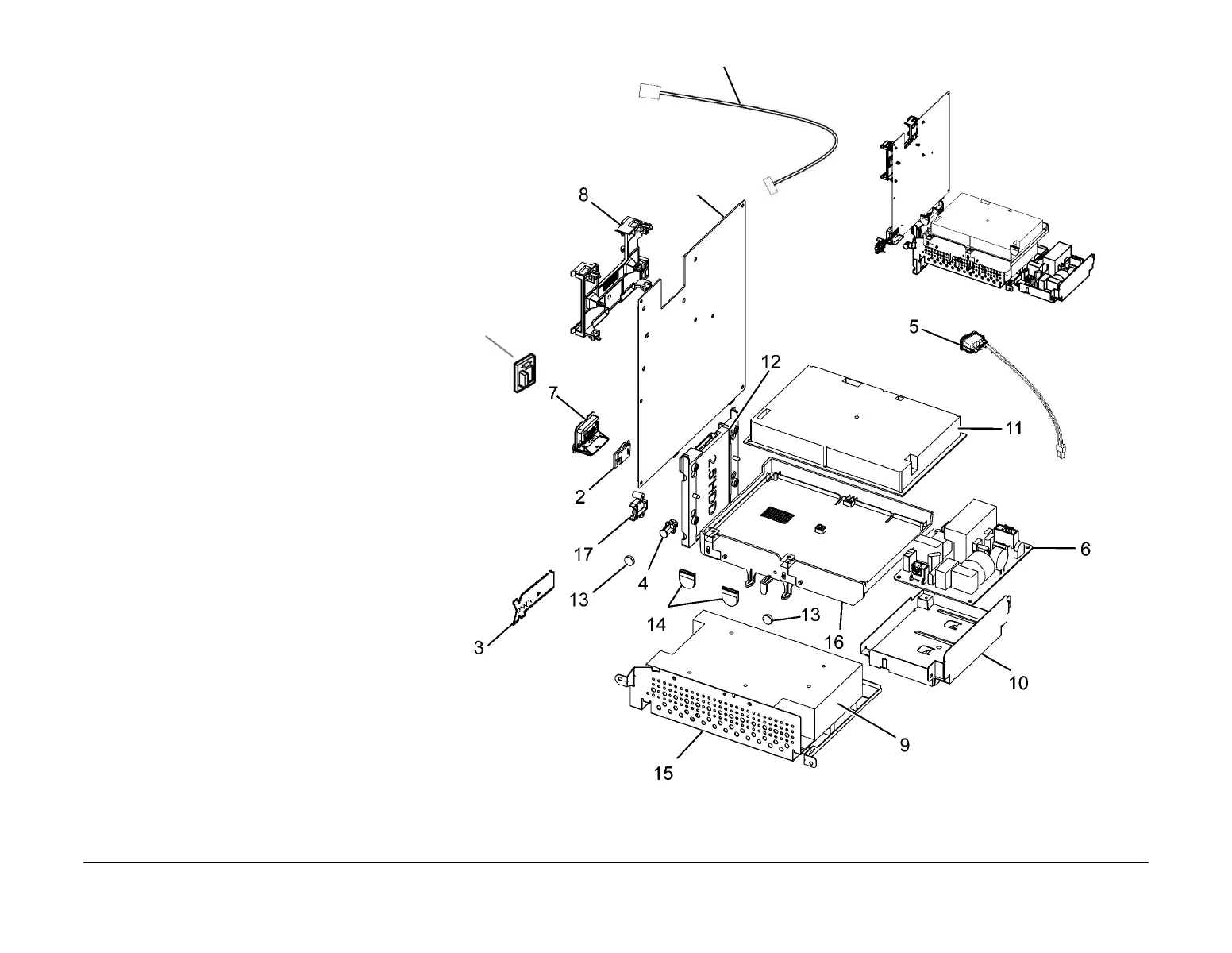

PL 1.20 Power and Control Assembly
(4265)
Item Part Description
1 140N63702 Main PWB (REP 1.5)
2 – Sensor
3 101N01445 SIM PWB
4 – Guide-M-USB Jack
5 152N11783 Main power socket
6 105N02291 Power Supply Unit 2 (PS2) (220V)
(REP 1.9)
– 105N02290 Power Supply Unit 2 (PS2) (110V)
7 – Holder Sensor
8 – Holder-LIU
9 105N02304 SMPS-PS1 (220V)
– 105N02305 SMPS-PS1 (110V) (REP 1.8)
10 – Shield-BD Fuser
11 105N02292 HVPS (REP 1.7)
12 – Board-Holder HDD
13 – Cap-Hole Screw
14 – Pad Rubber
15 – Frame-Unit Shield SMPS
16 – Frame-Holder HVPS
17 – Holder SIM
18
18 -- MSOK (only available through
Field Engineering)
19 152N11843 UI-to-Main pwb HDMI cable
19
1

Xerox WorkCentre 4265 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax, Email
Print Resolution (Max)	Up to 1200 x 1200 dpi
Memory (Standard)	2 GB
Memory (Maximum)	2 GB
Connectivity	10/100/1000Base-T Ethernet, USB 2.0
Paper Output	250 sheets
Scan Resolution (Optical)	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Media Sizes Supported	Legal, Letter
Mobile Printing	Apple AirPrint
Duplex Printing	Automatic
Display	7-inch color touchscreen
