Xerox WorkCentre 4265 Service Manual

January 2016
WorkCentre 4150/4250/4260/4265WorkCentre 4150/4250/4260WorkCentre
PL 5.35
Parts List

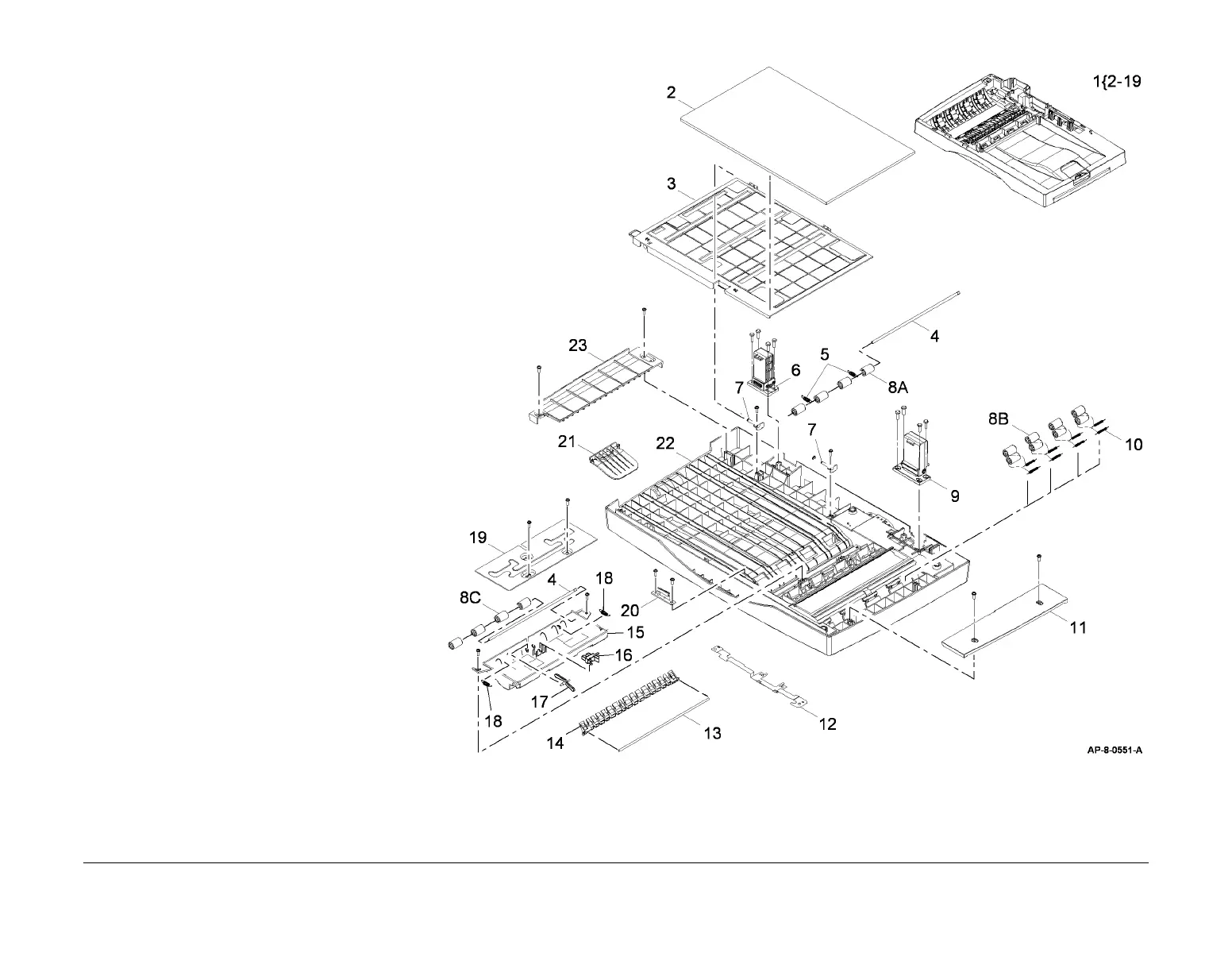

PL 5.35 DADF Assembly (3 of 7)
(4250/4260)
Item Part Description
1 – Platen cover assembly (P/O PL
5.30 Item 1)
2 095N00380 Document pad
3 002N02866 Lower inverter tray
4 – Idler shaft (P/O PL 5.35 Item 1)
5 – Idler spring (P/O PL 5.35 Item 1)
6 003N01046 Left counterbalance
7 – Jam clearance cover bracket (P/O
PL 5.35 Item 1)
8 – Gate roll idler (8A), CVT roll lower
idler (8B), Lower exit roll idler (8C)
(P/O PL 5.35 Item 1)
9 003N01047 Right counterbalance
10 – Spring (P/O PL 5.35 Item 1)
11 – Right platen cover (P/O PL 5.35
Item 1)
12 – Ground strip (P/O PL 5.35 Item 1)
13 – Reverse guide shaft (P/O PL 5.35
Item 1)
14 – Reverse guide (P/O PL 5.35 Item 1)
15 – Jam clearance guide housing (P/O
PL 5.35 Item 1)
16 130N01274 R stack sensor
17 – R stack sensor actuator (P/O PL
5.35 Item 1)
18 – Spring (P/O PL 5.35 Item 1)
19 – Jam clearance guide cover (P/O PL
5.35 Item 1)
20 – Handle (P/O PL 5.35 Item 1)
21 090N00167 Guide extension
22 – Platen cover housing (P/O PL 5.35
Item 1)
23 – Left platen cover (P/O PL 5.35 Item
1)
