January 2016
4-173
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 12.5, REP 12.6
Repairs and Adjustments
Replacement
Replacement is the reverse of the Removal procedure.
NOTE: When the Compiler Assembly is reinstalled, ensure that the Compiler Paddles are not
trapped between the Compiler and the Jogger Assemblies.
REP 12.6 Front and Rear Support Fingers
Parts List on PL 12.25
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
1. Remove the Jogger Assembly that is above the damaged Support Finger, REP 12.5.
2. Remove the relevant Support Finger and Bracket Assembly (Figure 1).
NOTE: Figure 1 shows the removal of the rear Support Finger assembly. The procedure
for removing the front or rear Support Finger and Bracket Assembly is identical.

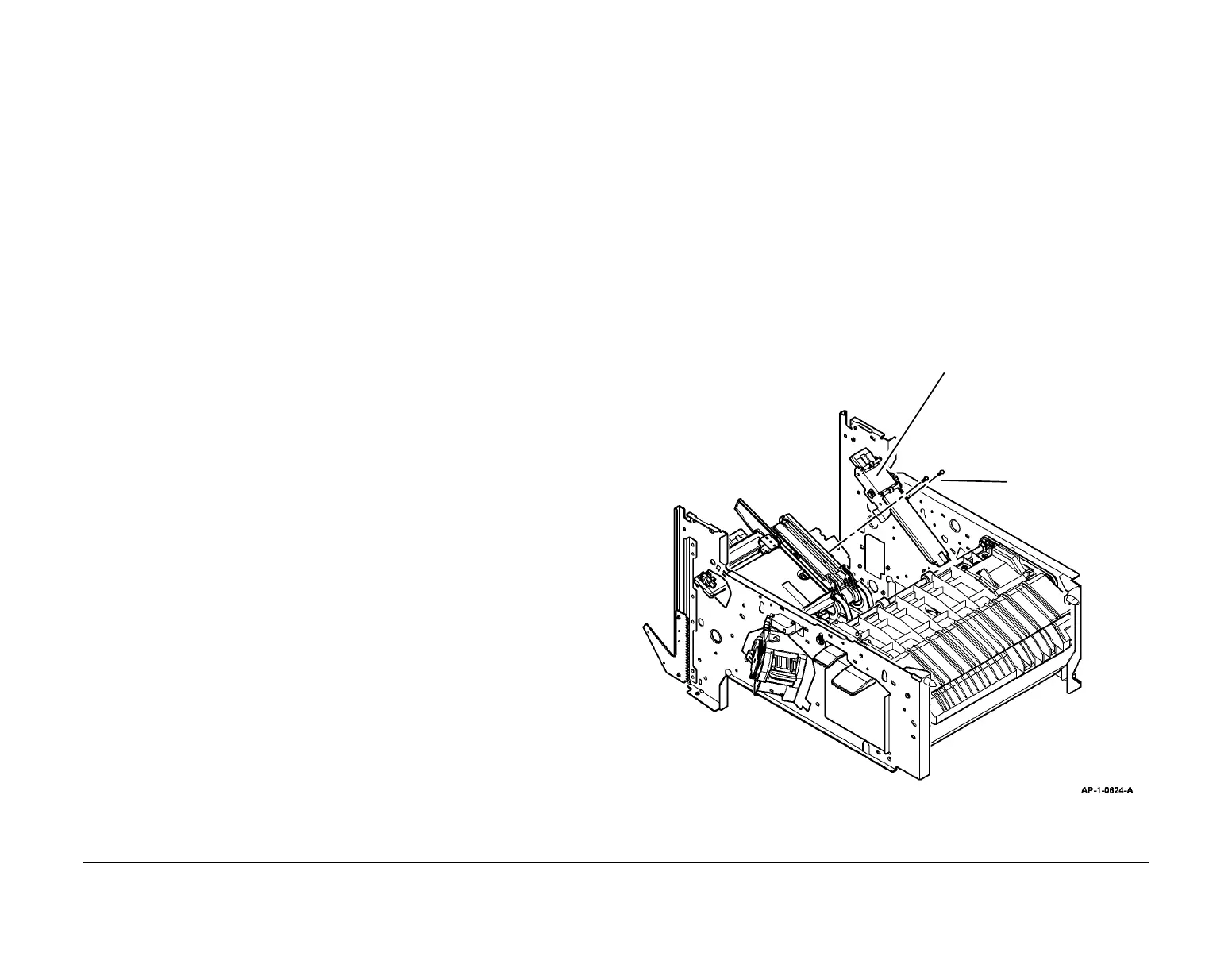

Figure 1 Removing the Support finger and Bracket Assembly
1
Remove 2 screws.
2
Remove the Support Fin-
ger and Bracket Assembly.
To Next Page
