Xerox WorkCentre 4265 Service Manual

January 2016
4-104
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 6.2
Repairs and Adjustments
REP 6.2 LSU FAN
Parts List on PL 6.10
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
1. Remove the DADF. Refer to (4150) REP 5.1 or (4250/4260/4265) REP 5.3.
2. Remove the scanner assembly, (4150) REP 14.1 or (4250/4260/4265) REP 14.3.
3. Remove the Exit Guide Assembly, REP 10.2.
4. Remove the rear LSU fan duct, PL 6.10 Item 4.
5. Remove the LSU fan, Figure 1.

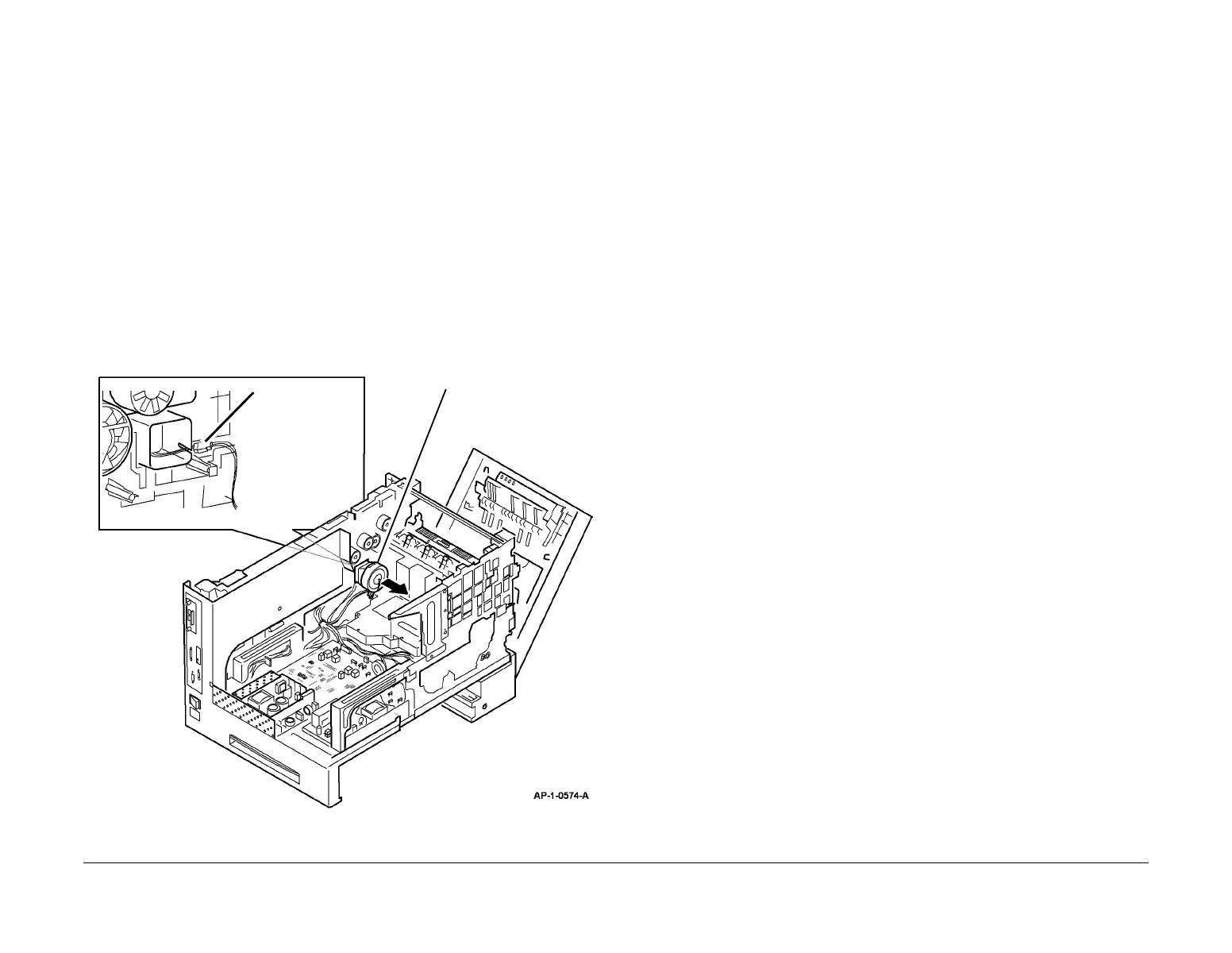

Figure 1 Removing the LSU Fan
6. Remove the LSU fan from the front LSU fan duct, PL 6.10 Item 4.
Replacement
Replacement is the reverse of the removal procedure.
1
Disconnect the
inline connector,
and route the wire
harness back
inside the
machine.
2
Pull out the LSU fan.

Xerox WorkCentre 4265 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax, Email
Print Resolution (Max)	Up to 1200 x 1200 dpi
Memory (Standard)	2 GB
Memory (Maximum)	2 GB
Connectivity	10/100/1000Base-T Ethernet, USB 2.0
Paper Output	250 sheets
Scan Resolution (Optical)	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Media Sizes Supported	Legal, Letter
Mobile Printing	Apple AirPrint
Duplex Printing	Automatic
Display	7-inch color touchscreen
