Xerox WorkCentre 4265 Service Manual

January 2016
WorkCentre 4150/4250/4260WorkCentre 4150/4250/4260/4265WorkCentre
PL 7.35
Parts List

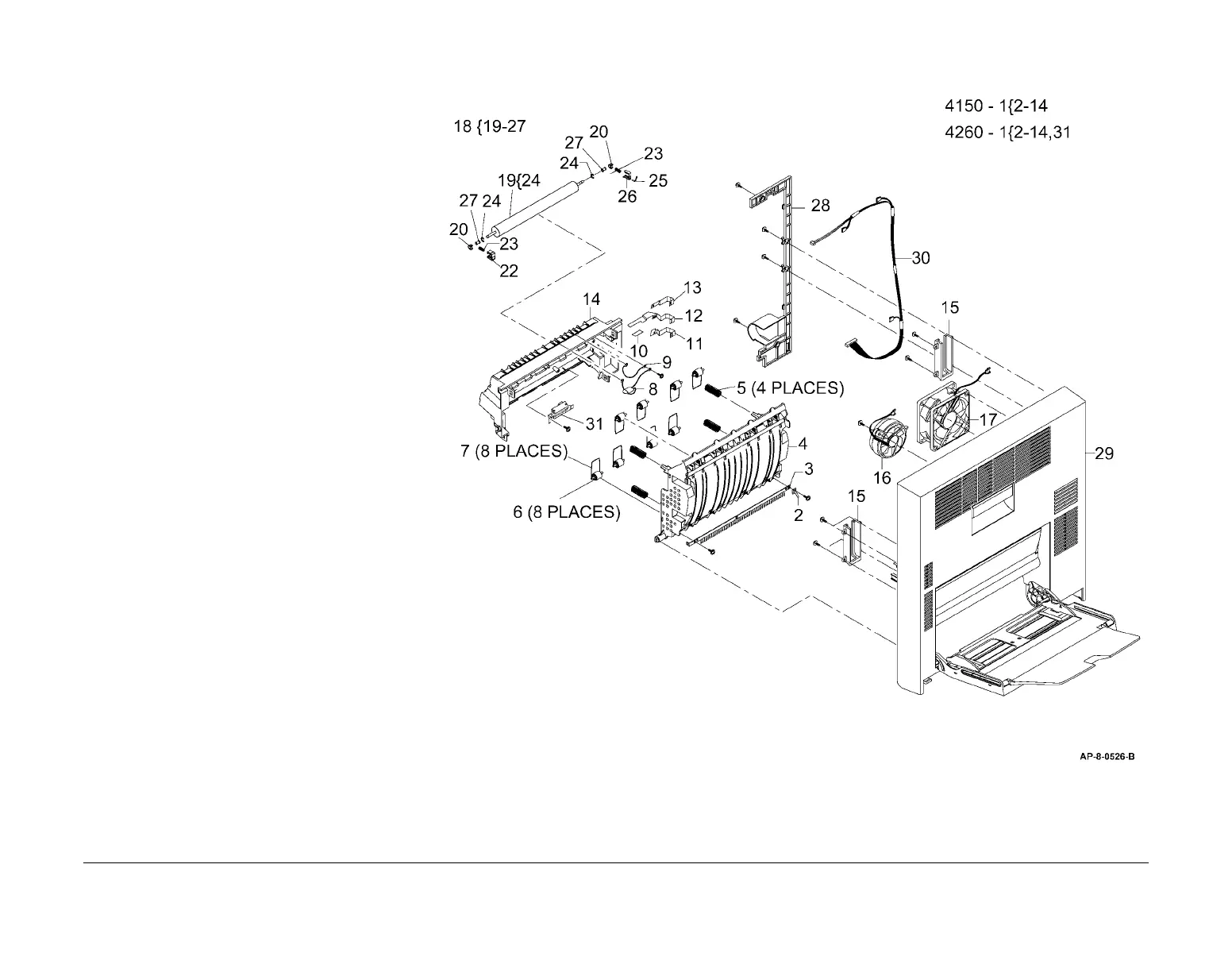

PL 7.35 Side Cover Assembly (3 of 3)
Item Part Description
1 002N02834 Duplex assembly (4250/4260)
– 002N02576 Duplex assembly (4150)
2 – Grounding brush (P/O PL 7.35 Item
1)
3 115N00860 Static eliminator
4 – Duplex guide (P/O PL 7.35 Item 1)
5 009N01599 Spring
6 022N02234 Duplex idler roll
7 115N00864 Spring clip
8 – Ground harness assembly (P/O PL
7.35 Item 1)
9 – Ground harness (P/O PL 7.35 Item
1)
10 – Double sided tape (P/O PL 7.35
Item 1)
11 – Transfer ground strip (P/O PL 7.35
Item 1)
12 – Detack ground strip (P/O PL 7.35
Item 1)
13 – Ground strip (P/O PL 7.35 Item 1)
14 – Feed guide (P/O PL 7.35 Item 1)
15 – Damper bracket (P/O PL 7.35 Item
1)
16 127N07583 Duplex fan 1 (4250/4260/4265)
– 127N07485 Duplex fan 1 (4150)
17 127N07591 Duplex fan 2 (4250/4260/4265)
18 022N02277 Bias Transfer roll assembly (See Note)
19 022N02235 Bias Transfer roll (See Note)
20 013N00537 Bush
21 – Not used
22 019N00913 Retainer
23 009N01600 Spring
24 – E-Clip (Not Spared)
25 009N01601 Spring plate
26 019N00914 Retainer
27 016N00289 Bush
28 – Harness cover (P/O PL 7.35 Item 1)
29 – Side cover (REF: PL 7.30 Item 1)
30 152N11710 Duplex harness (4150)
– 152N11767 Duplex harness (4250/4260/4265)
31 002N02835 ID sensor bracket assembly
(4250/4260)
NOTE: HFSI. To reset the HFSI count, go to GP 16.
127N07545 Duplex fan 2 (4150)

Xerox WorkCentre 4265 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax, Email
Print Resolution (Max)	Up to 1200 x 1200 dpi
Memory (Standard)	2 GB
Memory (Maximum)	2 GB
Connectivity	10/100/1000Base-T Ethernet, USB 2.0
Paper Output	250 sheets
Scan Resolution (Optical)	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Media Sizes Supported	Legal, Letter
Mobile Printing	Apple AirPrint
Duplex Printing	Automatic
Display	7-inch color touchscreen
