Xerox WorkCentre 4265 Service Manual

January 2016
WorkCentre 4150/4250/4260WorkCentre 4150/4250/4260/4265WorkCentre
PL 1.10
Parts List

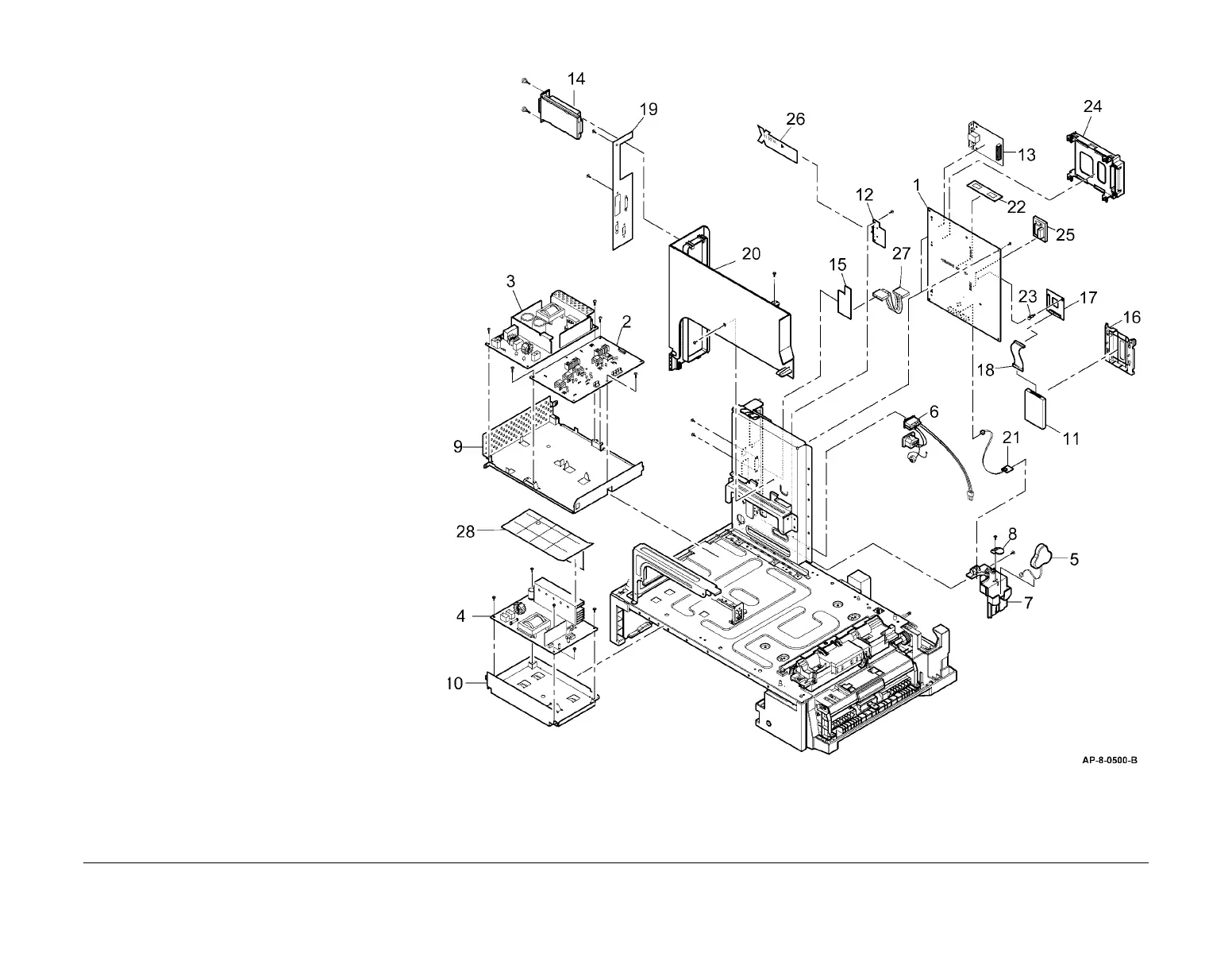

PL 1.10 Power and Control Assembly
(4150)
Item Part Description
1 140N63141 Main PWB (REP 1.2)
2 105N02092 HVPS (REP 1.1)
3 105N02090 Power supply unit (1) 110V
(USSG/XCL) (REP 1.1)
– 105N02091 Power supply unit (1) 220V (XE)
(REP 1.1)
4 112N00220 Power supply unit (2) (USSG/XCL)
(REP 1.3)
– 112N00221 Power supply unit (2) (XE) (REP
1.3)
5 105N02093 Battery
6 152N11705 Main power socket
7 – Cover (Not Spared)
8 – Battery retainer (Not Spared)
9 – Support cage (Not Spared)
10 – Support cage (Not Spared)
11 005N01086 HDD
12 101N01387 SIM PWB
13 101N01388 NIC PWB
14 – FAX module (REF: PL 20.10 Item
6)
15 140N6360 Foreign device interface PWB (P/O
PL 31.10 Item 2)
16 – HDD cover (Not Spared)
17 140N63205 HDD PWB
18 152N11731 HDD harness
19 – Infill cover (REF: PL 28.10 Item 5)
20 – Rear exit cover (REF: PL 28.10
Item 8)
21 140N62870 Ambient temperature sensor
22 144N00139 Memory DIMM (256 Mb)
– 144N00138 Memory DIMM (128Mb)
23 – Stand off (Not Spared)
24 019N00909 FAX holder
25 – MSOK (Not Spared)
26 – PEK/FEK (Not Spared)
27 – Foreign device interface harness
(P/O PL 31.10 Item 2)
28 – Power supply unit cover (Not
Spared)
29 117N01602 WC 4150 Power Cord (Not Shown)
