January 2016
WorkCentre 4150/4250/4260/4265WorkCentre 4150/4250/4260WorkCentre
PL 5.45
Parts List

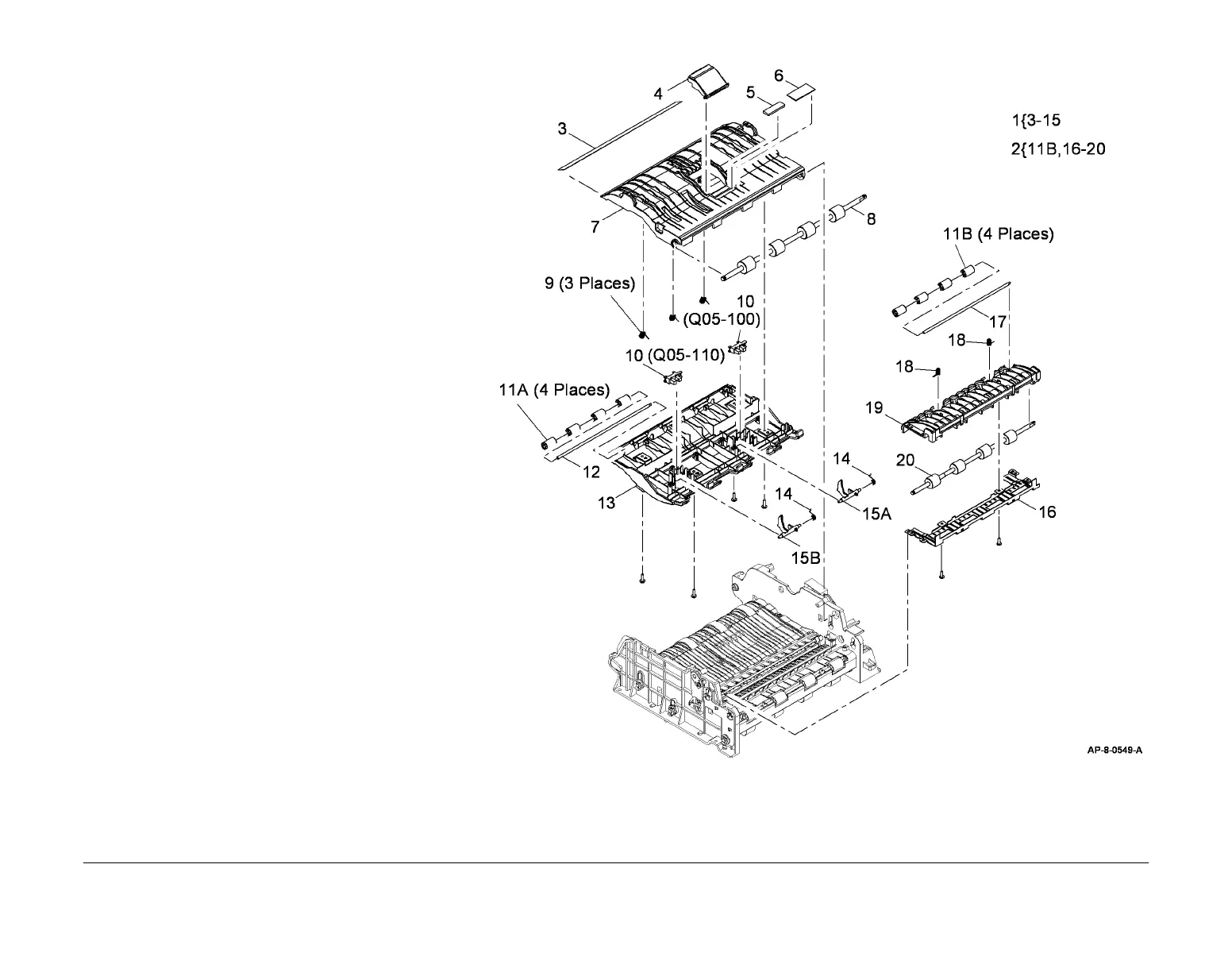

PL 5.45 DADF Assembly (5 of 7)
(4250/4260)
Item Part Description
1 – Pickup guide assembly (P/O PL
5.30 Item 26) (REP 5.12)
2 – Exit guide assembly (P/O PL 5.30
Item 26)
3– Guide (P/O PL 5.30 Item 26)
4 002N02819 Retard pad (See Note)
5 – Sponge pad (P/O PL 5.45 Item 4)
6 – Rubber pad (P/O PL 5.45 Item 4)
7 – Pickup guide upper housing (P/O
PL 5.30 Item 26)
8 – Duplex roll (P/O PL 5.30 Item 26)
9 – Feed idler spring (P/O PL 5.30 Item
26)
10 130N01274 Document detect sensor
(Q05-100), Paper width sensor
(Q05-110) (REP 5.12)
11 – Transport idler (11A), Duplex roll
idler (11A) (P/O PL 5.30 Item 26)
12 – Idler shaft (P/O PL 5.30 Item 26)
13 – Pickup guide lower housing (P/O
PL 5.30 Item 26)
14 – Actuator spring (P/O PL 5.30 Item
26)
15 – Document detect sensor actuator
(15A), Paper width sensor actuator
(15B) (P/O PL 5.30 Item 26)
16 – Exit guide lower housing (P/O PL
5.30 Item 26)
17 – Idler shaft (P/O PL 5.30 Item 26)
18 – Feed idler spring (P/O PL 5.30 Item
26)
19 – Exit guide upper housing (P/O PL
5.30 Item 26)
20 – Upper exit roll (P/O PL 5.30 Item
26)
NOTE: HFSI. To reset the HFSI count, go to GP 16.
