Xerox WorkCentre 4265 Service Manual

January 2016
WorkCentre 4150/4250/4260/4265WorkCentre 4150/4250/4260WorkCentre
PL 5.60
Parts List

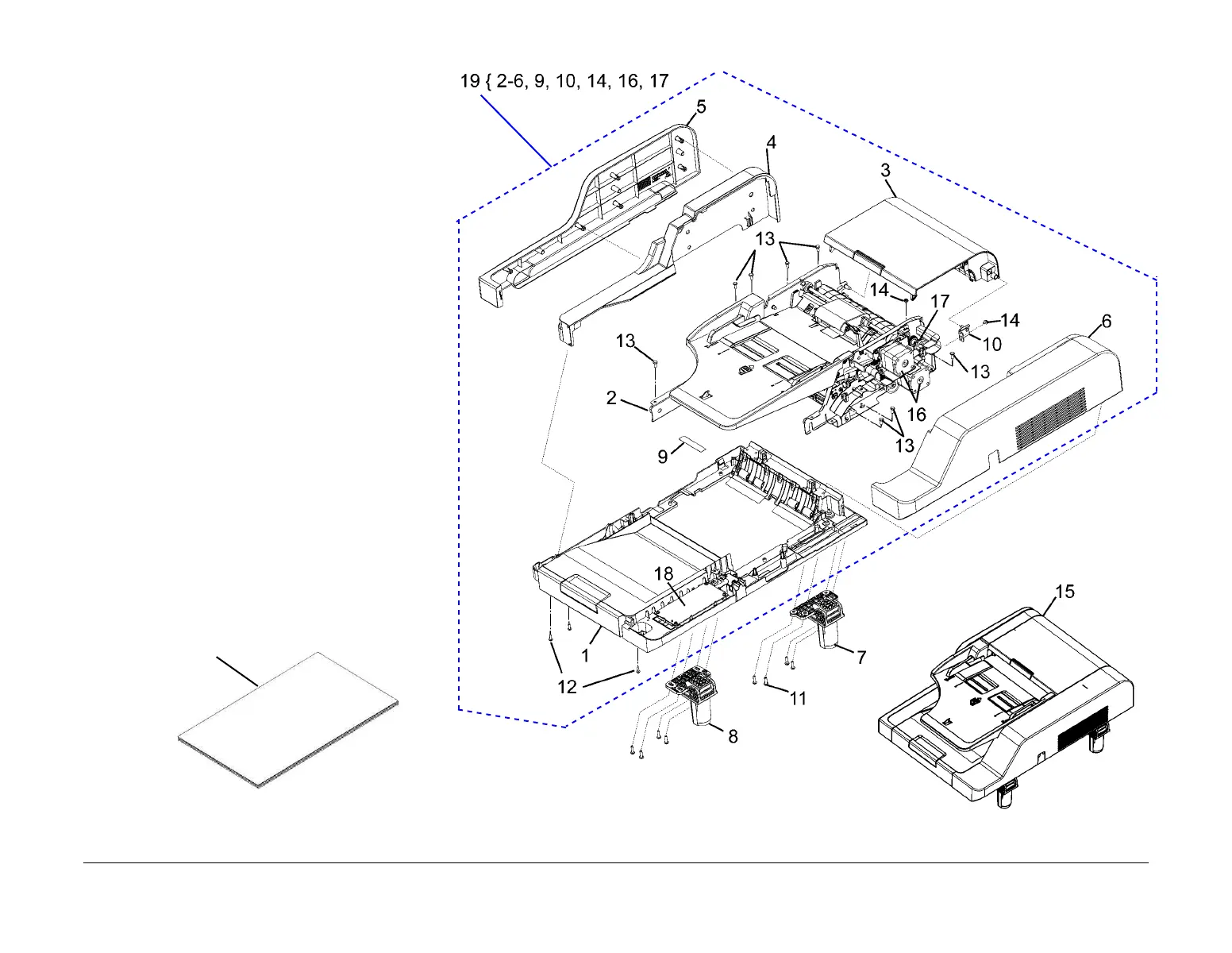

PL 5.60 DADF Assembly (2 of 4)
(4265)
Item Part Description
1 – DADF Platen Cover
2 – DADF - Sub (4265) (REP 5.32)
3 002N03116 DADF Cover Open (REP 5.14)
4– Cover Side F
5 – Cover Deco F
6– Cover Side R
7 003N01109 DADF Hinge Left (4265) (REP
5.29)
8 003N01108 DADF Hinge Right (4265) (REP
5.29)
9 – Label Bar Code
10 – Bracket Hinge Right
11 – Screw
12 – Screw
13 – Screw
14 – Screw
15 022N02763 DADF Assembly (REP 5.3)
16 022N02766 DADF Feed Roll Motor (REP 5.20),
DADF Drive Roll Motor (REP 5.19)
17 – DADF Registration Clutch (REP
5.21)
18 140N63735 DADF PWB (REP 5.17)
19 022N02765 Document Transport Assembly
20 004N00290 DADF Platen Cushion (not included
20
with 15 or 19)
