Xerox WorkCentre 4265 Service Manual

January 2016
WorkCentre 4150/4250/4260/4265WorkCentre 4150/4250/4260WorkCentre
PL 14.16
Parts List

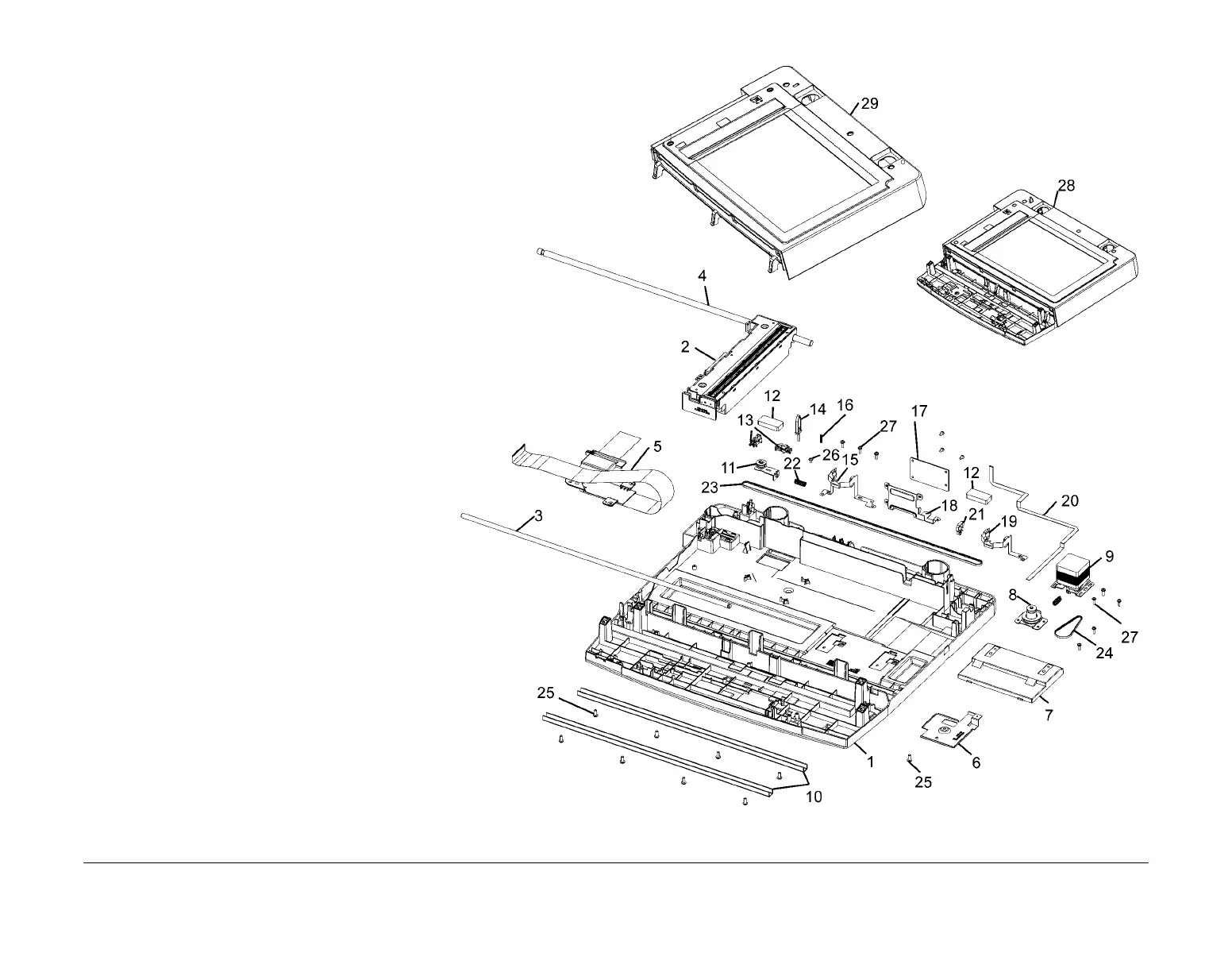

PL 14.16 Scanner Module (4265)
Item Part Description
1 – Lower Scanner Cover
2 062N00295 CCDM (REP 14.4)
3– Rail
4 – CCD Rail
5 -- Ribbon Cable (REP 14.4)
6 – Lower Scanner
7 – Lower APS
8– Pulley (REP 14.6)
9 127N07867 Scanner Motor (REP 14.5)
10 – Base Frame
11 – Pulley Assembly (REP 14.7)
12 – Seal
13 – Sensor
14 – Sensor
15 – Left Hinge
16 – Spring
17 – Scan Join PWBA (REP 14.4)
18 – Board Bracket
19 – Right Hinge
20 – FFC CCD Harness
21 – Saddle
22 – Spring
23 023N01360 Timing Belt (REP 14.7)
24 023N01359 Drive Belt (REP 14.6)
25 – Screw
26 – Screw
27 – Screw
28 090N00180 Scanner assembly
29 090N00181 Scanner Top Cover Assembly

Xerox WorkCentre 4265 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax, Email
Print Resolution (Max)	Up to 1200 x 1200 dpi
Memory (Standard)	2 GB
Memory (Maximum)	2 GB
Connectivity	10/100/1000Base-T Ethernet, USB 2.0
Paper Output	250 sheets
Scan Resolution (Optical)	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Media Sizes Supported	Legal, Letter
Mobile Printing	Apple AirPrint
Duplex Printing	Automatic
Display	7-inch color touchscreen
