Xerox WorkCentre 4265 Service Manual

January 2016
WorkCentre 4150/4250/4260/4265WorkCentre 4150/4250/4260WorkCentre
PL 7.60
Parts List

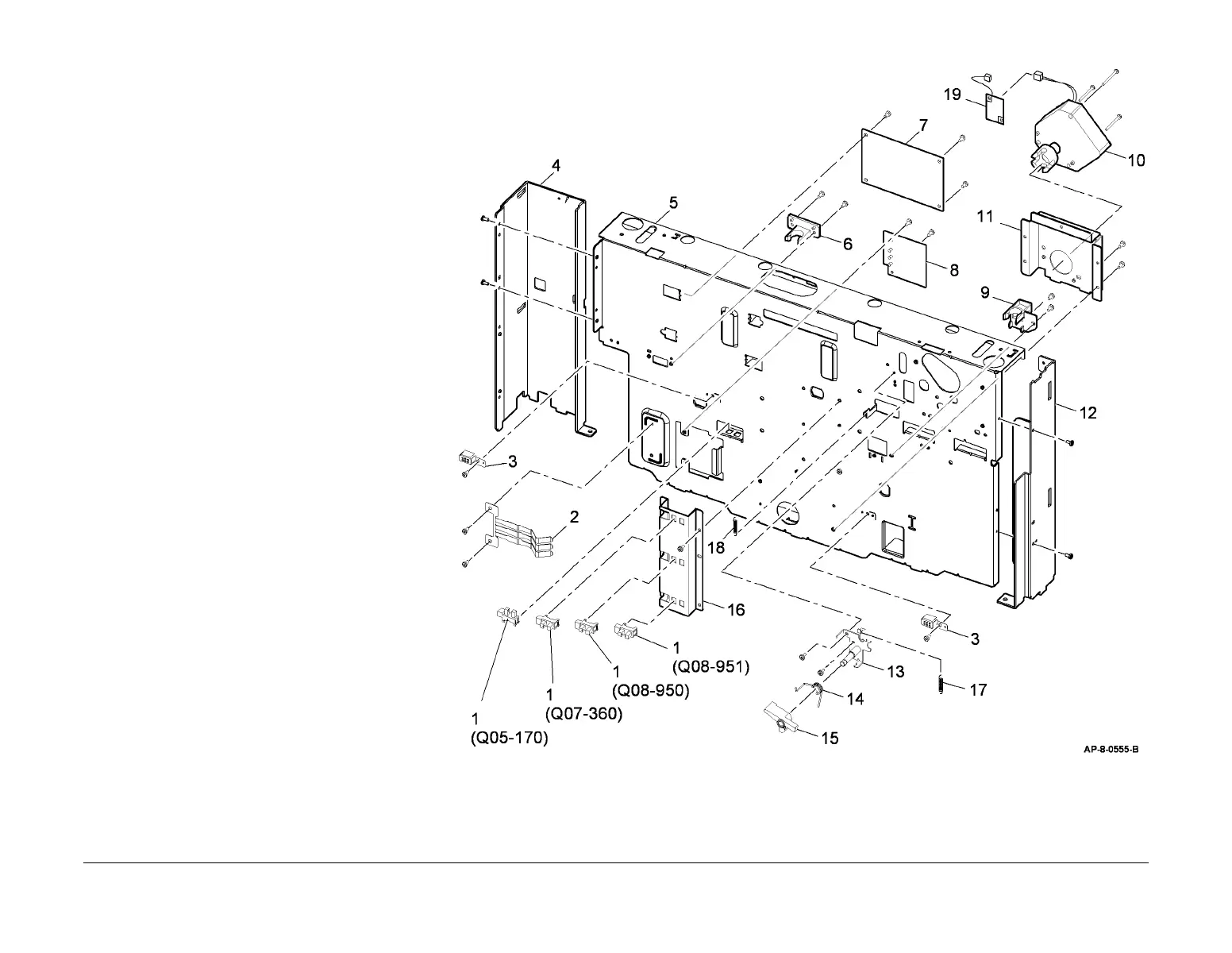

PL 7.60 HCF (4 of 5)
Item Part Description
1 130N01274 Tray home sensor (Q05-170),
paper low sensor (Q07-360), HCF
level sensor 2 (Q08-950), HCF
level sensor 3 (Q08-951)
2 – Leaf spring (P/O PL 7.45 Item 1)
3 – Ground strip (P/O PL 7.45 Item 1)
4 – Left plate (P/O PL 7.45 Item 1)
5– Frame (P/O PL 7.45 Item 1)
6 – Left clip (P/O PL 7.45 Item 1)
7 140N63148 HCF PWB
8 050N00539 Paper size detect PWB
9 – Right clip (P/O PL 7.45 Item 1)
10 127N07592 HCF elevating motor (MOT04-530)
11 – HCF elevating motor bracket (P/O
PL 7.45 Item 1)
12 – Right plate (P/O PL 7.45 Item 1)
13 – Link arm bracket (P/O PL 7.45 Item
1)
14 – Spring (P/O PL 7.45 Item 1)
15 – Feed head link arm (P/O PL 7.45
Item 1)
16 – Sensor bracket (P/O PL 7.45 Item
1)
17 009N01596 Spring
18 – Feed assembly spring (REF: PL
8.10 Item 16)
19 140N63395 PTC PWB

Xerox WorkCentre 4265 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax, Email
Print Resolution (Max)	Up to 1200 x 1200 dpi
Memory (Standard)	2 GB
Memory (Maximum)	2 GB
Connectivity	10/100/1000Base-T Ethernet, USB 2.0
Paper Output	250 sheets
Scan Resolution (Optical)	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Media Sizes Supported	Legal, Letter
Mobile Printing	Apple AirPrint
Duplex Printing	Automatic
Display	7-inch color touchscreen
