Xerox WorkCentre 4265 Service Manual

January 2016
WorkCentre 4150/4250/4260/4265WorkCentre 4150/4250/4260WorkCentre
PL 5.30
Parts List

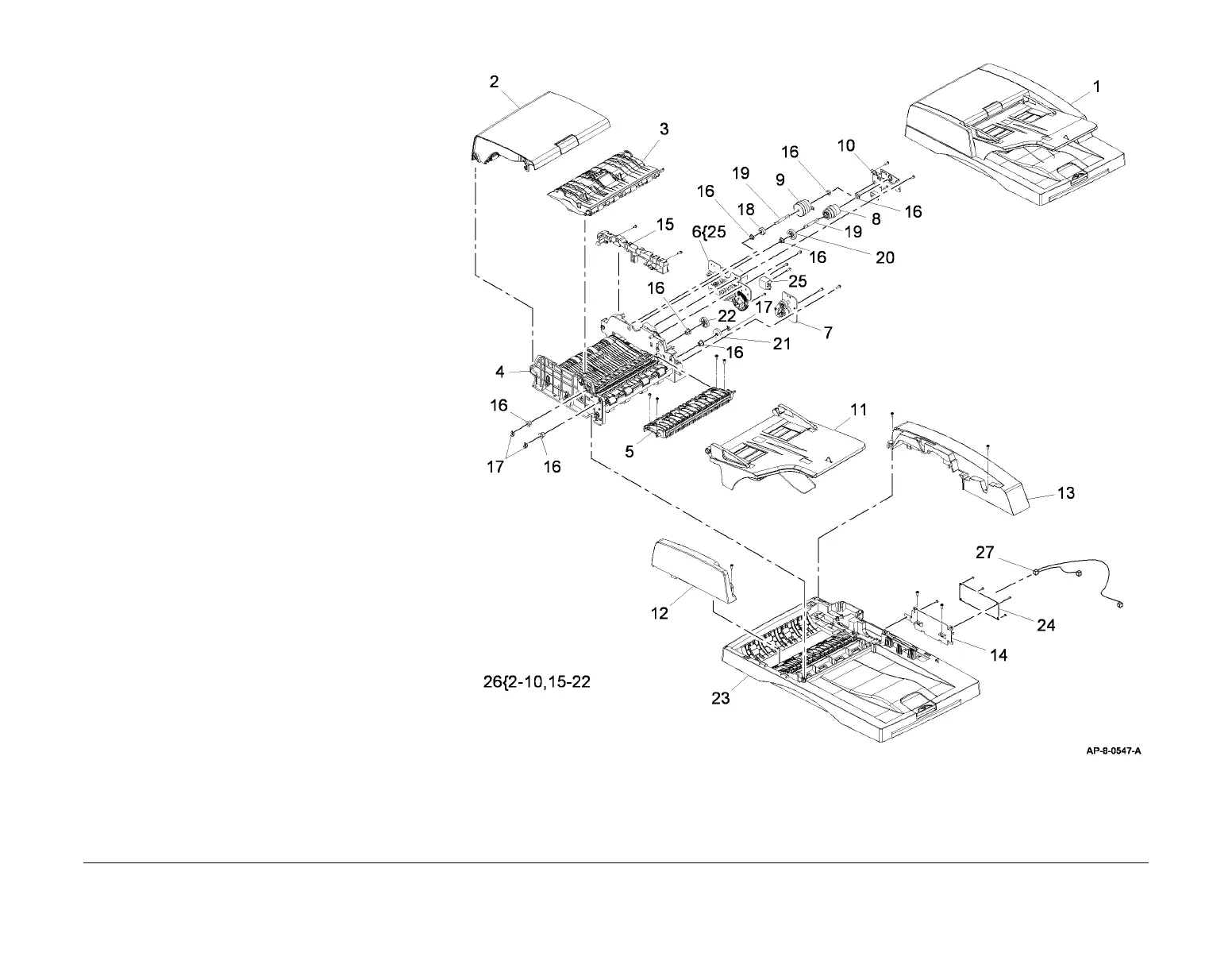

PL 5.30 DADF Assembly (1 of 7)
(4250/4260)
Item Part Description
1 002N02807 DADF assembly (4250/4260)
2 – Top cover assembly (REF: PL 5.40
Item 1)
3 – Pick-up guide assembly (REF: PL
5.45)
4 – Transport assembly housing (P/O
PL 5.30 Item 26)
5 – Exit guide assembly (REF: PL 5.45)
6 002N02821 DADF scan motor assembly (REP
5.10)
7 002N02820 DADF duplex motor assembly
(MOT05-210) (REP 5.8)
8 121N01178 Pickup clutch (CL05-300) (REP
5.9)
9 005N01085 Registration clutch (CL05-310)
10 – Clutch bracket (P/O PL 5.30 Item
26)
11 – Input tray assembly (REF: PL 5.32
Item 1)
12 002N02860 Front cover
13 – Rear cover (P/O PL 5.30 Item 1)
14 – DADF PWB shield (P/O PL 5.30
Item 1)
15 – Harness holder (P/O PL 5.30 Item
26)
16 – Bearing (P/O PL 5.30 Item 26)
17 – E-clip (Not Spared)
18 – Clutch gear (P/O PL 5.30 Item 26)
19 – Clutch shaft (P/O PL 5.30 Item 26)
20 – Gear (P/O PL 5.30 Item 26)
21 – One way gear (P/O PL 5.30 Item
26)
22 – Roll drive gear (P/O PL 5.30 Item
26)
23 – Platen cover (Not Spared)
24 140N63356 DADF PWB
25 – Lift solenoid (SOL05-320) (P/O PL
5.30 Item 6)
26 022N02765 Document transport assembly
(4265)
– 002N02816 Document transport assembly
(4250/4260)
27 152N11768 DADF PWB to registration sensor
harness

Xerox WorkCentre 4265 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax, Email
Print Resolution (Max)	Up to 1200 x 1200 dpi
Memory (Standard)	2 GB
Memory (Maximum)	2 GB
Connectivity	10/100/1000Base-T Ethernet, USB 2.0
Paper Output	250 sheets
Scan Resolution (Optical)	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Media Sizes Supported	Legal, Letter
Mobile Printing	Apple AirPrint
Duplex Printing	Automatic
Display	7-inch color touchscreen
