Xerox WorkCentre 4265 Service Manual

January 2016
4-93
WorkCentre 4150/4250/4260WorkCentre WorkCentre 4150/4250/42604150/
REP 5.30
Repairs and Adjustments
REP 5.30 DADF Front Scan Read Sensor (4265)
Parts List on PL 5.59
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Power off the machine. Disconnect the power cord.
2. Remove the DADF from the machine (REP 5.3) and place it upside-down on a clean,
level surface.

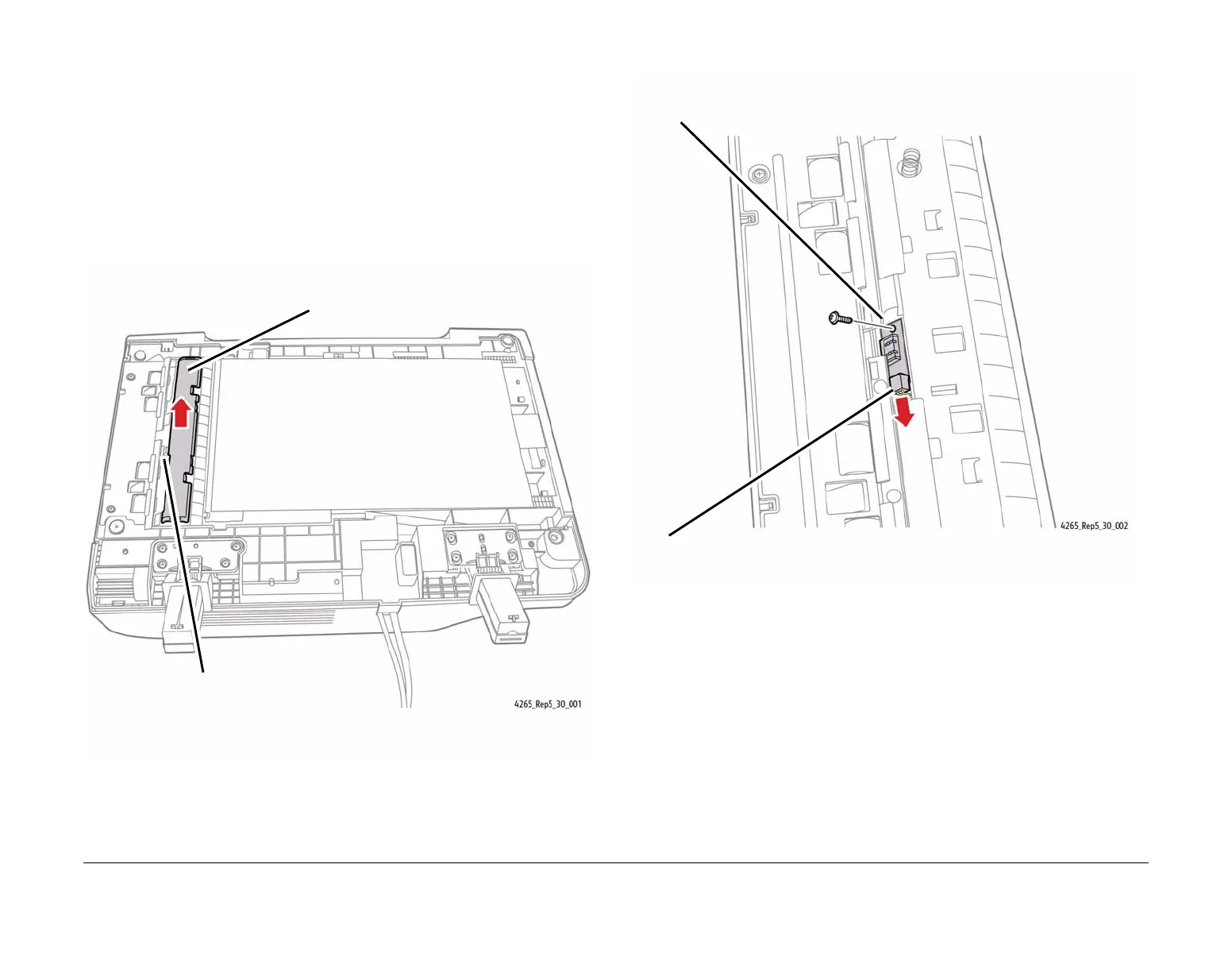

3. Remove the White Bar from the underside of the DADF (Figure 1).
Figure 1 Removing the White Bar
4. Remove the Front Scan Read Sensor (Figure 2).
Figure 2 Removing the Scan Read Sensor
Replacement
1. Reinstallation is the reverse of the Removal procedure.
1
Lift the White Bar off of the DADF.
Front Scan Read Sensor
1
Remove the mounting screw.
2
Disconnect the connector and remove the
Front Scan Read Sensor.

Xerox WorkCentre 4265 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax, Email
Print Resolution (Max)	Up to 1200 x 1200 dpi
Memory (Standard)	2 GB
Memory (Maximum)	2 GB
Connectivity	10/100/1000Base-T Ethernet, USB 2.0
Paper Output	250 sheets
Scan Resolution (Optical)	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Media Sizes Supported	Legal, Letter
Mobile Printing	Apple AirPrint
Duplex Printing	Automatic
Display	7-inch color touchscreen
