Xerox WorkCentre 4265 Service Manual

January 2016
4-174
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 12.6
Repairs and Adjustments

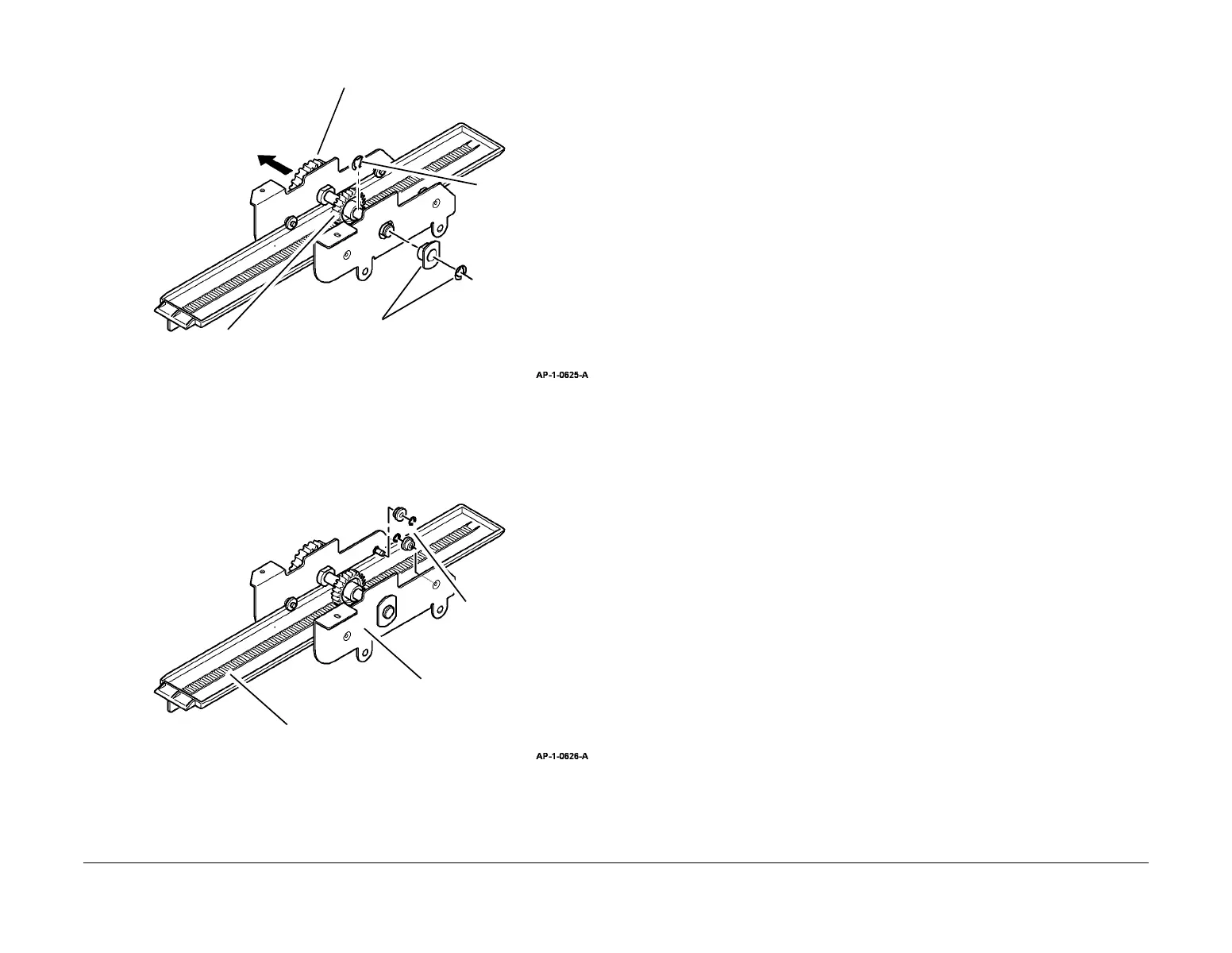

3. Prepare to remove the Support Finger (Figure 2).
Figure 2 Preparing to Remove the Support Finger
4. Remove the Support Finger (Figure 3).
Figure 3 Removing the Support finger
Replacement
Replacement is the reverse of the removal procedure. Ensure that the front Support Finger and
rear Support Finger are aligned correctly.
1
Remove the E-clip,
then the bearing.
2
Remove the E-clip.
3
Remove the gear, shaft and pin.
4
Remove the gear.
1
Remove 2 E-clips,
then the 2 rollers.
2
Remove the Support Finger from the
bracket.
Bracket.

Xerox WorkCentre 4265 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax, Email
Print Resolution (Max)	Up to 1200 x 1200 dpi
Memory (Standard)	2 GB
Memory (Maximum)	2 GB
Connectivity	10/100/1000Base-T Ethernet, USB 2.0
Paper Output	250 sheets
Scan Resolution (Optical)	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Media Sizes Supported	Legal, Letter
Mobile Printing	Apple AirPrint
Duplex Printing	Automatic
Display	7-inch color touchscreen
