Xerox WorkCentre 4265 Service Manual

January 2016
4-200
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
ADJ 5.1
Repairs and Adjustments
3. Adjust the DADF side edge registration (Figure 2).

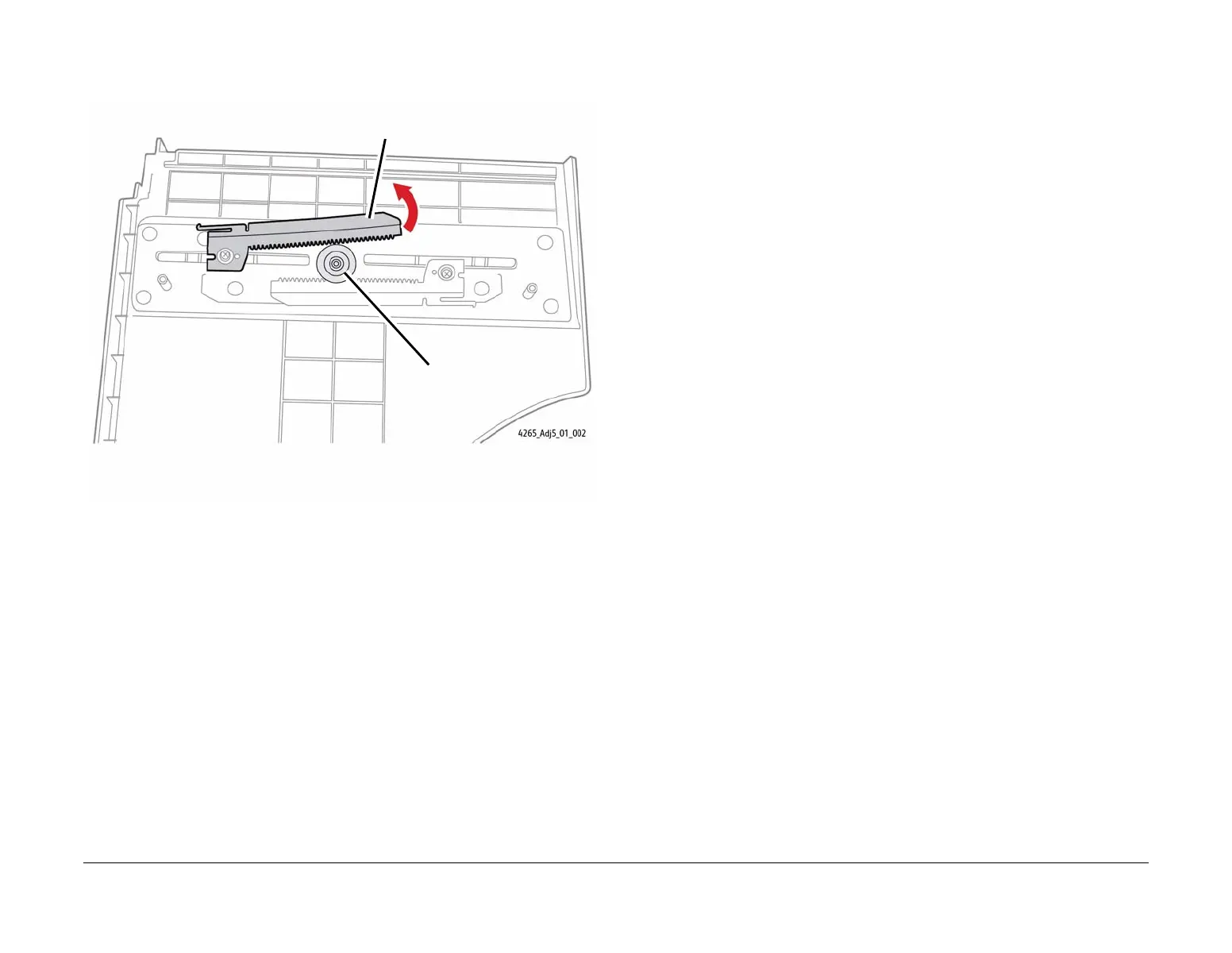

Figure 2 Adjusting the DADF Side Edge Registration
4. Reassemble the input tray assembly, and return the machine to normal operation.
5. Power on the machine.
6. Use the DADF to make 10 copies of a document. Check the registration, refer to IQS 3
Registration. If necessary, re-adjust the registration.
Pinion Gear
1
Lift the end of the Document
Guide requiring adjustment
away from the pinion gear.
2
To adjust registration, move the Docu-
ment Guide in the desired direction
prior to relocating it on the pinion gear.
ADJ 5.2 4250/4260 DADF Skew Adjustment
