Xerox WorkCentre 4265

January 2016
4-12
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 1.7
Repairs and Adjustments

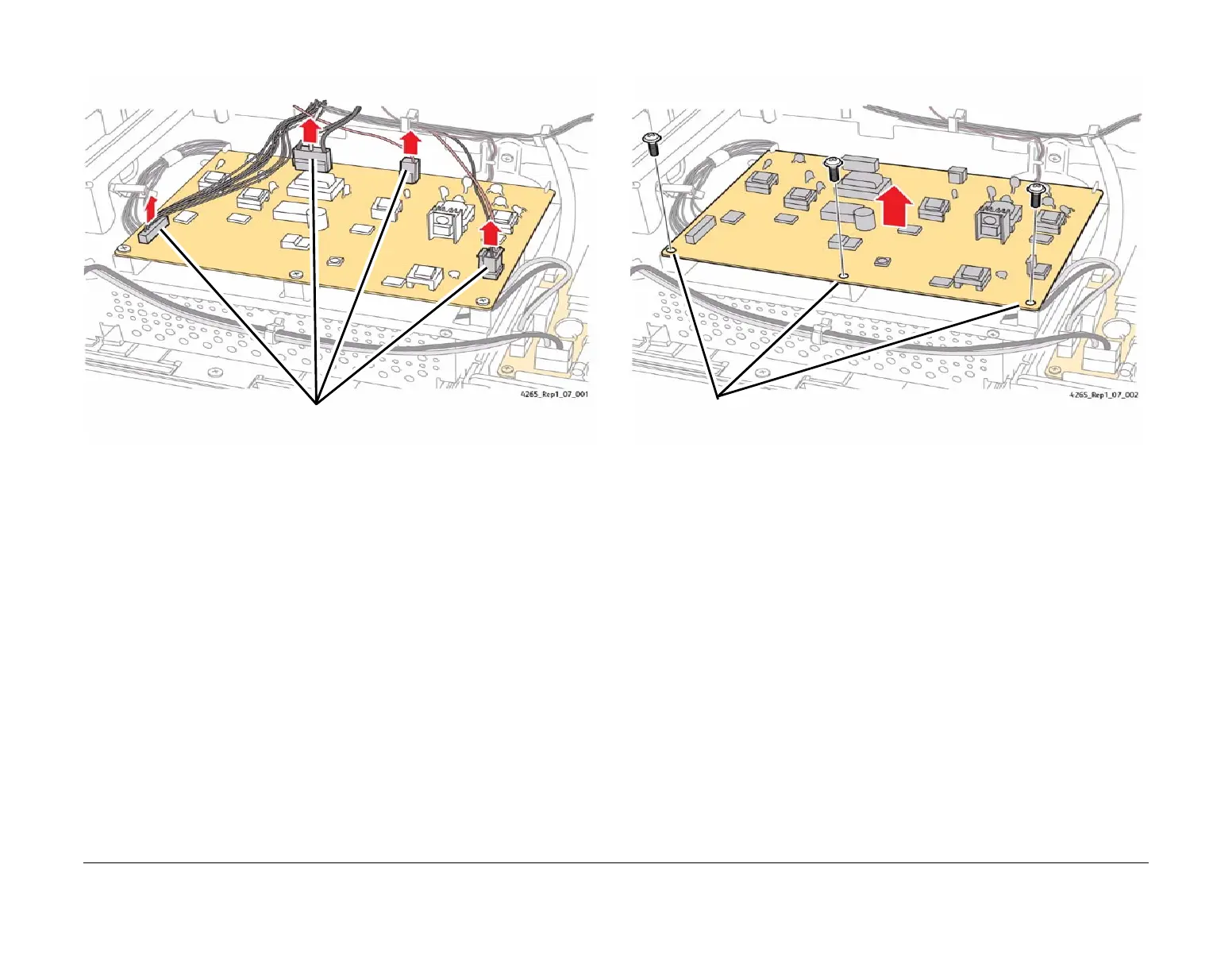

4. Disconnect the four connectors from the HVPS: (Figure 1).
Figure 1 Disconnecting the Connectors
5. Remove the HVPS from the machine (Figure 2).
Figure 2 Removing the HVPS
Replacement
1. Reinstallation is the reverse of the Removal procedure.
1
Disconnect the four connectors.
1
Remove the three mounting screws and remove the HVPS.
