REP 1.8
Repairs and Adjustments
5. Remove the Support Cage Cover (Figure 3).

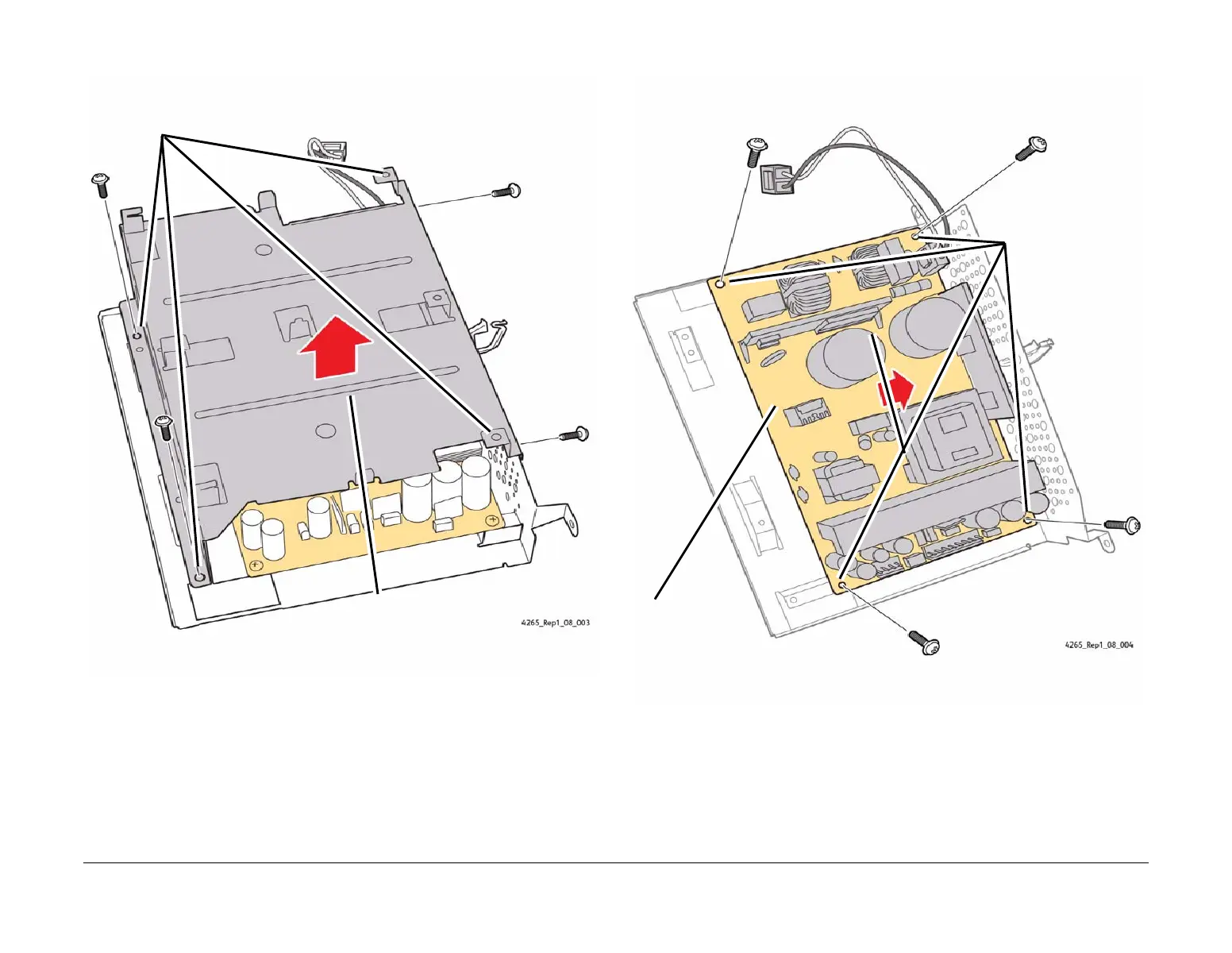

Figure 3 Removing the Support Cage Cover
6. Remove the SMPS from the lower bracket (Figure 4).
Figure 4 Removing the SMPS from the Lower Bracket
Replacement
1. Reinstallation is the reverse of the Removal procedure.
1
Remove the four
mounting screws.
2
Remove the Support
Cage Cover.
1
Remove the four
mounting screws.
2
Remove the
SMPS from the
lower bracket.
