REP 1.9
Repairs and Adjustments
5. Remove the PS Unit 2 (Figure 2).

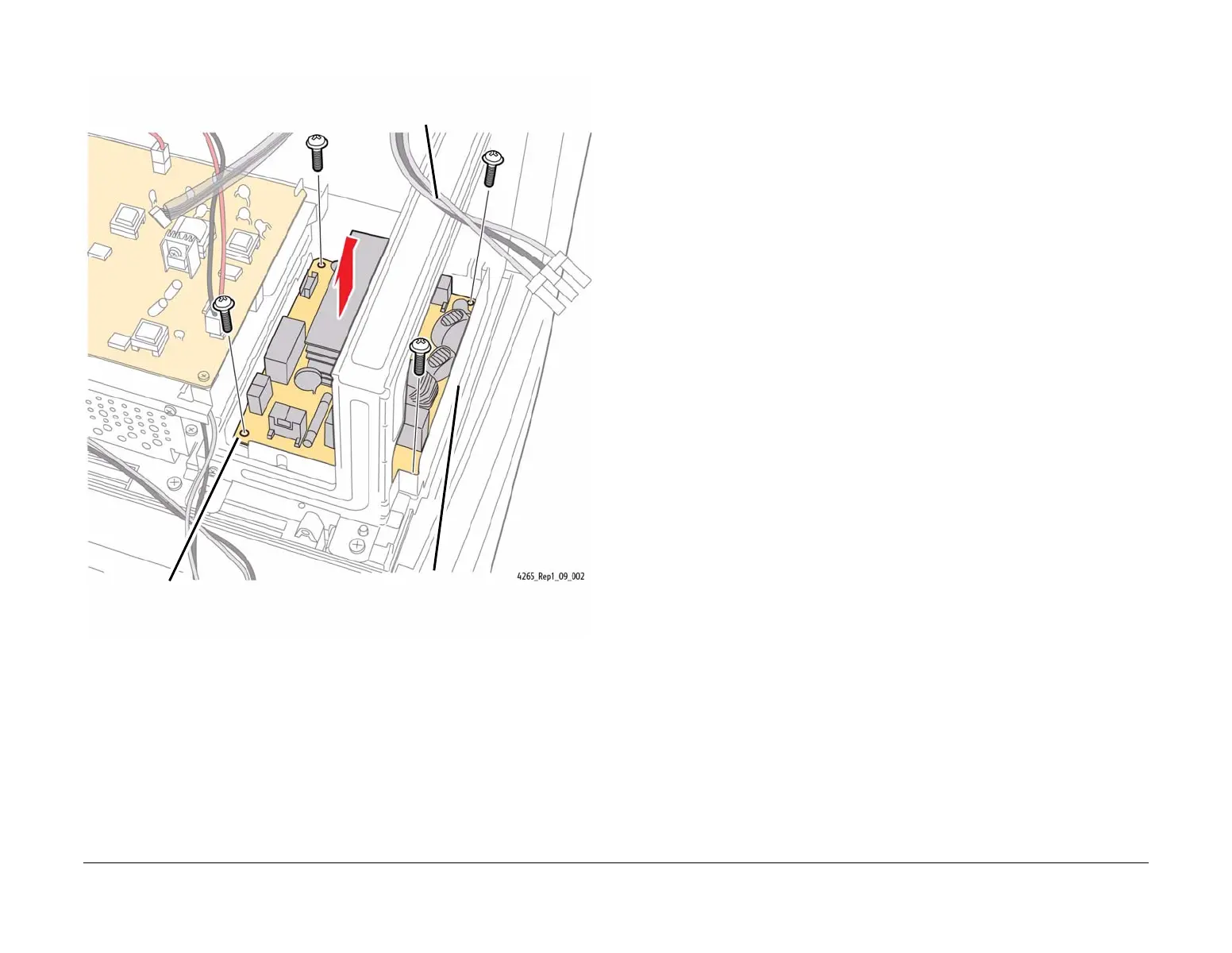

Figure 2 Removing the Power Supply Unit 2
Replacement
1. Reinstallation is the reverse of the Removal procedure.
1
Position the harness
over the bracket.
2
Remove the four mounting screws
at the corners of the PS Unit 2.
3
Remove the PS Unit 2 out
the front of the machine.
