Xerox WorkCentre 4265

January 2016
4-24
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 2.5
Repairs and Adjustments

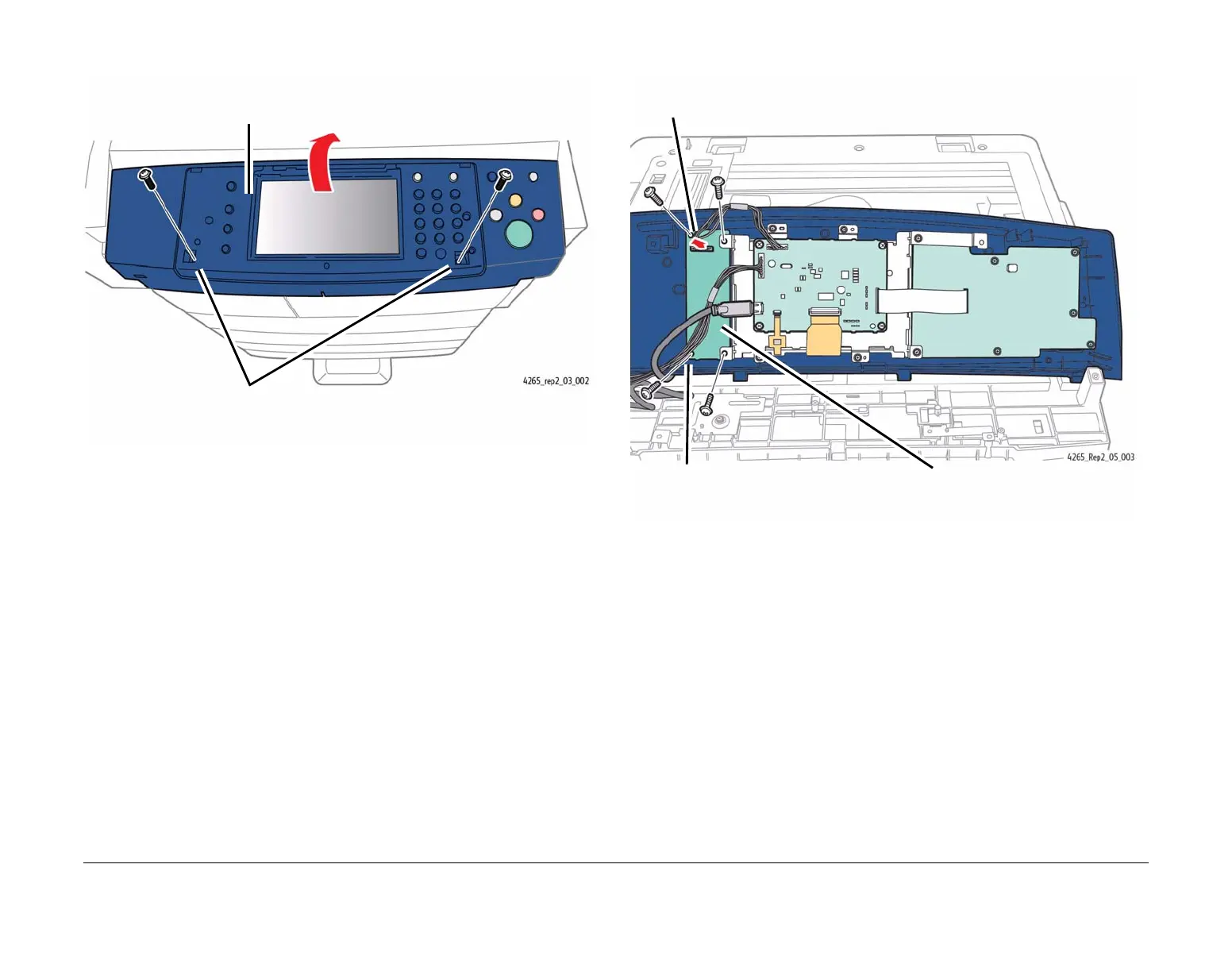

2. Detach and rotate the Housing Panel (Figure 2).
Figure 2 Detaching/Rotating the Housing Panel
3. Remove the User Interface Sub PWB (Figure 3).
Figure 3 Removing the User Interface Sub PWB
Replacement
1. Reinstallation is the reverse of the Removal procedure.
2. If a new UI Key PWB has been installed, perform the User Interface Button Test.
1
Remove the two mounting screws.
2
Lift and vertically rotate the UI Assembly, so that
the underside of the assembly is exposed.
3
Remove the UI Sub PWB.
1
Disconnect the connector.
2
Remove the four PWB mounting screws.
