REP 2.6
Repairs and Adjustments
3. Detach and rotate the UI Assembly (Figure 2).

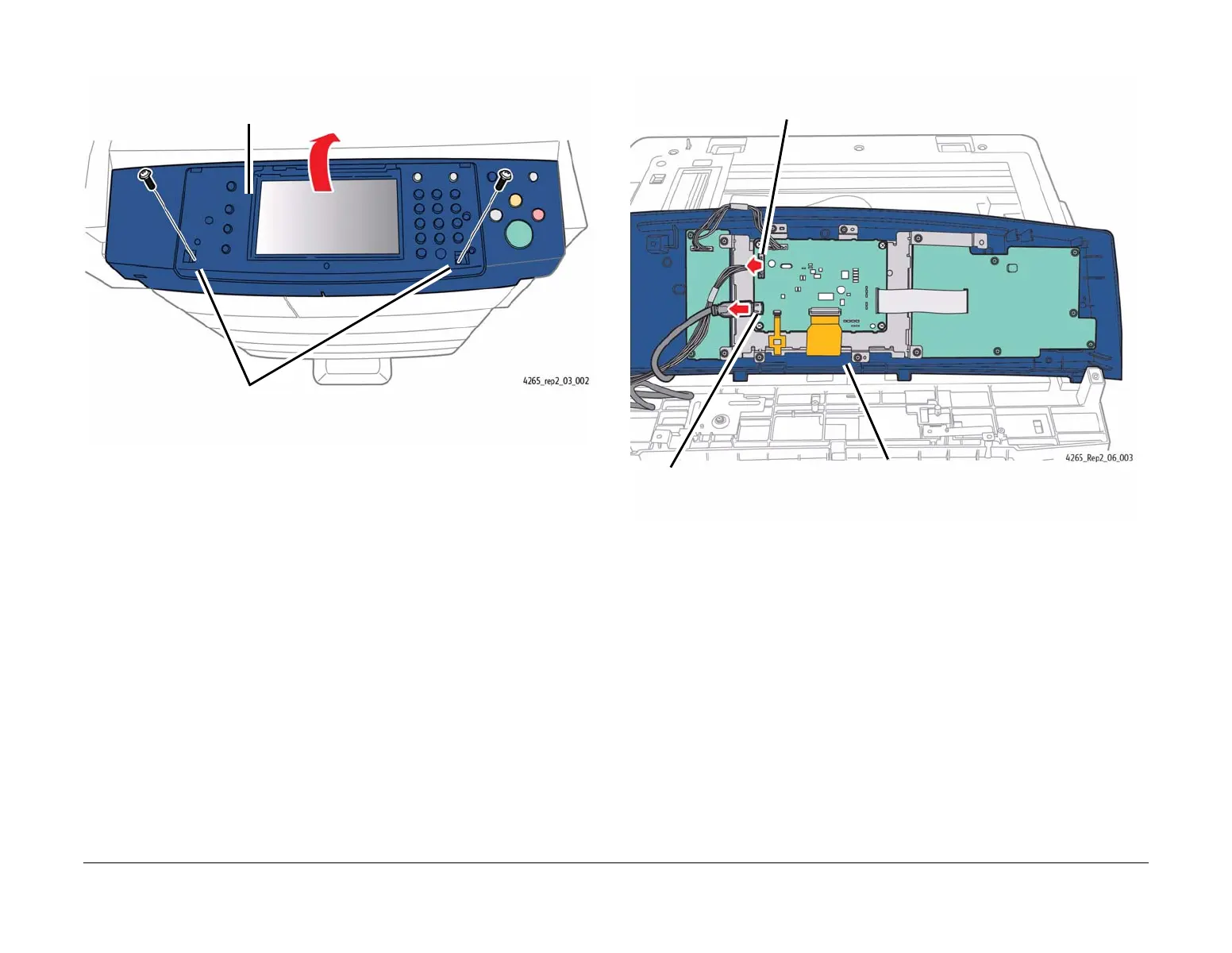

Figure 2 Detaching/Rotating the Housing Panel
4. Remove the User Interface Assembly (Figure 3).
Figure 3 Removing the User Interface Assembly
Replacement
1. Reinstallation is the reverse of the Removal procedure.
1
Remove the two mounting screws.
2
Lift and vertically rotate the UI Assembly, so that
the underside of the assembly is exposed.
3
Remove the User Interface Assembly
from the machine.
1
Disconnect the cable.
2
Disconnect P/J CN8
