Repairs and Adjustments

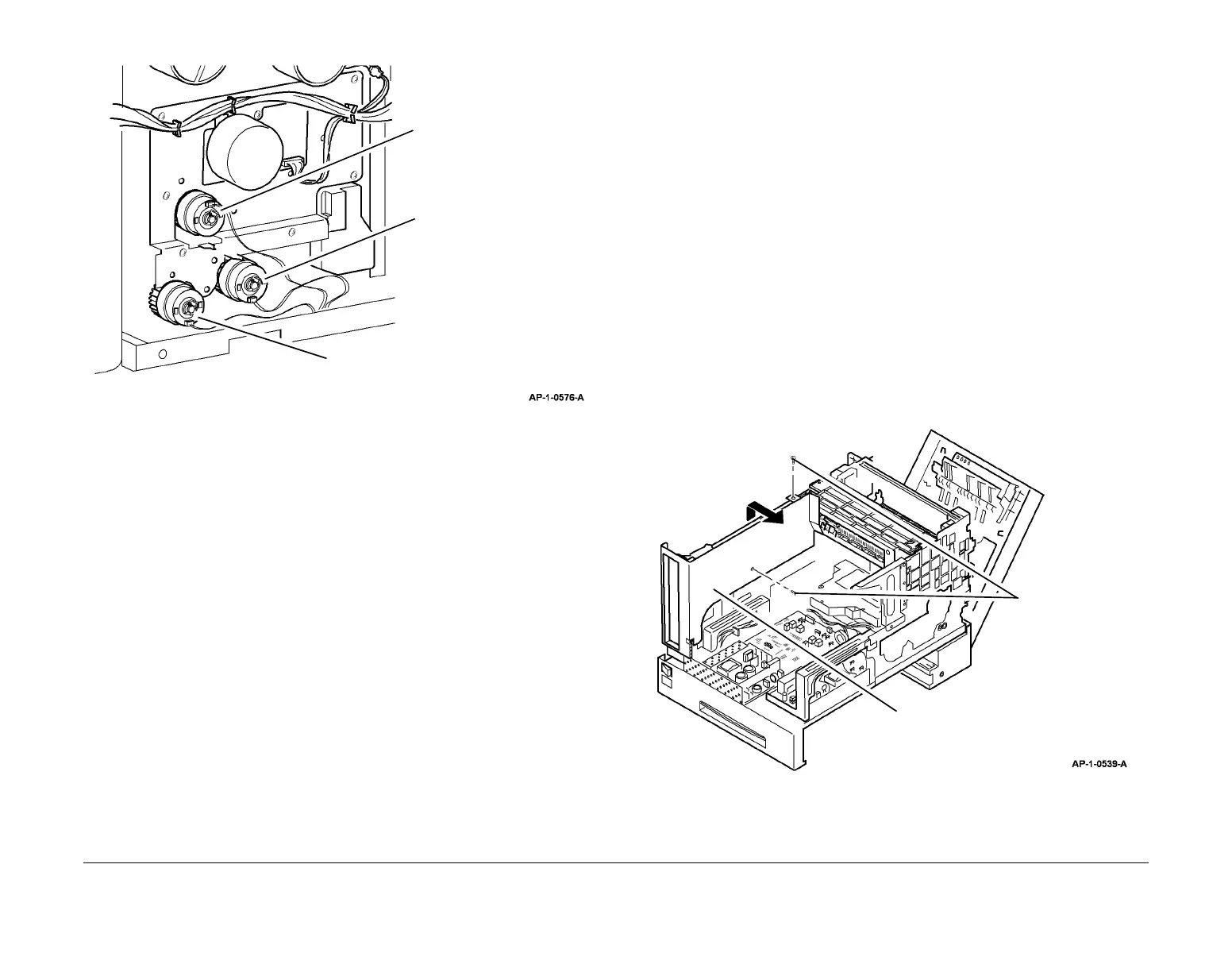

Figure 3 Clutch placement
REP 4.2 Rear Exit Cover
Parts List on PL 28.10
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
1. Remove the DADF. Refer to:
• (4150) REP 5.1
• (4250/4260) REP 5.3
2. Remove the scanner assembly, (4150) REP 14.1 or (4250/4260) REP 14.3.
3. If installed, remove the fax PWB module, (4150) PL 1.10 Item 14 or (4250/4260) PL 1.15
Item 14.
4. Remove the infill cover, (4150) PL 1.10 Item 19 or (4250/4260) PL 1.15 Item 19.
5. Remove the rear exit cover, Figure 1.
Figure 1 Rear exit cover removal
Replacement
Replacement is the reverse of the removal procedure.
Tray 1 pickup clutch:
2 black wires.
Registration clutch:
1 black and 1 red wire.
Bypass feed clutch:
2 red wires.
2
Remove the rear exit
cover.
1
Remove 3 screws.
