Xerox WorkCentre 4265 Service Manual

January 2016
4-48
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 5.7, REP 5.8
Repairs and Adjustments
Replacement
Replacement is the reverse of the removal procedure.
REP 5.8 DADF Duplex Motor Assembly (4250/4260)
Parts List on PL 5.30
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
1. Remove the DADF, REP 5.3.
2. Remove the DADF rear cover, refer to REP 5.4.
3. Remove the DADF front cover, PL 5.30 Item 12.
4. Remove the DADF document transport assembly, REP 5.7.
5. Remove the DADF duplex motor assembly, Figure 1.

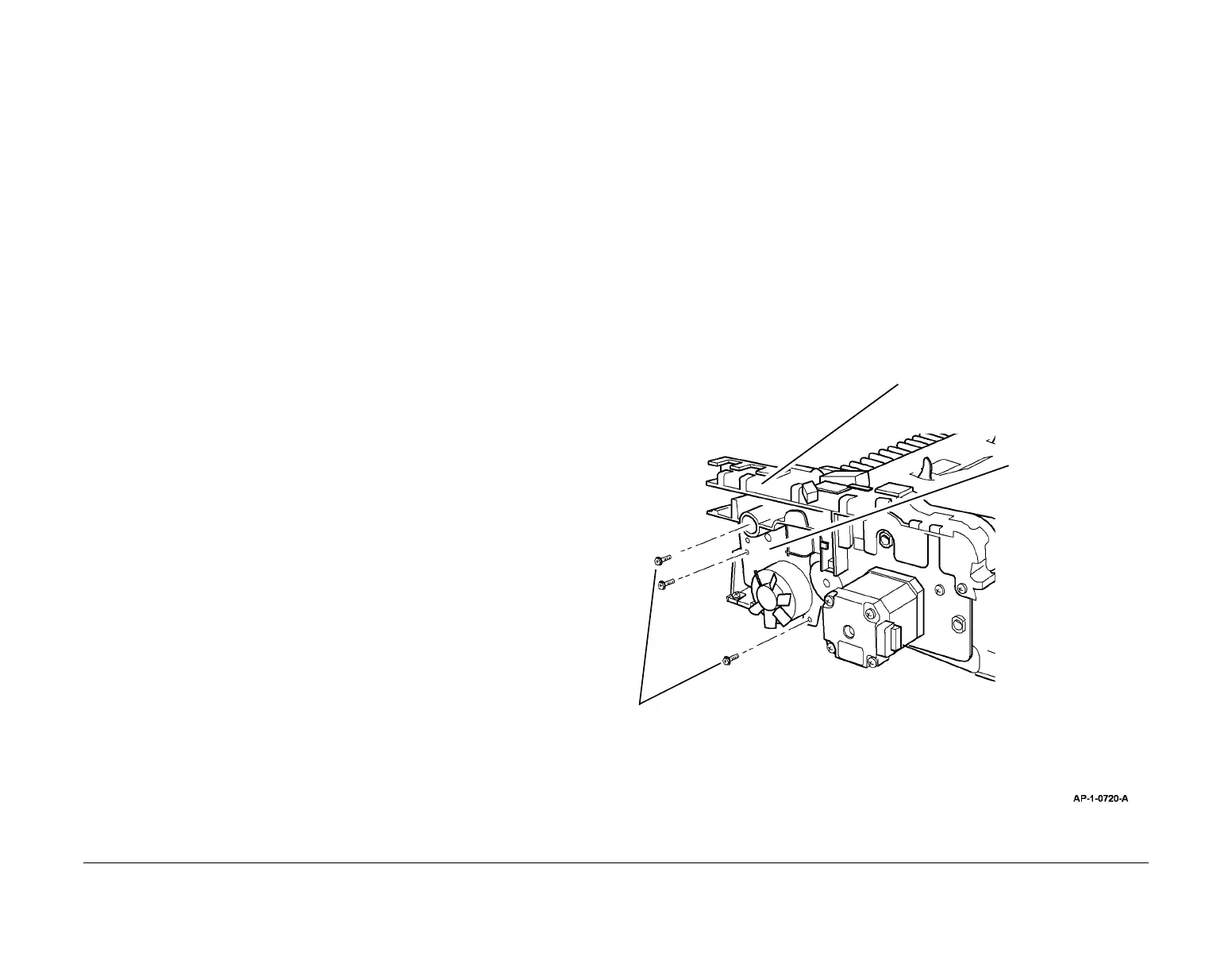

Figure 1 Duplex Motor Assembly Removal
1
Remove 3 screws.
2
Lift the end of the harness holder.
3
Remove the duplex
motor assembly.

Xerox WorkCentre 4265 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax, Email
Print Resolution (Max)	Up to 1200 x 1200 dpi
Memory (Standard)	2 GB
Memory (Maximum)	2 GB
Connectivity	10/100/1000Base-T Ethernet, USB 2.0
Paper Output	250 sheets
Scan Resolution (Optical)	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Media Sizes Supported	Legal, Letter
Mobile Printing	Apple AirPrint
Duplex Printing	Automatic
Display	7-inch color touchscreen
