Xerox WorkCentre 4265 Service Manual

January 2016
4-59
WorkCentre 4150/4250/4260WorkCentre WorkCentre 4150/4250/42604150/
REP 5.15
Repairs and Adjustments
4. Remove the DADF Pickup Assembly from the machine (Figure 2).

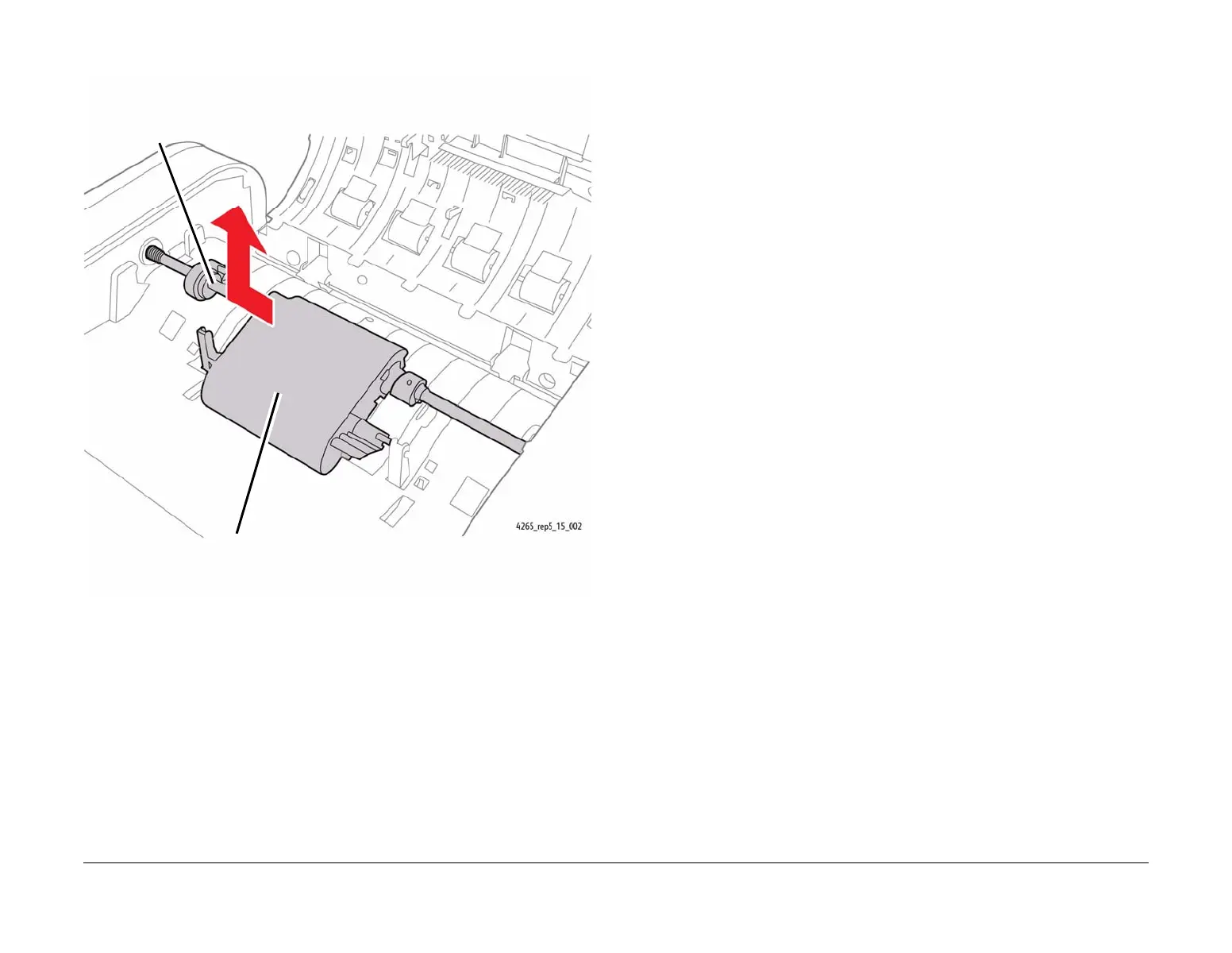

Figure 2 Removing the DADF Pickup Assembly
5. Remove the brass bearing and the retaining clip from the outboard end of the Feed Roll
Shaft.
Replacement
1. Reinstallation is the reverse of the Removal procedure.
1
Grip the Feed Roll Shaft and pull it towards the front of the machine.
This will dislocate the shaft from the bearing on the opposite end of
the shaft.
2
Lift the Pickup Assembly out of the machine.
