REP 5.17
Repairs and Adjustments

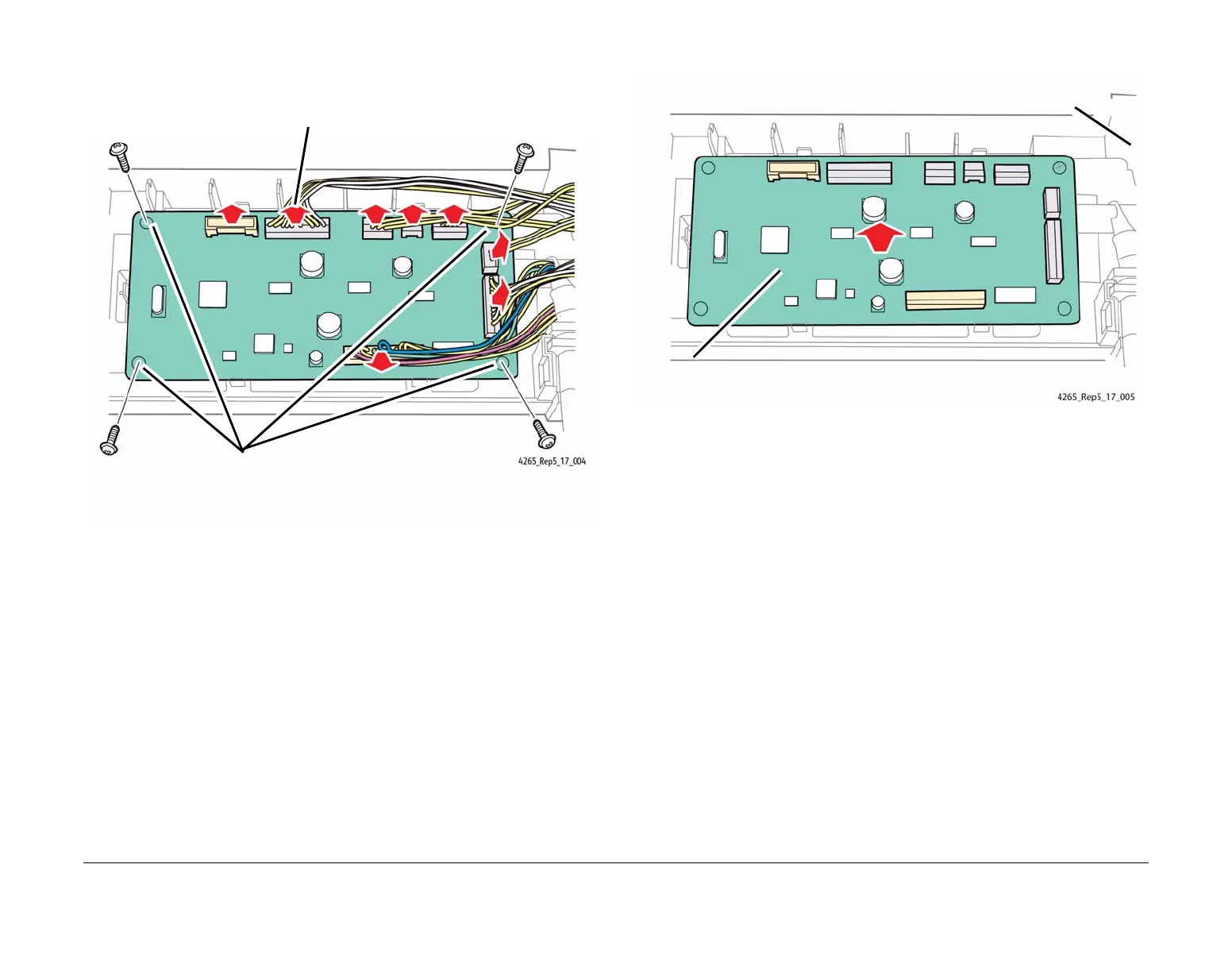

6. Disconnect the DADF PWB connectors (Figure 4).
Figure 4 Disconnecting the DADF PWB Connectors
7. Remove the DADF PWB (Figure 5).
Figure 5 Removing the DADF PWB
Replacement
1. Reinstallation is the reverse of the Removal procedure.
1
Disconnect the eight connectors on the DADF
PWB. Route the wires away from the PWB.
2
Remove the four PWB
mounting screws.
1
Remove the PWB bracket mounting screw.
2
Remove the PWB and bracket.
3
Lift the DADF PWB out of the bracket.
