Xerox WorkCentre 4265

January 2016
4-72
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 5.19
Repairs and Adjustments

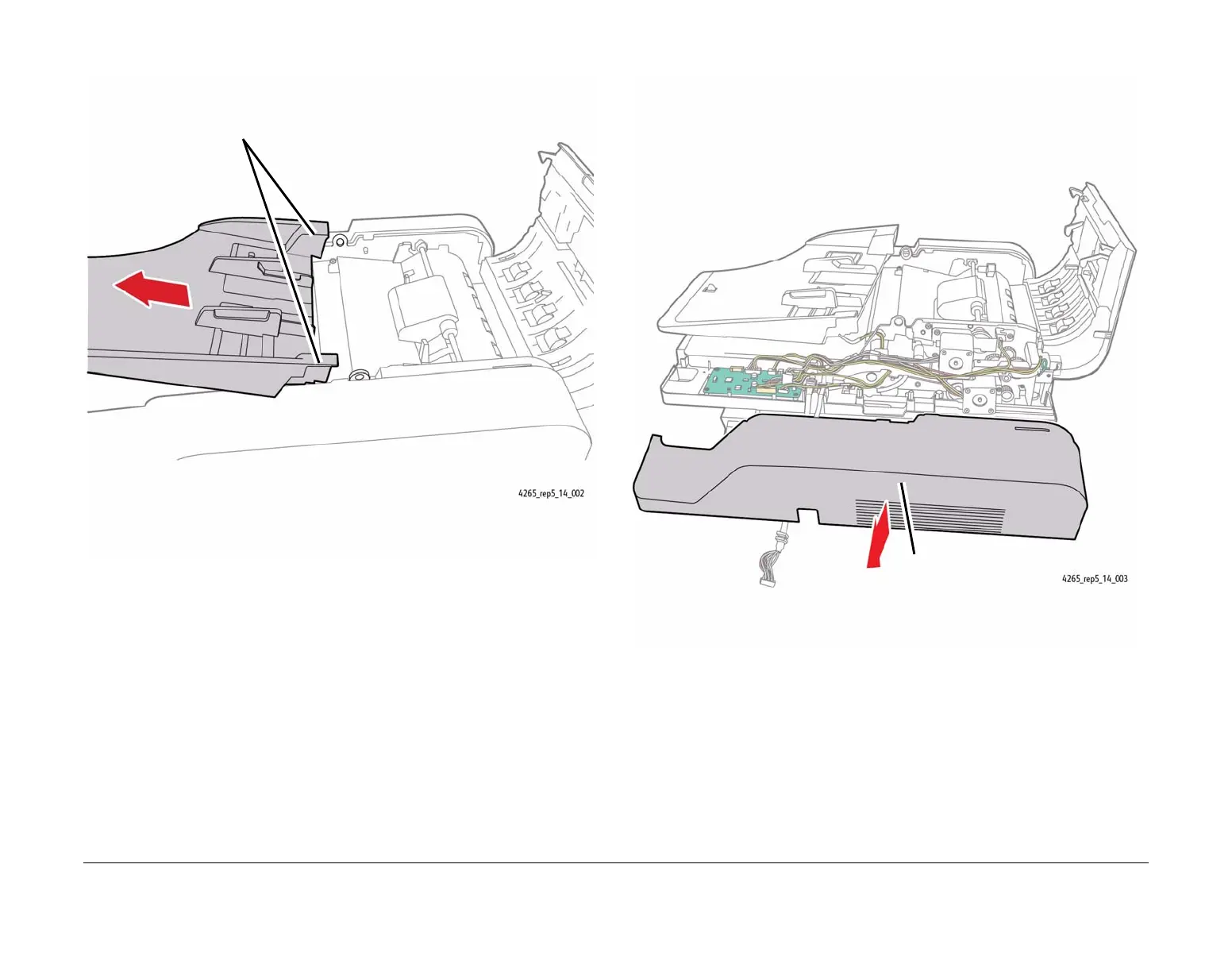

4. Dislocate the Input Tray from the DADF (Figure 2).
Figure 2 Dislocating the Input Tray from the DADF
5. Remove the Rear Cover from the DADF (Figure 3).
Figure 3 Removing the Rear Cover
6. Remove the DADF Pickup Assembly (REP 5.15).
1
Dislocate the Input Tray from the pivot bearings by
pressing inwards on each side of the tray
2
Leave the Input Tray on top of the DADF.
1
Detach the Rear
Cover from the DADF
