REP 5.20
Repairs and Adjustments
9. Remove the DADF Feed Roll Motor Assembly (Figure 6).

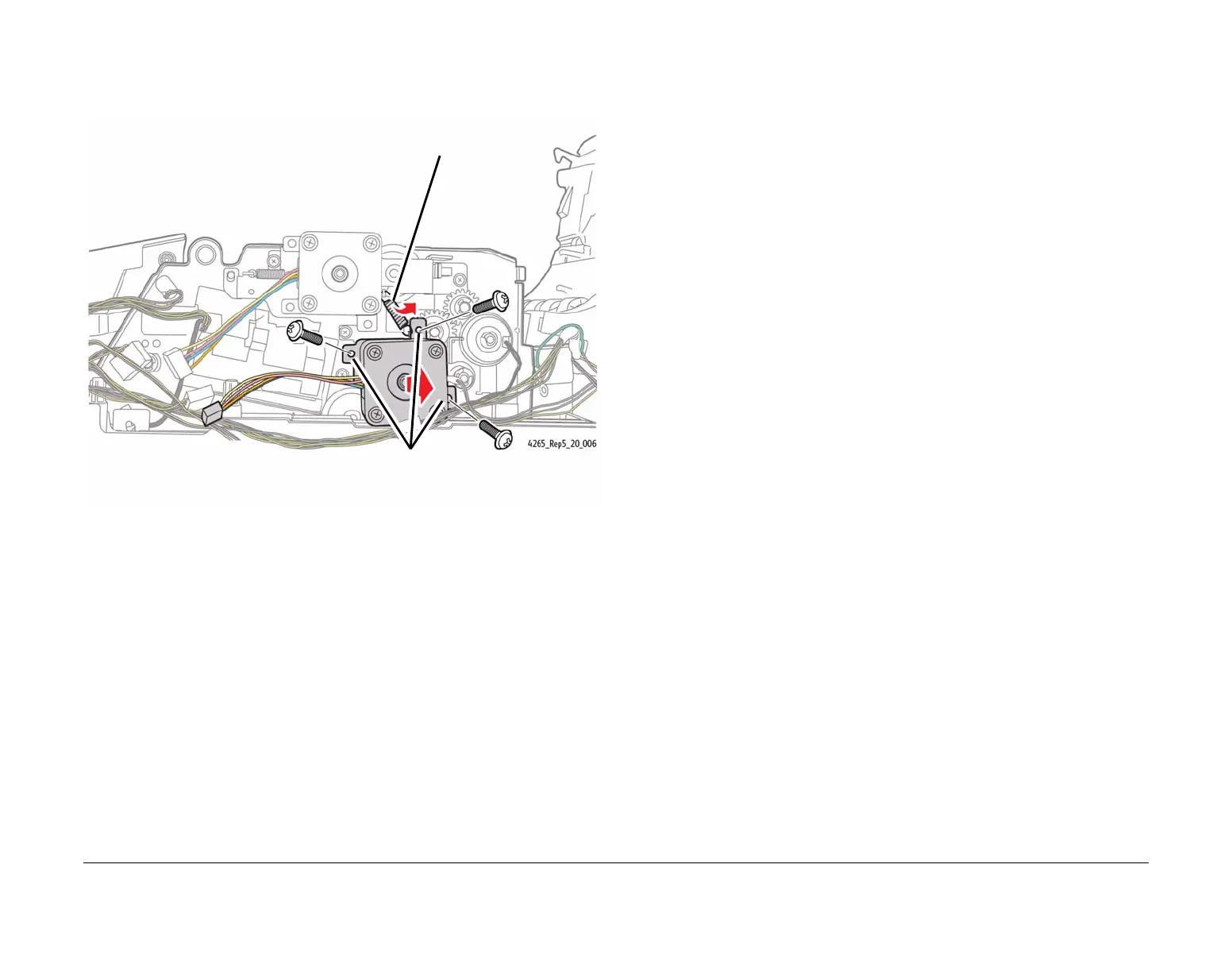

Figure 6 Removing the DADF Feed Roll Motor Assembly
Replacement
1. Reinstall the DADF Drive Feed Roll Motor Assembly:
a. Install the drive belt onto the Feed Roll Motor gear.
b. Loosely install the three mounting screws.
c. Install the belt tension spring.
d. Tighten down the three mounting screws.
2. Reinstallation is the reverse of the Removal procedure.
1
Remove the belt
idler spring.
3
Remove the DADF Feed Roll
Motor Assembly.
2
Remove the three motor
mount screws.
