Xerox WorkCentre 4265 Service Manual

January 2016
4-83
WorkCentre 4150/4250/4260WorkCentre WorkCentre 4150/4250/42604150/
REP 5.22
Repairs and Adjustments
REP 5.22 DADF Exit Sensor (4265)
Parts List on PL 5.59
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
CAUTION
Do not allow the optics cavity to become contaminated. Contamination of the optics cavity can
cause image quality defects.
1. Power off the machine. Disconnect the power cord.
2. Remove the DADF (REP 5.3).
3. Invert the DADF on a clean table top.
4. Partially detach the Document Pad to expose the Lower Exit Frame (Figure 1).

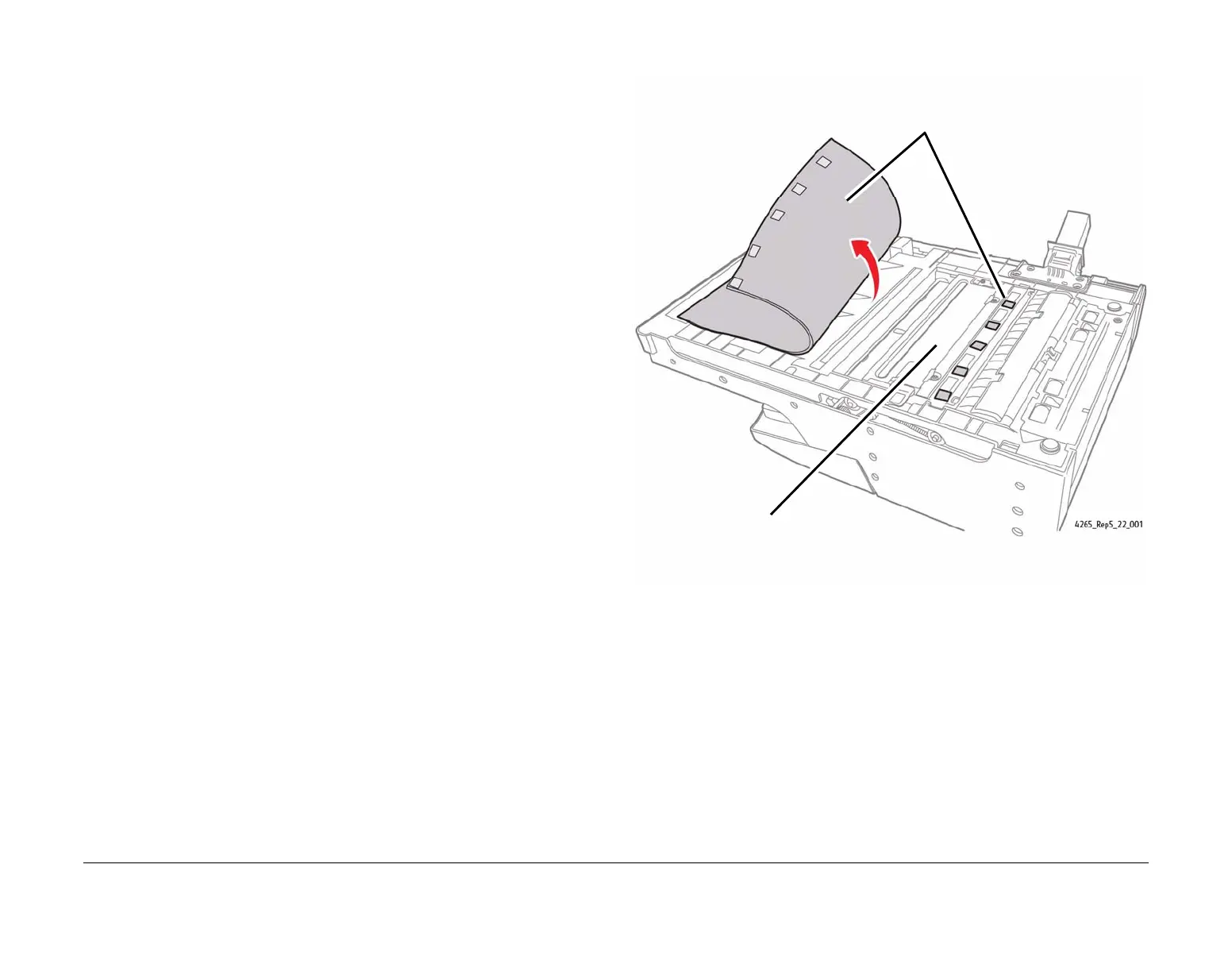

Figure 1 Exposing the Lower Exit Frame
1
Partially detach the Document Pad
by pulling it off the attachment points.
Lower Exit Frame
