Xerox WorkCentre 4265 Service Manual

January 2016
4-95
WorkCentre 4150/4250/4260WorkCentre WorkCentre 4150/4250/42604150/
REP 5.31
Repairs and Adjustments

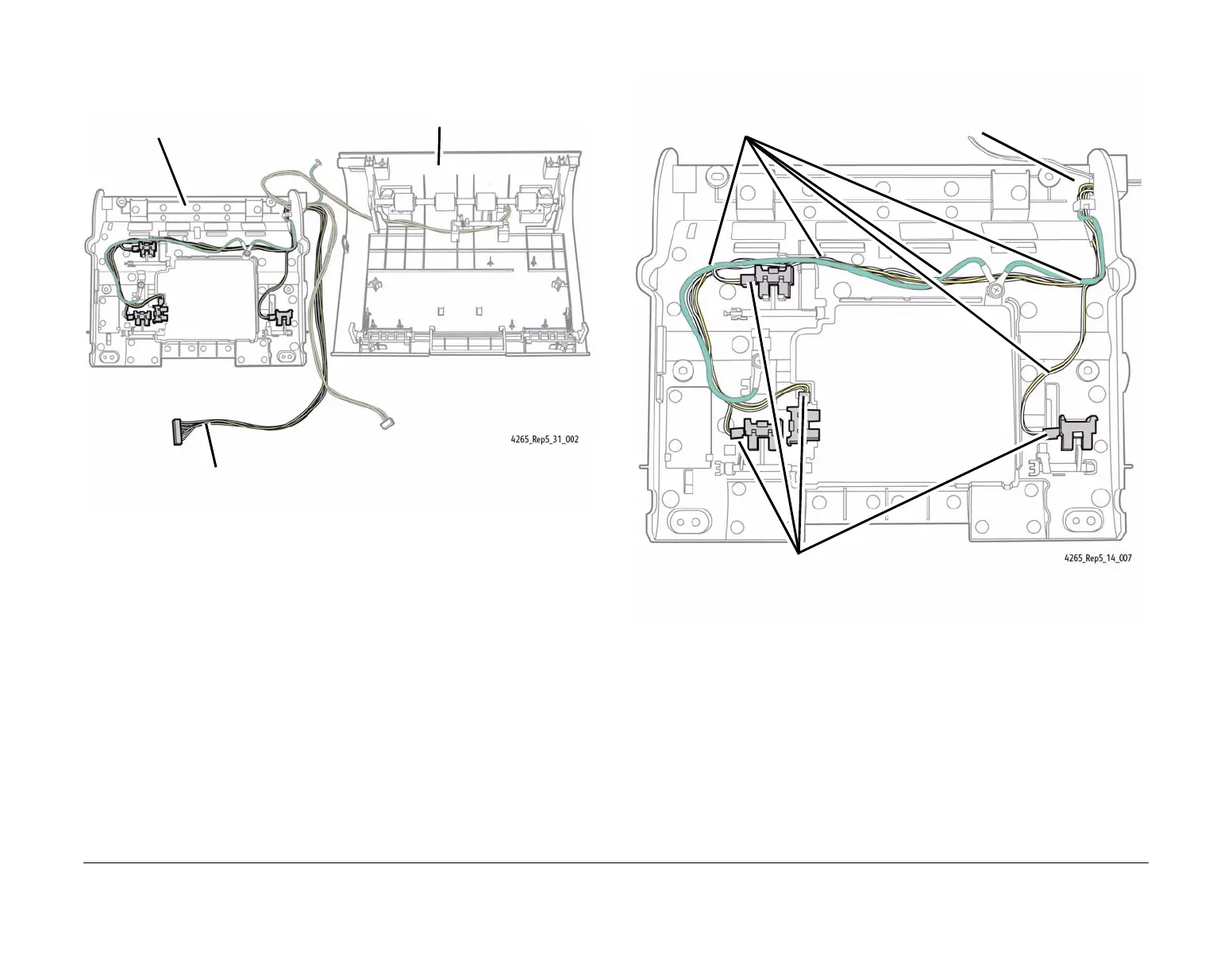

4. Set the Top Cover and the Inner Cover on a clean table top as shown, and locate the
DADF Harness (Figure 2).
Figure 2 Locating the DADF Harness
5. Remove the DADF Harness from the Inner Cover (Figure 3).
Figure 3 Removing the DADF Harness
Replacement
1. Reinstallation is the Reverse of the Removal procedure.
Inner Cover
DADF Harness
Top Cover
4
Remove the
DADF Harness.
3
Disconnect the four
connectors.
2
Remove the DADF Har-
ness from the wire guides.
1
Route the DADF Harness
through the hole in frame.

Xerox WorkCentre 4265 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax, Email
Print Resolution (Max)	Up to 1200 x 1200 dpi
Memory (Standard)	2 GB
Memory (Maximum)	2 GB
Connectivity	10/100/1000Base-T Ethernet, USB 2.0
Paper Output	250 sheets
Scan Resolution (Optical)	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Media Sizes Supported	Legal, Letter
Mobile Printing	Apple AirPrint
Duplex Printing	Automatic
Display	7-inch color touchscreen
