Xerox WorkCentre 4265 Service Manual

January 2016
4-118
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 7.5
Repairs and Adjustments
8. As necessary, remove the stack height sensor or paper empty sensor, Figure 5.

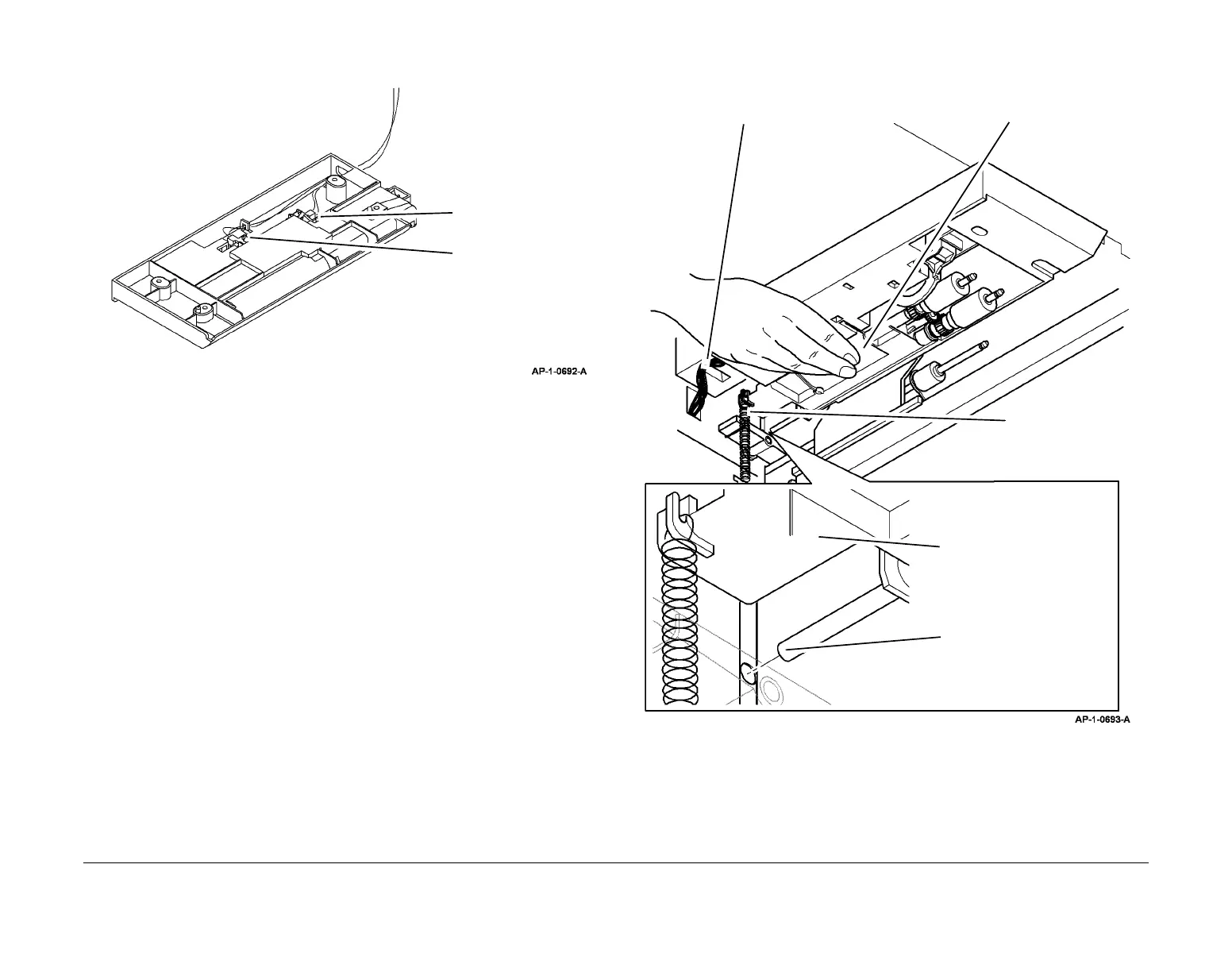

Figure 5 Sensors
Replacement
1. Replacement is the reverse of the removal procedure. To reinstall the HCF feed assem-
bly, refer to Figure 6.
Figure 6 Reinstalling the feed assembly
Paper empty sensor.
Stack height sensor.
3
Hold the feed head.
4
Locate the drive shaft
through the hole in the
machine frame.
5
Reinstall the HCF feed
assembly.
1
Put the harness
through the paper trans-
port assembly.
2
Reinstall the feed
head support spring.
