REP 7.7
Repairs and Adjustments
11. Remove the Feed Head spring and retard roll (Figure 2).

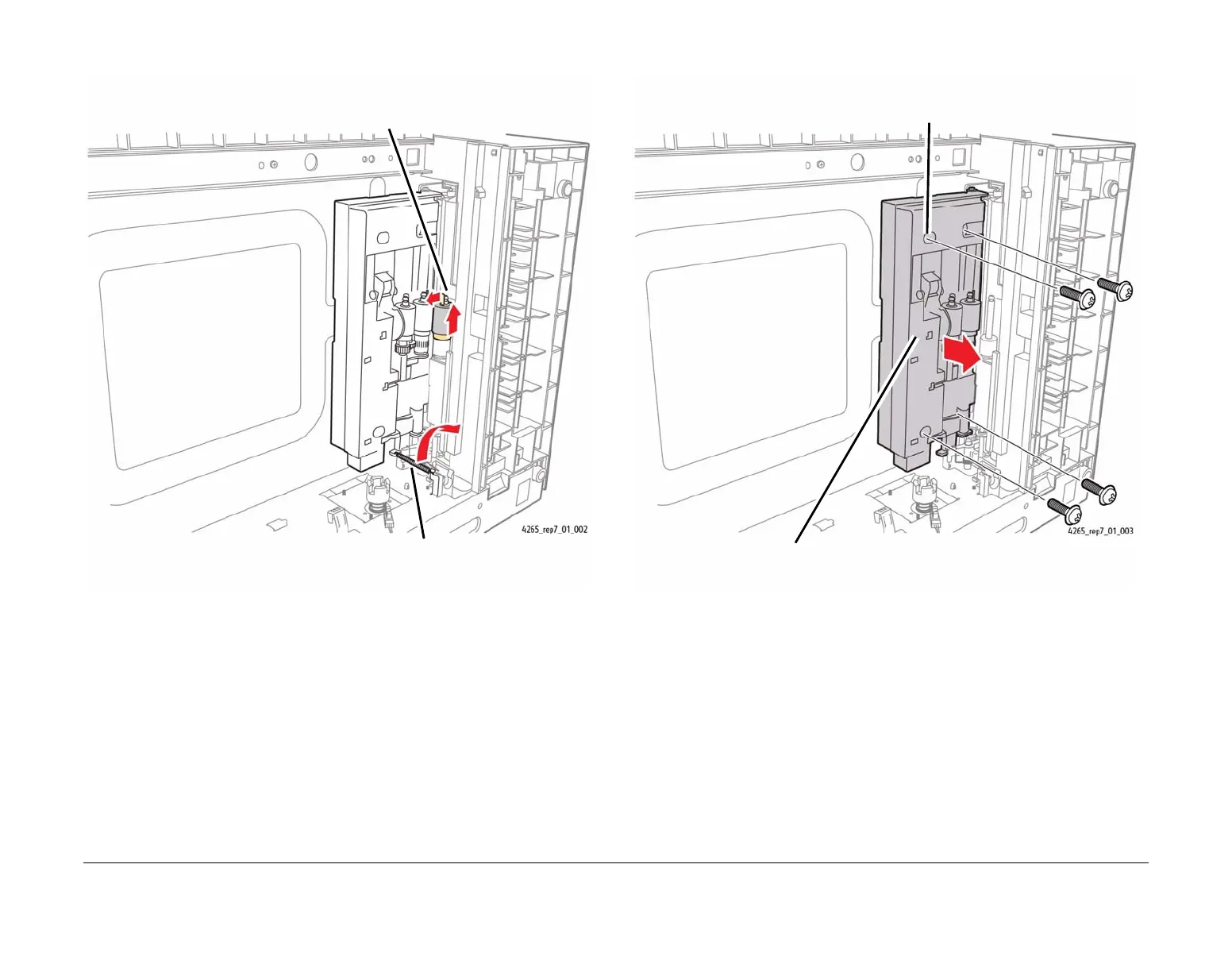

Figure 2 Removing the Feed Head Spring and Retard Roll
12. Remove the Tray Feed Assembly (Figure 3).
Figure 3 Removing the Tray Feed Assembly
1
Remove the spring.
2
Remove the plastic retaining clip and
remove the Retard Roll.
1
Remove the four mounting screws.
2
Remove the Tray Feed Assembly.
