REP 8.3
Repairs and Adjustments
Replacement
1. Insert the wire harness back into the opening in the Back Panel prior to reinserting the
Paper Transport Assembly back into the machine (Figure 4).

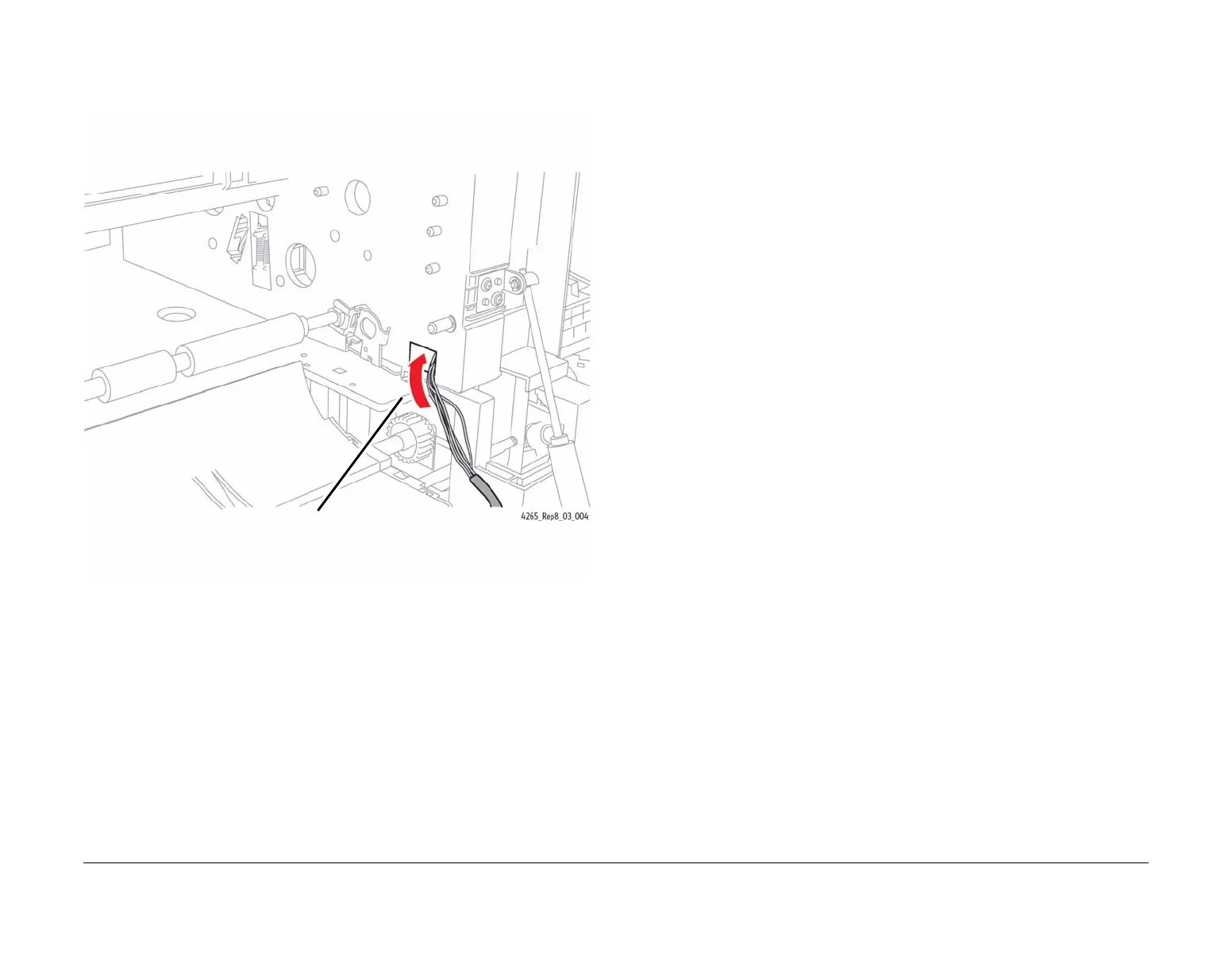

Figure 4 Inserting Wire Harness through the Back Panel
2. Reinstallation is the reverse of the Removal procedure.
1
Insert the wire harness into the
opening in the Back Panel.
