REP 10.3
Repairs and Adjustments
4. Remove the Duplex Solenoid Assembly (Figure 3).

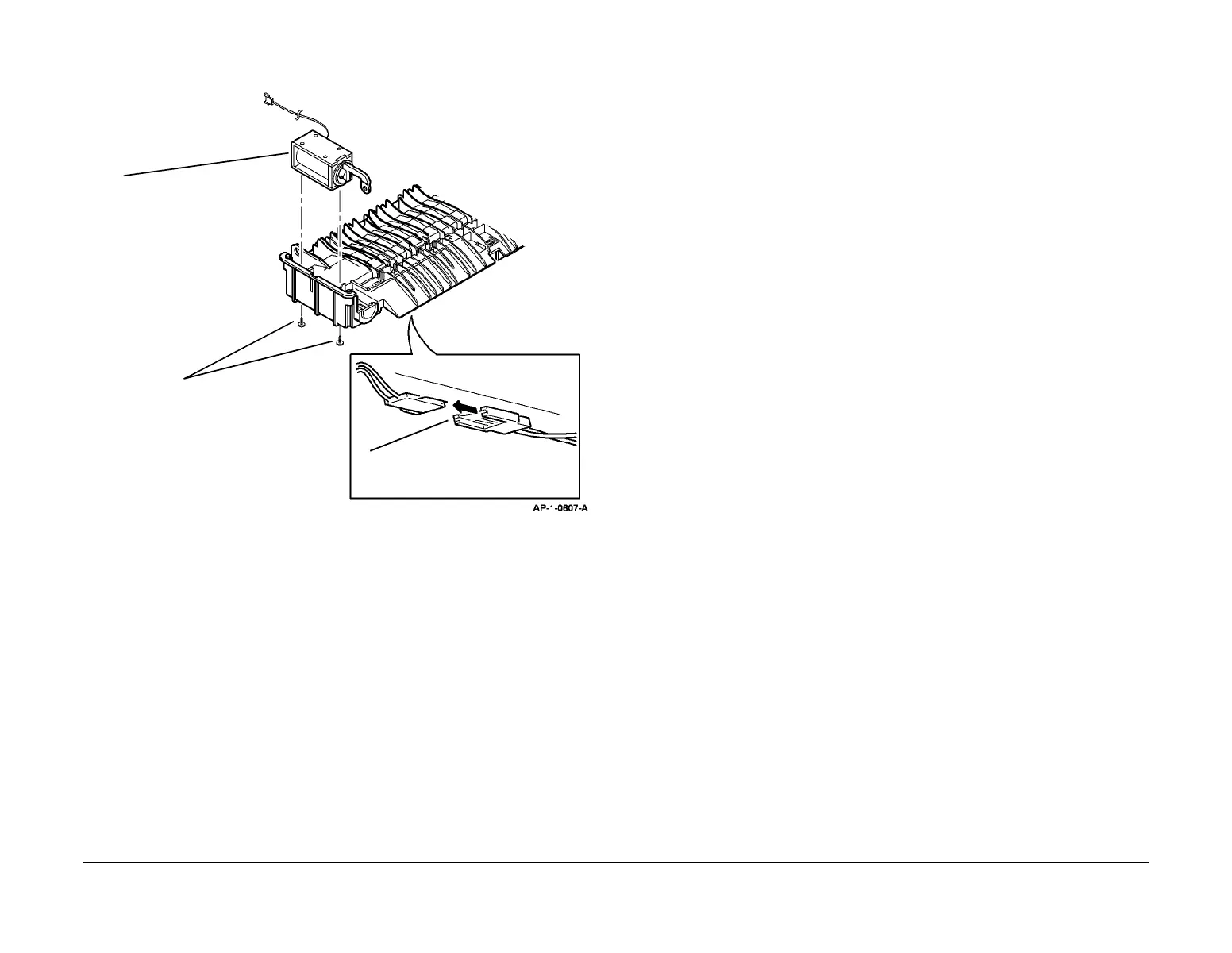

Figure 3 Removing the Duplex Solenoid Assembly
Replacement
Replacement is the reverse of the Removal procedure.
1
Disconnect the inline connector.
2
Remove 2 screws.
3
Release the clip then
remove the duplex
solenoid assembly.
